Vertex Engineers & Associates Airoli, Navi Mumbai, Maharashtra

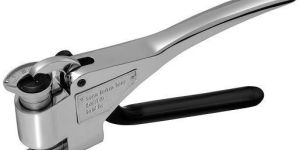

Webster Hardness Tester is a portable instrument which can perform on-site hardness testing on soft materials. By a quick and easy test, the hardness value can be read out directly with a simple clamp, in accordance with Standard ASTM B647. Very useful tool for testing Aluminium Profiles and Sheets.

Finishing : Chrome Finish

Packaging Type : ABS Plastic

Overall Weight : 1 Kg

Usage : Hardness Testing

Specialities : Easy To Use, Proper Working, High Strength

Brand Name : VERTEX

Material : Stainless Steel

Certification : ISO9001:2015 Certified

Color : Grey

Display Type : Analog

Driven Type : Mechanical

Warranty : 2 Years

Country of Origin : India

Corrosion Resistance : Yes

Operating Type : Manual

Measurement Range : 0-20

Accuracy : 1

After-Sales Service Provided : Yes

Hardness Scale : Webster HW

Measurement Deviation : 1

Test Force : 1 Kg

These machines are designed & developed considering the component size to be tested on the machines as well as load & scales to be used by the customer. These machines are manually operated, simple in design and easy to operate. Rockwell Hardness Testers are available in various models like VRS, VRS-150, VRB, VRB-250, VSM. These models strictly confirm to IS:1586:2000, BS:891 part I & II, ASTM-E18 for Rockwell test and IS:2281:1983, BS:240, ASTM-E10 for Brinell test and IS:1586:2000, ASTM for Rockwell Superficial test.

These machines are designed & developed considering the component size to be tested on the machines as well as load & scales to be used by the customer. These machines are manually operated, simple in design and easy to operate. Rockwell Hardness Testers are available in various models like VRS, VRS-150, VRB, VRB-250, VSM

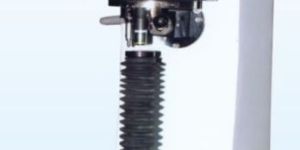

OVERVIEW : VERTEX make Vickers / Vickers cum Brinell hardness testers are suitable for testing very wide range of materials. From very soft material such as lead upto hard material like hardened steel, as well as thin metal strips & case hardened jobs can be tested o these machines since the load applied is very small. These machines are available in various models like VB-50, VB-50-S, VB-120-S, VB-250 and VB-250-S which are highly precise and easy to operate as well. A push button system is provided for the selection of loads. Loading cycle and penetration of the indentor in the job starts. Unloading is accomplished through handle and diagonal / diameter of impression directly appears on the screen. A built in optical system with graduated readout with micrometer helps the Operator to measure the impression directly on the projection screen. This machine confirms to IS-1754-1986 for Vickers and IS-2281-1983, BS-240 for Brinell test.

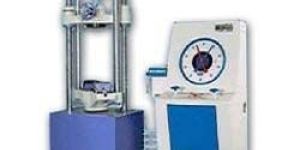

OVERVIEW: A Universal testing machine, also known as universal tester, material testing machine and material test frame is used to test the tensile stress and compressive strength of materials. It is named after the fact that it can perform many standard tensile and compression tests on materials, components and structures. Once the machine is started it begins to apply an increasing load on the specimen. Throughout the tests the control system and its associated software record the load and extension or compression of the specimen.  Machines range from very small table top systems to ones with even over 53MN capacity   FEATURES: Loading Accuracy as high as +1% • Straining at variable speeds to suit a wide range of materials. • Motor driven threaded columns for quick effortless adjustment of lower cross-head-to facilitate rapid fixing of test specimen. • High reading accuracy due to large sized design of dial. • Wide range of standard and special accessories, including load stabilizer. • Easy change from plain to threaded and screwed specimens. • Large effective clearance between columns enables testing of standard specimens as well as structures. • Simple controls for ease of operation. • Safe operation ensured be means of safety devices. • Fully enclosed and protected pendulum. • Robust staining frame of an extremely rigid construction. • Continuous roll autographic recorder supplied as standard to enable study of the behaviour of materials

Used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc. in industries of petroleum, shipbuilding, power station, and machine manufacturing. Materials measured: any hard materials, including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron and other ultrasonic wave well-conductive materials.

Display Type : Digital

Brand Name : Vertex

Application : Textile Industry

Color : Black

Power : 5 kW

Accuracy : 0.01 mm

OVERVIEW : In simpler terms tear resistance (or tear strength) is a measure of how well a material can withstand the effects of tearing. More specifically it is how well a material (normally rubber) resists the growth of any cuts when subjected to tension, it is usually measured in kN/m. Materials with low tear resistance tend to have poor resistance to abrasion and when subjected to force will quickly fail (this includes hard materials, since hardness is not related to tear resistance). The equipment is designed to directly read gF (TearForce) per one piece. The Tear Force thus obtained can be converted into Tear Energy, Tear Index or Tear Factor by applying appropriate formulae. FEATURES : -> Incision Knife of hardened and ground alloy steel -> Precision Clamps with controlled jaws, made of aluminium -> Supplied with template to cut 63 mm x 63 mm -> Extra light, low friction pointer with friction lining of textile material. SPECIFICATION:- -> The dial of the instrument has three scales marked on it: -> A scale : 0-100 gF (when using 16 pieces) -> B scale : 0-200 gF (when using 8 pieces) ->  C scale : 0-400 gF (when using 4 pieces) -> Suitable for Testing as per following Standards TAPPI: T 414 om-98 IS: 1974-1990 FCBM: 6:91

For mounting the specimens with Bakelite powder Specimen is kept face down in the Cavity & bakelite Powder is Hot moulded around it with hydraulic pressure.

Both polish papers or polishing Cloth can be clamped on the rotating disc. Provision for waterflow & control. No of Disc - One Disc diameter 20 cms. Operating on - 220V, Single phase , AC Solid state power supply for motors is inside the machine. Drive motor - 0.25 HP Speed - Continuously variable upto 1500 RPM Max.

Country of Origin : Made in India

Material : Steel

Color : Silver

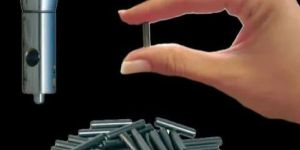

Application : Shear Pin type Hardness Testing

This equipment is intended to evaluate the rub proofness of prints on paper or board. It can also be used to measure evaluate colour transfer from printed coated surface during rubbing. The application can be extended for measurement of abrasion resistance of some plastic materials aluminum foils. Principle : in this machine, 2 samples of the same substrate are rubbed against each other in the same plane, under a constant pressure of 2 p.s.i and at a fixed speed of 60 rpm. The number of rubs are recorded using a non-contact type digital counter. inference : this machine works as a great comparator of the variations in print quality between various batchesor various suppliers higher rub resistance = better print quality. Lower rub resistance = poor print quality.

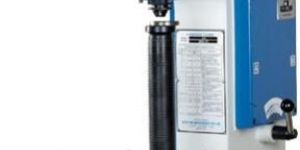

Rockwell Hardness Testers are suitable for checking hardness of metals and their alloys. Flat, Round as well as irregular types of components can be tested on these machines. These machines are designed & developed considering the component size to be tested on the machines as well as load & scales to be used by the customer. These machines are manually operated, simple in design and easy to operate.

Rockwell Hardness Testers are suitable for checking hardness of metals and their alloys. Flat, Round as well as irregular types of components can be tested on these machines. These machines are designed & developed considering the component size to be tested on the machines as well as load & scales to be used by the customer. These machines are manually operated, simple in design and easy to operate.

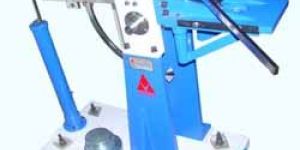

The specimen is clamped on a fixture and is pierced with the help of a pendulum released from 90 Degree position.The pendulum head is made pointed in a pyramid shape. Different weights are provided in the pendulum for different scales. A pointer is fitted in the pendulum which gives the reading in a calibrated scale.

Screen Fine ground glass.Dia. 300 mm. Rotatable 360 degrees. Measuring 1 degree 260 mm etched scale on X & Y axis LC 0.01 MM Stage 125 x 125 mm Mechanical stage. Fitted with DRO On both X & Y axis. X Micrometer 25 mm LC 0.001 mm Y Micrometer 25 mm LC 0.001 mm Easy movement & adjustment Magnification 15x 20x 30X 40X Illumination Transmitted light with One 12V 100W Tungstan Halogen Lamp. The illumination can be increased or decreased Focusing ,By ack & Penion movement of Stage , Instrument size 370 W x 700 H x 630 D mm ,Operating voltage 220V AC, 50HZ. Net weight 45 Kgs

OVERVIEW This test is frequently used to quickly evaluate package seal strength during the manufacturing process and at various stages of the package's life cycle. This test method provides an indicator of the burst strength of a package, where the burst will normally occur in one or more areas of the seal. An indicator of the minimum burst strength may be of importance to the package manufacturer and end user in ensuring adequate package integrity. ElectroPneumatic model with constant rate of travel. Suitable for testing the Seal Integrity of Liquid / Gas Filled - Pouches / Saches / Blisterpacks. Suitable for 3 ml – 1,500 ml or larger packs   FEATURES : -> Digital model with load cell based system -> Large LCD Display (38 X 103 mm) . -> Very Low Noise Level. -> Embedded Push Buttons on control panel. -> Peak hold facility for registration of maximum reading   SPECIFICATION : -> Capacity - 300kgf -> Least Count - 0.1kgf -> Accuracy (0.2% of full scale) - 0.6 kgf     Note - This machine requires air supply of 7 kg/cm² which has to be provided by the purchaser .

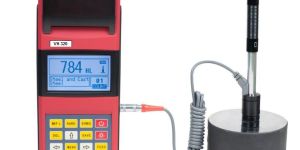

OVERVIEW : • Wide measuring range. It can measure the hardness of all metallic materials. • Large screen LCD, showing all functions and parameters. With EL background light. • Direct display of hardness scales HRB, HRC, HV, HB, HS, HL and three types of strength values immediately. • Test at any angle, even upside down. • Large memory could store 100 groups (Relative to average times 32～1 ) information including single measured value, mean value, impact direction, impact times, material and hardness scale etc. • Battery information showing the rest capacity of the battery and the charge status. • Original imported high speed thermal printer support the immediate printing function. • It can save data permanently. • Seven impact devices are available for special application. Automatically identify the type of impact devices, and with the user calibration function. • Ni-MH rechargeable battery as the power source. Charge circuit integrated inside the instrument. Continuous working period of no less than 150 hours (EL off and no printing). • Auto power off to save energy. • Portable Hardness Tester VH 320  • Excellent after-sale service system for high quality products--two years’ warranty. Easy to buy and comfortable to use.

Seven impact devices are available for special application. Automatically identify the type of impact devices, and with the user calibration function. Test at any angle, even upsid down,Large memory could store 100 groups (Relative to average times 32～1) informaon including measure value, mean value, impact direction, impact times, material and hardness scale etc.

Load is applied to the specimen and a standard test bar in a linear direction through a special Brin ell Ball of 10 mm dia. by a hammer blow. With the impact load being consistent, the extent of indentations obtai ned on the specimen and the test bar depend on their hardness, harder material gives less depth of indentation. The two diameters of indentations are measured by a special “Magnifiscope" measuring magnifier supplied with the tester. By referring to the table provided, the hardness of the specimen can be determined

The Pendulum is mounted on antifriction bearings. It has two starting positions, the upper one for Charpy & the lower one for izod testing. On release, the pendulum swings down to brake the specimen and the energy absorbed in doing so is measured as the difference between the height of drop before rupture and the height of rise after rupture of the test specimen and is read from the maximum pointer position on the dial scale.

The Box Compression Test measures the compressive strength of packages such as boxes, drums, and cans. It usually provides a plot of deformation vs compressive force. It is commonly used to evaluate shipping containers made of corrugated fiberboard as well as wooden boxes and crates. Industrial and consumer packages other than boxes can also be subjected to compression testing: drum, pail, bottle, tub, etc. Package components are also evaluated for compression resistance. Method of conducting the test as described in several published standard test methods is to compress a box at a constant rate of 12 inch (12.5 mm) per minute between two rigid platens. The test can be conducted on empty or filled boxes, with or without a box closure. Conditioning to standard temperature and humidity is important.

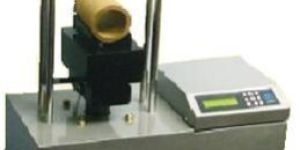

The core compression strength of core pipes is the maximum compressive force that a test piece collapses under constant load. Pneumatically operated piston to apply the pressure. Maximum pressure to crush the test sample recorded on a gauge with peak pointer. Has adjustable testing area to accommodate specimen sizes and shapes.

Microprocessor based pocket type Moisture meter with LCD display and rugged housing so that the pins on the end of the instrument can be pressed into the material to be measured .
