Dinesh Plastic Products Chhapra, Navsari, Gujarat

Features of DPP Sight Glass Valve Three-piece design, sturdy construction. With full view window of tonghened glass tube. Available with various elastomers or PTFE seals to handle aggressive chemicals. Available in screwed end onnections also.

Three-piece design, sturdy construction. With full view window of tonghened glass tube. Available with various elastomers or PTFE seals to handle aggressive chemicals.

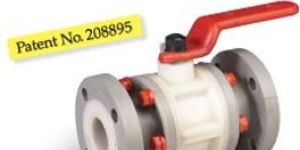

Features of DPP 3-Piece PVDF Lined PP Ball Valve We have developed a Ball Valve that is chemically resistant to most ot aggressive chemicals up to 120°C temp, and economical compared to Solid PVDF Ball Valve and Teflon Lined metallic valves. This valve has a Solid PVDF Body, Solid PVDF Ball, PVDF coated (Moulded) SS-316 stem, only two flanged ends have inner liners (moulded 3.75 mm to 5.5 mm thick) of PVDF and on this liners, Polypropylene flanged ends are moulded, So all chemicals comes in contact with PVDF and Teflon Materials only. Body to ends sealing & stem sealing O' Rings are of pure Teflon, To compress these Teflon 'O' Rings firmly, a steel ring insert of 5mm thick is moulded in flanged ends. SS-316 inserted stem, metal inserted handle and stopper ensures sturdiness and long service life. We use virgin imported PVDF and Polypropylene materials of grades that are internationally popular, especially used for manufacturing of valves and fittings.

Free floating ball allows maximum flow through valve. The only moving part is the ball, so maintenance is reducednil. The solid polypropylene PVDF ball seated on elastomer seatgives no chance for leakage. Ball fully supported by guide ribs for full flow & minimum turbulence. Available with various elastomer seats like Neoprene, Hyplon, EPDM, Viton for compatibility with different chemicals. Tight shut-off achieved at a minimum of 1 Meter Water Column.

One piece sturdy body with cross ribs to reinforce end flanges. Latest inverted design diaphragm remains unstressed while valve is in closed position gives more service life. Deep seat allows maximum flow & excellent throttling characteristics. Available with Neoprene, EPDM, Hyplon, Butyl, Viton, Teflon-coated and pure PTFE diaphragms

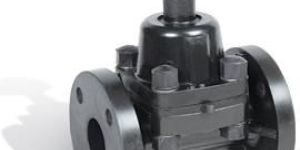

Features of DPP Diaphragm Valve One piece sturdy body with cross ribs to reinforce end flanges. Latest inverted design diaphragm remains unstressed while valve is in closed position gives more service life. Deep seat allows maximum flow & excellent throttling characteristics. Available with Neoprene, EPDM, Hyplon, Butyl, Viton, Teflon-coated and pure PTFE diaphragms. Available in screwed end onnections also.

Features of DPP Butterfly Valve Slips-in between line flanges, Wafer/Sandwich type, lug style, compact design, light in weight, easy to install. Elastomer-seat provides bubble tight shut-off. Rigid body, sturdy construction, long trouble-free life. Ratchet lever mechanism permits locking of disc position determined by system requirement. Wetted parts only of PP/PVDF, HDPE/SS and elastomer compatible with fluid. Square section shaft provides positive engagement between shaft and disc, between shaft and lever ensuring positive shut-off with quarter turn operation. Suitable for flow in either direction, seals in both directions and can be installed in either vertical or horizontal lines. Available in screwed end onnections also.

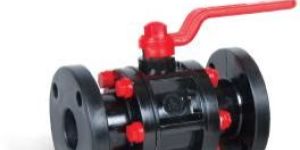

Features of DPP 3-Piece Ball Valve Valves are of three piece design, fitted with six set of metallic studs and nuts which contributes to their sturdy construction. Valves have full bore; thereby, allowing full 100% flow. Body and Stem seals are offered in various elastomers like EPDM, Neoprene, Hyplon, Butyl, Viton and also in PTFE for chemical resistance against most chemicals. Valves with PTFE seals are provided with steel ring inserts which gives better sealing and safety features. Steel inserts in stem and handle give more strength, sturdiness, longer life and better performance. Carbon black resists ultraviolet rays and prevents degradation of polypropylene in sunlight exposure. Available in screwed end onnections also.
