Filter Press Dealers in Navsari

Plates and Frames are made of light, hygienic, chemical resistance polypropylene. They are easy to handle a practically maintenance free. Plates and frames are uniquely suited for basic filtration processes. They have been proven reliable and efficient in chemical processes, the beverage industries, biochemical, and pharmaceutical, industries. The sizes are from 470 mm to 1500 mm. Special design for Viscose, Acrylic fiber Staple fiber of size 500 x 500 mm, 800 x 800 mm 920 x 980 mm.

• Weight: 100-1000kg
• Condition: New
• Automatic Grade: Automatic
• Power: 1-3kw
• Driven Type: Mechanical
• Warranty: 1year

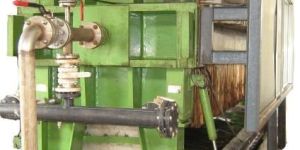

These are advance version of Recessed Chamber Closed configuration plates, where Filter Cloth is caulked in the caulking groove around the recess plate. Major benefits of this design are Zero leak Recess Type Filter Plate because ‘O’ Ring seats around the sealing edge and filtrate hole secure tight seal when the plate pack is closed. Cloth caulking groove provide easy installation and least maintenance of the filter cloth. CGR plates are recommended and necessary for leak proof conditions like toxic substance, acidic solutions etc. ‘O’ Ring are available in the different elastomers like EPDM, Neoprene, viton etc. These plates are available with center, top, bottom and corner feeding with adaptable diameter and designed at 8 and 16 bar operating pressure.

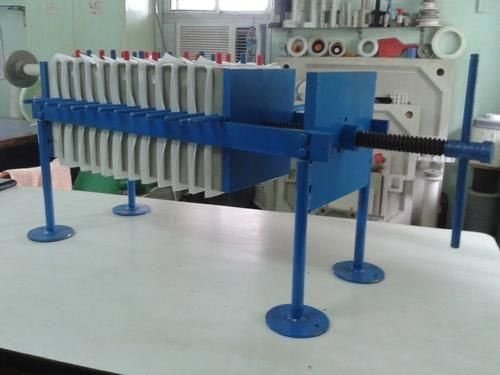

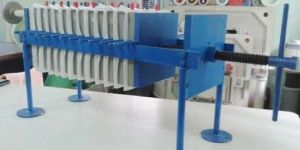

each fitted with a durable permeable cloth. The recessed plates are pushed together in normal operation. The pressure required for dewatering is provided by the feed pump. During the filtration cycle the sludge is initially pumped into the chambers at a high rate. This rate is reduced as the chambers are filled and the pressure builds. The cloths retain the solids, allowing water to pass through as filtrate. Once the pressure in the press reaches a set point and the filtrate is reduced to a trickle the dewatering cycle is complete. The next stage of the process is to empty the press by opening the plate chambers and allowing the dewatered cake biscuits to drop out. This entire operation can be a manual, semi automated or fully automated process. Once the press is empty the plates are returned to the closed position, ready for further batches. The manual filter press unit is fitted with a hand pump, and is ideal for small sludge volumes. The semi-automatic filter press range, with a hydraulic pump for plate pack closing. The fully automatic machine includes automatic plate shifting, plate vibration and drip trays. A number of options are available to assist ease of operation for all models, including the Air-Track plate shifter, membrane plates for increased filtration pressures.

Here the process of Membrane Filter Plate is applicable. After the pressure is achieved on the preset the sludge stops entering into the chamber and the membranes are inflated. The chamber below has a drainage through which Air or water is used to generate pressure and is pumped inside the squeeze cavity to inflate the face of the plate against the filter cake. The cake is dewatered and then removed from the chamber.Less filtration time. Uniform filter cake for continuous output. Dry cake matter content as squeezing procedure is involved. Low Investment cost. High Acceptability to all Product compositions. Low energy consumption.

PP filter press are still valid solutions in application where low solid feeds are present as well filtrate quality and cake washing extraction are important.These plates usually used in applications where filtration area is more important than volume. Filter plate & frame are available in polypropelene - HPCP material which application is suitable upto 800C. Our standard plate & frame configuration covers wider range of applications in the variety of industries and customized designs also met the specific process applications.

We manufacture Semi Automatic Filter Press with electro mechanical plate shifting device for individual Plate shifting with a Pick and Plate type Reciprocating shuttle. For shifting with total speed control, Hydraulic or electric motor is used. We offer the highly efficient Semi Automatic Filter Presses.

The original concept for filter press were the Filter plate & frame, are still used in many industries. In these design the chamber is formed by a pipped or slotted grooved flat plate on each side of the frame and Cake formation takes place in the frame. Filter plate & frame are still valid solutions in application where low solid feeds are present as well filtrate quality and cake washing/ extraction are important.These plates usually used in applications where filtration area is more important than volume. Filter plate & frame are available in polypropelene – HP/CP material which application is suitable upto 800C. Our standard plate & frame configuration covers wider range of applications in the variety of industries and customized designs also met the specific process applications.

Hydraulic cylinder pull back type Double Acting chrome-plated. Pressure-upto 450 kgCm2, Hydraulic cylinder with mechanical locknut Single-acting, Safety Lock Nut for mechanical load holding type, Hydraulic Cylinder Capacity- 30 Tons to 450 Tons & Stroke- 150 to 1000 mm and on request up to 3000 mm Stroke.

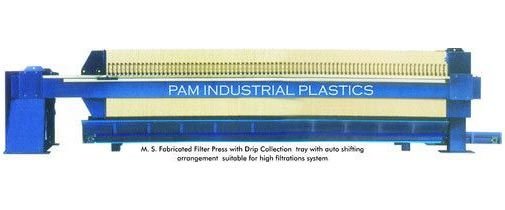

The operation of conventional filter presses have always been messy and labor intensive. With ever increasing labor cost there arose a demand for atomizing several filter press operations. N.M. Patel Engg. was first to develop & offer automatic filter presses with following features.    Auto Shaking mechanism The filter press with precisely engineered auto shaking mechanism will shake the group of plates at one time maintaining the predetermined gap between the two plates via chain or rope. The auto shaking mechanism is run by electric or hydro-motor shaking the plates with suitable revolutions adjusted by means of PLC, which co-relates the filtration sequence without operator’s attention. AUTO PLATE SHIFTER FILTER PRESSThis highly advanced arrangement, provides fully automated closing and opening. When the filter is ready for cake dumping, the double acting cylinder retracts, pulling with it the movable head or follower. As soon as the followers is fully retracted, the shuttle shifter takes over, picking up the first plate from the head end of the unit, moving it across the opening or cleaning space to expose the cake and stacking it against the follower. The shifter then automatically reverses, returns for the next plate, transports and stacks it against the first plate and so on with time cycle set in PLC. Until all of the plates have been successively shifted and chambers dumped. An over-ride is provided so that the shifter can be stopped at any time and its motion resumed when the operator desired. Drip Trays in Bombay Door ConstructionDrip Trays are kept below the plates or Plate & Frame. It serves the purpose of collecting Drip (Filtrate) during the filtration or water during washing which falls due to capillary action from the Filter cloth.Arranged underneath the filter plate set.Fabricated of steel with plastic coating, stainless steel or entirely of synthetic material. Operated manually or fully automatic by means  of electro gear drive or hydro motor. Accident Prevention  As safety precaution for the operating personnel. Safety Light Curtain to interrupt operation with pull-cord in order to re-start the closing and plate shifting device.
