NG FILTERS AND FABRICATORS Vijalpor, Navsari, Gujarat

All PVC Cartridge Filters are manufactured with high precision. These housings can accommodate standard filter cartridges Double Open End Style. Mainly used in pre treatment, these housings can be widely used in electronic industry. The advantage of using Unplasticized Poly Vinyl Chloride (UPVC) filter housings is excellent resistance to UV and atmospheric oxygen. We are now introducing the all-new and improved range of Cartridge filter housings (third generation) with increased operating pressure, better hydro pressure, and higher flow rate. Made from 100% UPVC material. The water fills into these housings from bottom to top and thus does not strike on to cartridges directly. At rated flow rates these housings offer minimum pressure drop across the filter. The bottom of filter is designed together as a whole with the top locator and closure system in a very unique design to avoid internal bypass. It is very easy to install, pushing down cartridges and closing the lid is a matter of seconds. Cartridge filter housings are made up of pvc which has good resistance to UV and oxidation by atmospheric oxygen. Hence they have a very long life expectancy. As pvc is unaffected by salts.

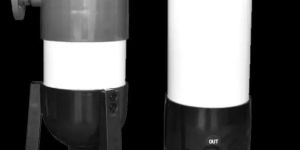

UPVC bag filter housing provide an economical alternative to stainless steel. Bag filter systems are designed for high flow rates and high sediment holding capacity. Its range provides filtration solution for a broad variety of fluid applications in the process industry. They are particularly useful for filtering large volumes of high viscosity liquids.

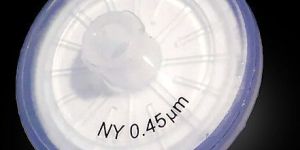

NG FILTERS AND FABRICATORS offers a wide variety of syringe filters for convenient sample preparation and fluid sterilization. Cellulose Acetate (CA) and Polyether Sulfone (PES) membranes are ideal for samples containing proteins and generally recommended for aqueous solutions filtration. Nylon (NY), PTFE and Regenerated Cellulose (RC) membranes are recommended for organic solvents filtration. Glass Fiber Pre-filter and a cellulose acetate membrane are recommended for highly loaded aqueous solutions.

Specialities : Transparent SyringeSterile Packaging Available For CA And PES,Wide Variety Of Membranes,Pore Size,Diameters And Connections Available,High Lot-to-lot Reliability And Reproducibility For Consistent Filtration Quality.

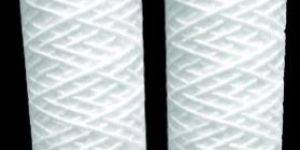

General Filtration String Wound Cartridges are produced by winding strands of yarn around a cylindrical core to form a matrix for effective depth filtration of larger particles. String Wound Filter Cartridges are an excellent choice for economical, nominal filtration in the range of 1-150 microns, with both the yarn and core available in a wide array of materials to ensure that the filter is compatible with the process streams and conditions. General Filtration’s String Wound Cartridges are available in multiple lengths and diameters to fit in existing housings and replace other brands.

Specialities : Standard And Customized Sizes To Fit Most Housings,Filtration Rating From 1 To 100 Micron,High Strength & Pressure Resistant,Manufactured In Continuous Length,Full Range Of Sizes From 10” To 60” Length

Usage : industrial

Stainless steel cartridges are designed to overcome the temperature and chemical compatibility limitations of fabric or synthetic fibre media. This will offer very high- temperature resistance &  can even withstand high differential pressure. Stainless steel cartridges are offered in SS 304, SS 316, & SS 316 L materials. These elements can be either plain cylindrical or in pleated configuration to increase filtration area. Usually, all stainless steel pleated & cylindrical filters are supported with coarser filter media to ensure no direct damage is inflicted to the main filtering media under process upsets. A bubble point test can be done to certify that no opening larger than the specified pore size exists in product joints or seams. No media migration occurs due to stainless steel material. These elements can be back washed & reused.

Length : 10”, 20”, 30”, 40”

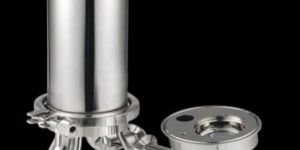

Vent Filter are designed as per customer’s requirement and are provide with and without jacket as per requirement. The term vent filter is used as these filters are mounted on the top of the storage tank in order to prevent the liquid from various microbial and other particular contaminants.

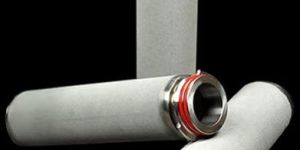

Stainless Steel sintered powder filter cartridges are recommended for the filtration of air or liquid at higher operating temperatures & corrosive environment. Sintered S.S. cartridges are produced by cold isostatic pressing, which gives high porosity to the material and also stability. They can easily be cleaned or back washed thus having longer shelf life. Sintered filters are able to withstand high differential pressure across the filters.

Length : 100 mm to 1000 mm

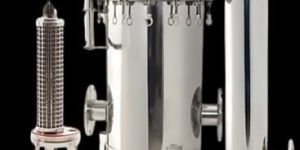

Cartridge filter system offers wide range of flow capacities & contaminant holding capacities. Cartridge filter housing diameters can accommodate around 1 to 500 cartridges. Cartridge filters are normally used as polishing filter in almost all process industries.Cartridgefilter is constructedof filterhousing, filter cartridges, tubesheet, positivesealingarrangement for cartridge depending upontype of cartridge&choice ofend connections.Positive sealing arrangement for cartridge filter assuresnoparticlemigrationorfibermigration,evenafter highdifferentialpressures.Contaminated fluid enters the housing and is distributed evenly around the filter cartridges. Filtration takes place from outside to inside. Solids are collected on the outside of filter cartridges & clear filtrate is collected at outlet.

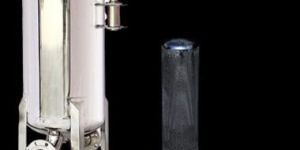

offer a wide range of bag filter housings. Bag filter housings are an easy to use and cost effective product for the filtration of liquids containing higher concentrations of coarse solids. They are particularly beneficial when handling batches of various liquids. Bag filter housings can be used as end-filtration or for the polishing of liquids with extremely low concentrations of solids. Custom Bag Filter Housings We offer customised single and multi bag filter housings to suit specific applications for higher temperatures, higher pressures or different housing materials.

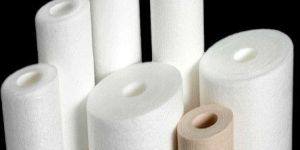

Spun bonded filter cartridges are made up of 100% polypropylene fibers. The fibers have been carefully spun together to form a true gradient density from outer to inner surface. Filter cartridges are available with core & without core version. The superior structure remains integral even under severe operating conditions and there is no media migration. Polypropylene fibers are blown continuously on central molded core, without any binders, resins or lubricants. Unfiltered fluid passes through depth filter matrix and enables the progressive retention of finer particles, whichprovides high efficiency, high dirt retention & long filter life. Fluid flows from outside to inside through filter media. Particulates are held securely in the filter matrix and clean fluid flows to the downstream side of cartridge.

Specialities : High Strength & Pressure Resistance,High Dirt Holding Capacity,Excellent Flow With Low Pressure Drop,Free Of Surfactants,Binders And Adhesives

Sizes : 10”, 20”, 30”, 40”, 50”, 60” Long

Outer Diameter : 64 mm (2.5”), 114mm (4.5”), 6”, 8″

Inner Diameter : 25mm, 28 mm, 48 mm

Dewatering slurries of pulp, food products, mining products, waste water and even wine are very common uses for drum filters.

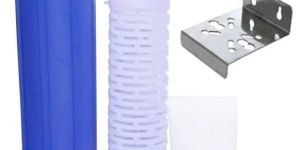

Matching up with the requirements of our clients, we are involved in offering RO Bag Filter. A Bagfilter works by the principle of microfiltration. The liquid is purified in bags by passing small permeable pores. Bagfilters can be used for large amounts of water. The sizes of these pores are between the 1-200 micron The capacity depends on the surface area from the bags. Bigger systems can clean up to more than 500 m3 /h (multi bagfilters)

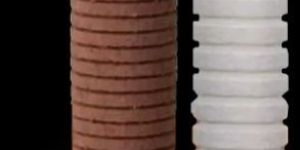

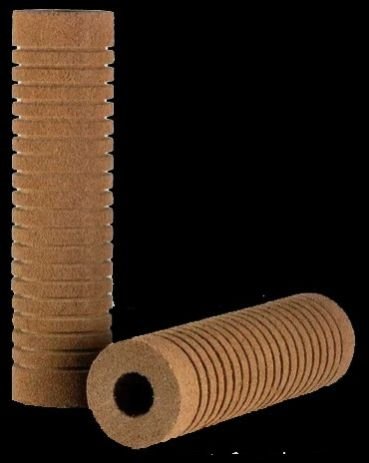

Resin-Bonded Cartridge Filter is produced from cellulose fibers, which have been intrinsically bonded together by a melamine resin, to create a solid highly durable & porous structure. By treating the fibers in this fashion we can ensure a stronger cartridge that is less likely to collapse than a wound or pleated cartridge. Our filter elements are a more productive and cost effective alternative to 3M Cuno Micro Klean and Betapure series filter elements, Phenolic Cartridges (Brown Cartridges).Our filter elements (Cartridges) are highly effective in filtration of water, pharmaceutical applications, different types of oil, chemicals, solvents, honey, diesel, piped air, recovery of suspended metals and solids etc.

Length : 100 Mm To 1000 Mm

Outer Diameter : 62.5 Mm / 70 Mm

Inner Diameter : 25 Mm / 28 Mm / 30 Mm

Filter Press very common in pharmaceutical, waste water, food and mining applications.

Feature : Made of a wide range of mono-filaments and multi-filament, combination and staple fiber fabrics ,Long-lasting use and easy Cleaning optimal cake dryness Very Easy Separation of the Cake from the Cloth

Sizes : 10”, 20”, 30”, 40”

Inner Diameter : 28mm

Outer Diameter : 64mm (2.5”),110mm (4.5”)

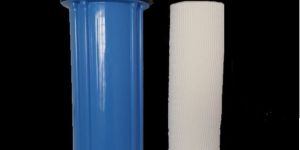

Polypropylene filter Housings are generally used in corrosive/saline liquid processing. Most of the water and waste water treatment plants and continues process industries. It is highly economical in price, light weight, durable and compact design. Considering the varied needs and applications of the end users, our products are customized to fulfil the application criteria

Thickness : 1 MM TO 4 MM

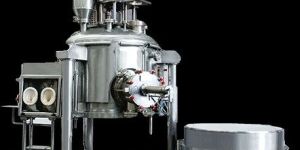

Nutsche Filter is a closed vessel designed to separate solid and liquid by filtration under pressure or vacuum and are extensively used in Chemical, Herbal, pharma, agro chemical and the food industry.

Feature : Easy in installation and operation, Exclusively High seam Strength, Easy Cake Discharge, Easy in installation and operation

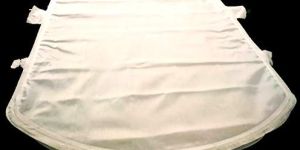

Leaf Filters are ideal for Solid-Liquid Separation for fine chemicals processes the leaves are fitted into vertical vessels and horizontal vessels. It is suitable for Food, Chemicals, Medicines.

Feature : Easy cleaning, Long service life, Excellent Dimensions stability, Fabrics are Available in various sizes and capacities at the most cost-effective prices.

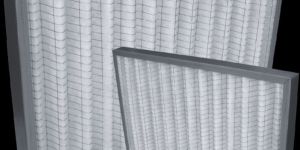

Panel filters are used in industries to retain particles ranging from 1 micron to 50 micron. These filters are basically air intake filters, which work with negative pressure of systems. These filters are further classified as.Primary filters are used for coarse filtration for removal of particles in range of 10 to 50 microns. Primary filters retain coarse particles to avoid further loading on secondary filters & enhance the life of secondary filter. Primary filters are cleanable in nature to obtain good shelf life.

Specialities : High Dirt Holding Capacity,Washable & Reusable,No Bypassing,Easy To Install,Low Pressure Drop Due To Pleated Configuration

Hepa filters are designed to meet requirement of very fine filtration up to 0.3 micron at high efficiency of 99.99 %. We have added a new feature in conventional hepa filters by using spun bonded polyester media which is cleanable in nature. These are available with different coatings like PTFE coating, PTFE lamination & more for better dust releasing. Due to hydrophobic & oleo phobic treatment on media, it does not allow any moisture & oil contents to pass through. The essential functions of HEPA Filters are to improve indoor Air Quality and to protect downstream equipments and facility components. Good HEPA Filters controls all human sneeze droplets.

Specialities : Low pressure drop due to pleated configuration, Easy to install, No bypassing, High dirt holding capacity, High filtration efficiency

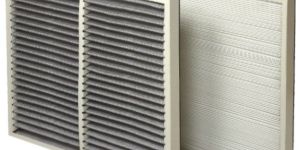

Panel filters are used in industries to retain particles ranging from 1 micron to 50 micron. These filters are basically air intake filters, which work with negative pressure of systems. These filters are further classified as. Secondary filters are used for fine filtration for removal of particles in the range of 1 to 10 microns. Secondary filters are made from selective fiber media for better efficiency.

Specialities : Low pressure drop due to pleated configuration, Easy to install, No bypassing

Filter Media : HDPE Media / Synthetic Fiber Media / Spun bonded polyester media
