Pressure Filter Dealers in Navsari

• Weight: 100-1000kg
• Condition: New
• Automatic Grade: Automatic
• Power: 1-3kw
• Driven Type: Mechanical
• Warranty: 1year

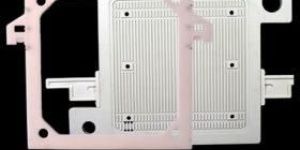

These are advance version of Recessed Chamber Closed configuration plates, where Filter Cloth is caulked in the caulking groove around the recess plate. Major benefits of this design are Zero leak Recess Type Filter Plate because ‘O’ Ring seats around the sealing edge and filtrate hole secure tight seal when the plate pack is closed. Cloth caulking groove provide easy installation and least maintenance of the filter cloth. CGR plates are recommended and necessary for leak proof conditions like toxic substance, acidic solutions etc. ‘O’ Ring are available in the different elastomers like EPDM, Neoprene, viton etc. These plates are available with center, top, bottom and corner feeding with adaptable diameter and designed at 8 and 16 bar operating pressure.

Agitated Nutsche Filters and Filter-Dryers:   With more than 1000 installations across continents we are one of the largest ANF manufacturers in the world today We are pioneers in India for Stable Drive Systems, Sterile construction and special process features in filters and filter-dryers. We have manufactured and commissioned 10,000 Litre Hastelloy® Agitated Filters and Filter-Dryers – the largest in the country We have successfully commissioned more than 100 machines in Hastelloy® – C276, C-22 and C-2000 Our equipment are highly customizable for enhanced process flexibility Sizes ranging from 20 Litres to 20,000 Litres Large number of variants available with options for cGMP, Pharma and Sterile applications We offer a range of MOCs and also clad or polymer-lined construction We have supplied equipment for Food & Beverage, Pharmaceutical, Fine Chemical, Agrochemical, Chemical, Herbal Extraction and other related industries We also offer a range of Pilot plants in Stainless Steel and Hastelloy® with GMP construction

• Weight: 100-1000kg
• Color: Blue
• Voltage: 440V
• Condition: New
• Automatic Grade: Automatic
• Driven Type: Mechanical
• Warranty: 5years

We are a major Automatic Filter Press Manufacturer from India providing advanced technology for optimum filtration. Operation is initiated by a push button activated manually. The whole system of our Automatic Filter Press is controlled by computerized mechanism that leaves no room for error. The PLC mechanism controls cycle times, phases and the ancillary equipment as well. Use of modern filter fabrics ensures easy cake discharge, while the removal of restrictions produces uniform cakes.Features : Increases product yield High solid consistency Completely user friendly Useful for varied applications Minimum maintenance Economical.

• Material: Carbon steel
• Filtration efficiency: 96% - 99.9%
• Maximum temperature: 250 Degree C
• Maximum flow rate: 720000 m3/Hr
• Minimum particle size: 0.5 micron
• Capacity (Litre): 1000M3/Hr to 250000M3/HR

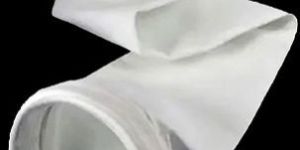

In order to deliver a high quality lot of products, we make use of the best available resources and raw material. Also, we make sure that the material is sourced from the genuine vendors only. With our years of experience and expertise, we strive to make available high quality Bag Filter at competitively low prices.

Hydraulic Filter Press Manufacturer in the national and international markets. It operates on a hydraulic system, powered using hands or motorized power pack for opening and closing. The locking system in the Hydraulic Cylinder is of Pull back type which is chrome plated and had double action.

each fitted with a durable permeable cloth. The recessed plates are pushed together in normal operation. The pressure required for dewatering is provided by the feed pump. During the filtration cycle the sludge is initially pumped into the chambers at a high rate. This rate is reduced as the chambers are filled and the pressure builds. The cloths retain the solids, allowing water to pass through as filtrate. Once the pressure in the press reaches a set point and the filtrate is reduced to a trickle the dewatering cycle is complete. The next stage of the process is to empty the press by opening the plate chambers and allowing the dewatered cake biscuits to drop out. This entire operation can be a manual, semi automated or fully automated process. Once the press is empty the plates are returned to the closed position, ready for further batches. The manual filter press unit is fitted with a hand pump, and is ideal for small sludge volumes. The semi-automatic filter press range, with a hydraulic pump for plate pack closing. The fully automatic machine includes automatic plate shifting, plate vibration and drip trays. A number of options are available to assist ease of operation for all models, including the Air-Track plate shifter, membrane plates for increased filtration pressures.

We are pioneers in India for Stable Drive Systems, Sterile construction and special process features in filters and filter-dryers.We have manufactured and commissioned 10,000 Litre Hastelloy® Agitated Filters and Filter-Dryers – the largest in the country,Large number of variants available with options for cGMP, Pharma and Sterile applications,We have supplied equipment for Food & Beverage, Pharmaceutical, Fine Chemical, Agrochemical, Chemical, Herbal Extraction and other related industries.

The Membrane filter plates are the technological development of the recessed plates. These elements come with variable chamber depth which is adjusted depending upon the filterability and quality of slurries to be treated. Mixed pack membranes are the most common & cost effective configuration where the membrane and recessed plates are set alternatively so every second plate is provided with flexible and replaceable filter face of rubber on both the side. This configuration allows variable chamber depth through membrane squeezing. These plates are mainly used to increase the cake dryness (reduce moisture content), shorten filtration, effective washing and discharge time and they are achieve by inflating the flexible membrane diaphragm filter face, contrary to conventional plates. For inflation of membrane generally water or air pressure is used by pumping in the squeezing chamber. The replaceable membrane are either from Rubber or EP family which has great advantage of elasticity gives extreme deflection of membrane so the final cake receive the consistent high dryness. Due to Squeezing process the Membrane Plates offers following advantages.– Reduction in Moisture content in the final filter cake– Reduction in Filtration, Washing as well discharge time.– Reduction of washing liquid consumption due to more homogeneous cake structure.– Increased Uniformity in dewatering of the filter cake.– Improvement in cake release from the filter press.– Saving in filtration process cost and time. Membrane plates are available with center, top center and corner feed designs for up to 16 bar operating pressure.

Hydraulic cylinder pull back type Double Acting chrome-plated. Pressure-upto 450 kgCm2, Hydraulic cylinder with mechanical locknut Single-acting, Safety Lock Nut for mechanical load holding type, Hydraulic Cylinder Capacity- 30 Tons to 450 Tons & Stroke- 150 to 1000 mm and on request up to 3000 mm Stroke.

Side Bar Filter PressesOur range of supply for side bar filter presses comprises:Small & Medium size filter pressesfor plate sizes: € 500 mm and € 1000 mm, upto 16 bar operating pressure. The hydraulic closing device can either be chosen as manual or electro-hydraulic unit. Filter presses for automated operationPlate sizes: € 800 mm up to € 1500 mm, operating pressures ranging from 5 to 16 bar. For this filter press system two well-proven skeleton versions are available:       Skeleton made from cast iron: This version is especially recommended for severe operating conditions in chemical and metallurgical industry.    Skeleton made from steel: This type has been developed especially for operating pressures >16 bar.Of course it is possible to have product-wetted parts of both filter press types equipped with corrosion-resistant coatings. PP & PP/FRP coating Rubber-lining  & stainless steel coating Stainless steel coating The basic components of a filter press are:Closing of Filter Plate Set. Automatic hydraulic with maintaining pressure device.Hydraulic CylinderDouble Acting chrome-plated.Pressure-upto 325 kg/Cm2 Stroke- 150 to 1000 mm and on request upto 3000 mm Capacity- 30 Tons to 300 Tons Power Pack-Power Pack consists of high-pressure radial plunger Pump. Hand operated Directional Control valve, Solenoid valve, pilot operated check valve, Relief valve, Oil Filter, pressure gauge, Electric Motor. Working Pressure: upto 325 kg/Cm2Design for Flame- Proof & Non-flame proof area. Filter Plate SetChamber plates in standard design are fabricated of pressure-resistant and corrosion-proof polymer. Other materials such as cast iron, ductile iron, aluminum, stainless steel available on request. Filtrate discharge is available either in open design through spigots into a filtrate trough or in closed design through corner ports into discharge pipes. Filter ClothsPush-through filter cloths made of polyamide, polypropylene, polyester, cotton or other materials.  Special Equipments Control Panel.Equipped with operating components, control and motor centers, mounted on the filter press, ready for connection.

We manufacture Semi Automatic Filter Press with electro mechanical plate shifting device for individual Plate shifting with a Pick and Plate type Reciprocating shuttle. For shifting with total speed control, Hydraulic or electric motor is used. We offer the highly efficient Semi Automatic Filter Presses.

the membrane filter plates are the technological development of the recessed plates. These elements come with variable chamber depth which is adjusted depending upon the filterability and quality of slurries to be treated. Mixed pack membranes are the most common & cost effective configuration where the membrane and recessed plates are set alternatively so every second plate is provided with flexible and replaceable filter face of rubber on both the side. This configuration allows variable chamber depth through membrane squeezing. These plates are mainly used to increase the cake dryness (reduce moisture content), shorten filtration, effective washing and discharge time and they are achieve by inflating the flexible membrane diaphragm filter face, contrary to conventional plates. For inflation of membrane generally water or air pressure is used by pumping in the squeezing chamber.      the replaceable membrane are either from rubber or ep family which has great advantage of elasticity gives extreme deflection of membrane so the final cake receive the consistent high dryness.     due to squeezing process the membrane plates offers following advantages.- reduction in moisture content in the final filter cake- reduction in filtration, washing as well discharge time.- reduction of washing liquid consumption due to more homogeneous cake structure.- increased uniformity in dewatering of the filter cake.- improvement in cake release from the filter press. - saving in filtration process cost and time.    membrane plates are available with center, top center and corner feed designs for up to 16 bar operating pressure.

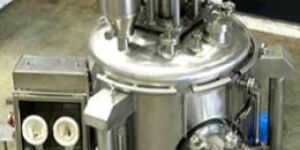

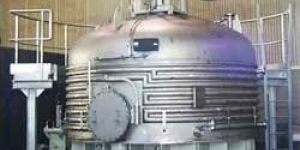

The Agitated Nutsche filter is a Nutsche type filter designed to separate solids from liquids. It is totally enclosed and is normally operated under pressure or under vacuum. Additionally, the equipment is fitted with a stirrer mechanism which efficiently agitates the slurry during cake washing, smoothens and squeezes the cake during filtration and assists in the automatic discharge of the cake.

With more than 1000 installations across continents we are one of the largest ANF manufacturers in the world today We are pioneers in India for Stable Drive Systems, Sterile construction and special process features in filters and filter-dryers. We have manufactured and commissioned 10,000 Litre Hastelloy® Agitated Filters and Filter-Dryers – the largest in the country We have successfully commissioned more than 100 machines in Hastelloy® – C276, C-22 and C-2000 Our equipment are highly customizable for enhanced process flexibility Sizes ranging from 20 Litres to 20,000 Litres Large number of variants available with options for cGMP, Pharma and Sterile applications We offer a range of MOCs and also clad or polymer-lined construction We have supplied equipment for Food & Beverage, Pharmaceutical, Fine Chemical, Agrochemical, Chemical, Herbal Extraction and other related industries We also offer a range of Pilot plants in Stainless Steel and Hastelloy® with GMP construction

Automatic Filter Press, screw type filter press, retched type filter press

Agitated Nutsche Filters and Filter Dryers, Rotary Vacuum Paddle Dryer

plate type filter, recessed chamber filter plate

Manual Filter Press, Cast Iron Filter Press

Sand Mill Disc, Polypropylene Cock, Polypropylene Scoop

Screen Filters, L Type Screen Filter, Metal Body Disc Filter
