Catvision Limited Sector 8, Noida, Uttar Pradesh

Condition : New,Used

Application : Optical Networking

Feature : Compact Design,Durable,Fine Finished,Reliable Operation,Shear Strength

Voltage : 110V,220V

Color : Black,Brown,Grey,Blue

Weight :  100gm ,150gm ,200gm ,250gm ,300gm 350gm,400gm ,450gm ,500gm

Catvision Indoor Hybrid Amplifiers are professional hybrid amplifiers used for line extender application in large CATV trunk lines. High quality hybrid module is used for achieving excellent performance. High quality hybrid module, Dual RF Output, Provision for response thermal equalizer High voltage surge protection, Excellent frequency response.

Type : Telephone Amplifier

Application : Telephone Use

Color : Black, Blue, Creamy, Grey, Red, White

Feature : Auto Stop, Clear Sound, Easy To Operate, Low Maintenance, Low Power Consumption, Noise Reduction, Safety Protection Sensor

Voltage : 110V, 220V

Condition : New

Frequency : 50Hz, 60Hz

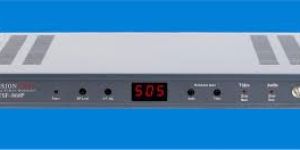

Type : Saw Filter Modulator

Application : Filter

Color : Silver

Feature : Durable, Easy To Install, Easy To Use, High Quality

Voltage : 110V, 220V

Condition : New

Frequency : 50 MHz, 70 MHz

Packaging Type : Box

Warranty : 1 Yr, 2 Yrs

Type : Rf Transmitter

Certification : ISO 9001:2008 Certified

Voltage : 12-24 VDC, 6-12 VDC

Driven Type : Electric

Automation Grade : Automatic, Semi-automatic

Type : Power Meters

Certification : ISO 9001:2008

Color : Brown, Green, Grey, Maroon, Red, White, Yellow

Voltage : 3-6VDC, 6-9VDC

Application : Indsustrial Usage, Power Monitor

Display Type : Digital

Frequency : 50Hz-65Hz

Automatic Grade : Automatic, Fully Automatic, Manual, Semi Automatic

Power Source : Battery, Electric

Feature : Accuracy, Durable, Light Weight, Lorawan Compatible, Low Power Comsumption, Multi Jet, Stable Performance

Optic Node (Outdoor) ORS-M-1E-850                   Waterproof zinc diecast housing                 Frequency 40 ~ 860 MHz                 High voltage surge protection                 Excellent frequency response                 LED bar display for optic power indication                 Excellent C/N, CSO & CTB characteristics                 SMPS power supply (30~90VAC, 110~250VAC, 50Hz)                   ORS-M-1E-850           : Superior optic and amplifier modules

Mini Optic Transmitter 1310 nm - 10mW   OTM-13-E-10                   Uses DFB uncooled laser diode module                 External SMPS 12VDC adaptor (110 ~ 245VAC, 50Hz)                 Miniature size with high performance                 Suitable for both analog & digital networks                 RF input power : 90~95dBµV                 Optic output power: 10mW Power pass and mains power supply (optional)

Optic Node (Indoor) IN2-M-1P-850 L / IN2-M-1E-850 L IN2-M-1P-850 LE / IN2-M-1E-850 LE / IN2-M-1E-850 LES IN2-G-1E-850AGC / IN2-M-1E-850-1A IN4-M-2E-850 LE                   Frequency 40 ~ 860 MHz                 Optical sensitivity better than -10 dBm                 Use as an optical node or amplifier                 High voltage surge protection                 Excellent frequency response                 LED bar display for optic power indication                 Excellent C/N, CSO & CTB characteristics     IN2-M-1P-850 L                :               2 RF out, optic module, NXP hybrid, alum. housing IIN2-M-1E-850 L                :             2 RF out, optic module, superior hybrid, alum. housing IN2-M-1P-850 LE               :             2 RF out, optic module, NXP hybrid, MS housing IN2-M-1E-850 LE               :             2 RF out, optic module, superior hybrid, MS housing IN2-M-1E-850 LES            :               2 RF out with auto switchable (Optic IN & RF IN), optic                                                             module, superior hybrid, MS housing IN2-G-1E-850AGC            :               2 RF out, AGC optic module, superior hybrid, MS housing IN2-M-1E-850-1A             :               2 RF out, optic module, superior hyrbid, MS housing,                                                                 in-built 1Amp power supply IN4-M-2E-850 LE              :               4 RF out, optic module, superior hybrid, alum. Housing

Hybrid Amplifier CA 830 FDD / EA-830 FDD   Dual slope (built-in variable slope & provision for fixed slope) Frequency : 40 ~ 860 MHz (106 ch.) Dual RF output (single output - optional) High voltage surge protection in CA model 30 dB gain   CA 830 FDD : NXP (Philips) hybrid module EA 830 FDD : Superior hybrid module

FTTH Node IN1-E-800                   Frequency 40 ~ 1000 MHz                 No DC power required                 Excellent frequency response                 Specially developed for digital Set Top Box

Field Strength Meter (DB Meter) DBM 8608D   2-in-1 meter - measures both digital and analog signals. Displays signal strength, frequency, ch. no., V/A & PP voltage 47 ~ 860 MHz (E02 ~ E69) Accuracy: ± 1.5 dB Computer calibrated Favourite channel selection Multiple memory locations Long-duration rechargeable battery V/A measurement & audio output on speaker Auto power shut-down for extended battery life

Optic Transmitter 1550 nm  OTU-15-G-10D (GOLD) / OTU-15-E-10SL      Suitable for both analog & digital networks  AGC/MGC for stable RF level  Power doubler stage for higher output  Excellent C/N, CSO & CTB  Digitally-controlled pre-distortion circuit  SMPS power supply (100 ~ 260 VAC)  Microcontroller to control all laser parameters  Optic output power: 10mW / 10dBm    Gold                      : Ortel Laser, NXP pre & post-amp. modules and dual SMPS  OTU-15-E-10SL : Uncooled Laser, 1 superior hybrid amplifier module

DVB-C Meter DSM 801   DVB-C compliant Displays signal power, freq. ch. no., BER and MER Auto sensing of QAM mode & symbol rate 47 ~ 860 MHz (E02 ~ E69) Computer calibrated Provision for complete frequency spectrum Provision to feed 9 channel plans Provision to change shut-down time Three channel tilt Easy to operate Long-duration rechargeable battery Auto power shut-down for extended battery life Slope measurement at any 3 channels

Dual Input Optic Node (with auto switching) 2IN-2M-1E-850 AS / 2IN-2M-1P-850AS / 2IN-2G-1x-850AS                   Frequency 40 ~ 860 MHz & Dual RF output                 Built-in auto optic switcher to provide                 uninterrupted RF output                 Auto switching of optic input to standby in case                 of failure of the main optic input                 Suitable for both analog and digital networks                 Separate RF controls for both the optic inputs                 Fast switching from one optic input to the other                 High voltage surge protection                 Excellent frequency response                 LED bar display for optic power indication                 Excellent C/N, CSO & CTB characteristics                   2IN-2M-1E-850AS            : 2 superior optic & 1 superior hybrid modules                 2IN-2M-1P-850AS            : 2 superior optic & 1 NXP hybrid modules                 2IN-2G-1P-850AS             : 2 optic AGC & 1 NXP hybrid modules                 2IN-2G-1E-850AS             : 2 optic AGC & 1 superior hybrid modules

Digital Set Top Box: MPEG 4 SD   BIS registered & TRAI compliant Ali M3281P, 8MB Flash & 64MB RAM MPEG-2 / MPEG-4 SD Supports CTI, NSTV and Ensurity CAS. Other CAS can be integrated as per customer requirement Middleware with Advertising and other VAS features (optional) Power consumption:

COAXIAL CABLE Premium & Supreme Series RG 11 / RG 6 / RG 59   Bare copper or copper clad steel Braiding 95% (60% for RG 59) Weather resistant PVC jacket Physical foaming Jelly filled

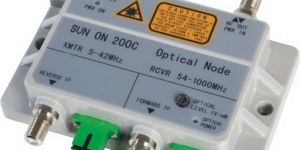

Catvision offers unique Optic Node -cum- Amplifiers for the application in HFC Networks. It has the capability to convert even weak optic signals to a high quality RF signal for further distribution in larger CATV network. It has been specially designed to use it either as a node or a stand alone Amplifier. Optical input power indicator is provided for ease of network maintenance, Use as an Optic Node or Amplifier, Dual RF Output, High Voltage Surge Protection, Aluminium heat sink for better heat dissipation & long life, Aluminium heat sink for better heat dissipation & long life.

CATV Power Supply PS  10A / PS 6A / PS 3A / PS 1A   Automatic power restoring circuit - after removing short circuit Automatic short circuit & overload detection circuit 5 ~ 1000 MHz, high linearity Display of voltage and current External power inserter Multiple output ports 90VAC output optional   PS 10A  :               60 VAC, 10 Amp PS 6A     :               60 VAC, 6 Amp PS 3A     :               60 VAC, 3 Amp PS 1A     :               60 VAC, 1 Amp

Catvision GSF Modulator GSF 860 employes the GSM technology to ensure all harmonics fall above 900MHz, outside the TV band, thus providing flawless picture over long distances. It uses GaAs MMICs for high quality picture and sound with high CN. The GSF 860 is specially designed for large CATV networks. A Microcontroller with latest PLL design gives it high precision and solid stability. GSM Technology incorporated for low spurious, Professional modulator suitable for MSO & large networks,, Indication of audio and video over modulation, Front panel controls for video over-modulation and audio over-deviation, High quality video and audio.

Fixed channel : 47

Catvision’s modulators convert baseband audio and video signals into network-ready RF output signals for Cable TV distribution. These modulators meet all international standards. Catvision manufactures wide range of modulators to cater to various network sizes.Catvision has installed more than 25 digital headends in India, Middle East and Africa. In addition, Catvision has complete network experience - from headend to home. Catvision integrates world-class digital headend products (MPEG-2 & MPEG-4, SD& HD from European and American companies like Teleste, Johansson, CryptoGuard and Emcore to give the most powerful yet cost-effective solution in the market.Catvision provides end-to-end digital headend products include IRDs, IP encoders, scramblers, QAM modulators, edge QAM modulators, CAS, SMS etc. with high flexibility & the greatest number of channels having the best image quality & high bandwidth efficiency.

CATV Channel Combiner CN 860   47 ~ 860 MHz 16 channel combiner Low insertion loss < 16 dB typ. Flat frequency response High isolation > 30 dB
