Deep Well Pump Dealers in Noida

Since our inception in the year 2007, we have been engaged in manufacturing, exporting and supplying top-grade range of Mark II Deep Well Handpump. The offered hand pump is manufactured as per international quality standards using excellent quality metal alloys with the aid of sophisticated techniques. Featured with connecting rod with 12 mm and 3 meter diameter, the provided hand pump suits as excellent utility for pumping underground water for drinking applications. Provided at cost-effective rates, this Mark II Deep Well Handpump is also checked by quality experts on varied aspects. Key points: Admired for its excellent impact resistance Long life Supreme finish Needs less maintenance Pump Type : India Mark II Deep Well Hand pump / hand well pump as per Bureau of Indian Standard Specifications with 63.5mm dia cast iron brass sleeved cylinder assembly.MS/SS Connecting Rod Diameter = 12mm 3 meter lengthRecommended for water level setting depth (metres) : 20-45Approximate Discharge (Litres/Hour) : 900GI Riser Pipe = 32 mm NB 3 meter length *Minimum ID of bore (milimetre): 100 * Stainless steel pipes / PVC pipes also available on request

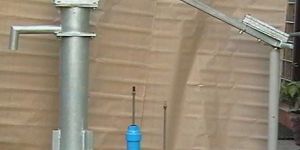

We are offering india mark-ii extra deep well hand pump. application data minimum bore size . 100 mm. internal dia. Of cylinder .. 63.5 mm stroke length ... 100±4 mm. average discharge per stroke ... 14 liters per minute of 40 strokes. operating depth (approx.) ... Up to 90 meters salient features: • in addition to all the salient features of india mark ii, this model incorporates a longer and heavier handle with a “t” bar arrangement and counter weights to balance the weight of the connecting rods at different depths. This heavier handle can be avoided when using fgp connecting rods. • this model is recommended for use upto 90 m depth. The number of counter weights can be varied depending upon the depth of installation as shown in the table below. depth range m weight 40 to 60 one weight 61 to 70 two weight 71 to 80 three weight 81 to 90 four weight • 100 mm stroke length of the handle provides a water discharge of 15 liters per minute per 40 strokes with an installation depth range of the cylinder between 45 m to 90 m below ground level. • suitable for preventive maintenance with simple tools by users. • the standard pump is supplied with a telescopic stand. • stands with square or circular foot flanges are also available. • special tools and standard tools for installation, masonry tools and shuttering for platform construction are available. Also, fishing tools, village level maintenance tools and spare parts kits for two or five years’ normal operation can be supplied.

• Minimum bore size: 100 mm.
• length: 225±3 mm.
• depth: 45 meters

Bearing bushes for the pivot assemblies are made from injection molded special grade plastic.225 mm stroke length of the handle provides a water discharge of 17 litres per minute per 40 strokes with an installation depth range between 15 m to 45 m below ground water.Extra long spigot ends in riser pipe to ensure high joint strength, leak proof pipe joints, and verticality of the pipe string. Rubber centralizers on riser pipes prevent external wear.Standard cylinder components are comprised of injection molded interchangeable plunger and foot valve assemblies, made from modern engineering plastics.The Afridev Pump's cylinder is also suited to use cast gun metal monolithic plunger and foot valve assemblies of the Universal Cylinder.

Deep Well Hand Pumps, Cylinder Assembly, India Mark Ii Deepwell Hand Pump

Deep Well Hand Pumps, Connecting Rods, Cylinder
