Ferreterro India Private Limited Sector 83, Noida, Uttar Pradesh

Compact & Light weight: Designed for portability and ease of handling. Load Chain Wheel, Hand Chain Wheel, Chain Guide, Stripping fork & Ratchet Wheel: Made from non-ferrous metals. Eliminates spark. Spur alloy steel gears case hardened: Precision cut spur gearing ensure smooth and efficient operation with minimal effort. Alloy Steel Chain: Provides added strength, wear resistance, longer chain life. Plated hand chain: Better aesthetic looks. Increased rust protection, longer life. Brake: Mechanical screw friction self-actuating disc load brake engages instantly for load holding. Two Ratchet pawls extra safety. Load and Suspension hook with safety latches: No unintentional unhooking of the load. Powder coated painting: Added rust protection, better aesthetic look. Easy to maintain: Chain block can be easily dismantled for maintenance with simple tools available in the workshop. Easy to operate: Quality bearing on load chain wheel, gears, and side plates ensures easy operation. Interchangeability of parts: Reduces inventory. Overload testing: Chain block tested for 50% overload as per IS 3832.

Range: 1T to 10T Compact & Lightweight: Designed for portability and ease of handling. All major Forging, Casting, Gears components and Chains produced in-house: Assured quality and reliability. Spur Alloy steel gears with case hardening: Precision cut spur gears ensure smooth and efficient operation with minimal effort. Fully pocketed S. G. Iron casting load chain wheel mounted on double ball bearing: Ensures accurate and smooth operation. Alloy Steel Load Chain: Provides added strength, wear resistance, longer chain life. Plated Hand Chain: Offers better aesthetic looks, increased rust protection and longer chain life. Hand chain wheel cover: Minimizes jamming & slipping. Brakes: Mechanical screw friction self-actuating disc load brake engages instantly for load holding. Two Ratchet Pawls for extra safety. Load and suspension hook with Safety Latches: Prevents unintentional unhooking of the load. Machined Guide rollers: Ensure smooth running of load chain. Powder Coated finish: For added rust protection and better aesthetic look. Easy to maintain: Chain block can be easily dismantled for maintenance with simple tools available in the workshop. Over Load Test: Chain block tested for 150% of SWL as per IS 3832.

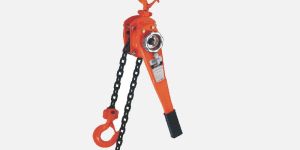

Compact & Lightweight: Designed for portability and ease of handling. Designed to EN 13157 with CE certification: Assured quality and reliability. Grade 100 load chain: Added strength, wear resistance, longer chain life. Easy to Operate: Requires minimum effort. Brakes: Mechanical load brake engages instantly for load holding. Two Ratchet Pawls for extra safety. Load and suspension hook with Safety Latches: Prevents unintentional unhooking of the load. Link Chain: Provides extra flexibility. Powder Coated finish: For added rust protection and better aesthetic look. Easy to maintain: Ratchet Lever Hoist can be easily dismantled for maintenance with simple tools available in the workshop.

Design: Compact and robust design.Construction: Die casting, lightweight, durable.Operation: Simple lever operation.Application: For Pulling and Lifting. Can be used at any working angle with sheaves.Capacity: Available in four capacities. Capacity can be enhanced with sheave pulley.Safety: Two safety devices guarantee safe operation.

Maximum pulling force is greater than 3.5 times rated lifting capacity. Largest available capacity is 5,000 Kg. Simple switch and safety button design allows for one handed operation.

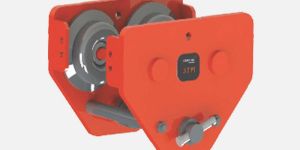

Available in geared and pull push type. Geared trolley range 1T to 20T. Pull Push type 1T to 3T. Trolleys adjustable type to suit different beam sizes. Plan & Geared wheels precision cut. Mounted on ball bearing for smooth operation. Plated hand chain for geared trolley for better aesthetic look. With anti drop guide. Powder coated finish.

JIB Crane Features Type: Self-supporting pillar mounted or wall mountedCapacity: 0.5T to 3TSwivel: 180/360 DegreeSwivelling: Manual / ElectricalMain Girder: Rolled ISMB / Plate fabricated as per design.Hoisting Equipment: Manual HoistOverload testing: 125% of SWL

Type : Self-supporting pillar mounted or wall mounted

HOT Crane Features Type: Single Girder/ Double Girder/ Underslung type.Capacity: 0.5T to 20TCode: IS 807, 3177 & 3832Operation: All motion manual by means of endless H. Chain.Main Girder: Rolled ISMB/ Plate fabricated as per design.End carriage: Box ConstructionMain Lifting equipment: Manual Hoist.Loan and H. Chain: Grade-80 and Grade-30Overload testing: 125% of SWL

GANTRY Crane Features Type: Single Girder/ Double Girder. Portable with castors.Capacity: 0.5T to 20TCode: IS 807, 3177, 800Operation: Manual / ElectricalMain Girder: Rolled ISMB / Plate fabricated as per design.End carriage: Box construction from plates & channels.Wheels: Suitable for rails or floor.Overload testing: 125% of SWL.

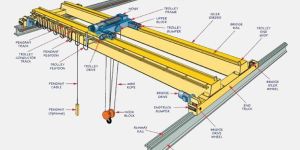

Type: Single Girder/ Double Girder/ Underslung type.Capacity: 0.5T to 25TCode: IS 807, 3177, 800Operation: All electricalMain Girder: Rolled ISMB / Plate fabricated as per design.End carriage: Box construction from plates & channels.Main Lifting equipment: Electric Hoists / Crab.Control: Pendent / Cabin / Radio Remote as per requirement.Brakes: Electromagnetic heavy duty brakes for all motions.VVFD: Can be provided as per requirement.Overload testing: Crane tested for 125% overload.

High-quality Alloy Steel Receptor. Aluminium die-casting enclosure. 38mm LED & LCD display with backlight. High-duty bow shackle, High-duty eye hook, High capacity rechargeable battery, Water-proof panel button. Infrared remote controlling. Capacity: 1000kg. – 20000kg.

Range: 1T to 20T Compact & Light Weight: Designed for portability and ease of handling. All major components forging/casting/chains/gears in house: Assured quality and reliability. Spur alloy steel gears case hardened: Precision cut spur gearing ensure smooth and efficient operation with minimal effort. Fully pocketed S. G. Iron casting load chain wheel mounted on double ball bearing: Ensures accurate and smooth operation. Alloy Steel Load Chain: Provides added strength, wear resistance, longer chain life. Plated Hand Chain: Better aesthetic looks. Increased rust portection, longer life. Hand chain wheel cover: Minimizes jamming & slipping. Brake: Mechanical screw friction self actuating disc load brake engages instantly for load holding. Two Ratchet Pawls extra safety. Load and suspension hook with safety Latches: No unintentional unlooking of load. Machined Guide Rollers: Ensure smooth running of load chain. Powder coated painting: Added rust protection. Better aesthetic look. Easy to maintain: Chain block can be easily dismantled for maintenance with simple tools available in workshop.

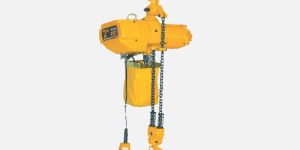

Aluminium Die Cast Body: Compact, tough body. Alloy steel gears: Precision cut spur gears ensure smooth and efficient operation with reduced noise. Grade 80 load chain: Provides added strength, wear resistance, longer chain life. Hooks: Forged hook, free swivelling with safety latch. Bottom hook with thrust bearing. Wrong Phase Protector: Wrong Phase Protector protects the motor in case of wrong phase position. Limit Switches: Stop hoist at both ends of hook path. Motor: Squirrel cage induction motor with 40% CDF and IP-55 protection. Panel: Built in panel with IP-55 protection. Control Pendent Button: Durable, waterproof, lightweight with IP-55 protection. For extra safety emergency stop button provided. Powder Coated finish: For added rust protection and better aesthetic look. Interchangeability of Parts: Reduces inventory.

Brand Name : Ferreterro

Feature : Ideal where headroom is not limited

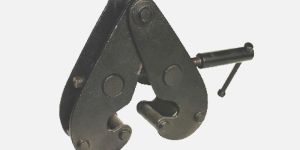

Made from high strength alloy steel. Individual clamp is proof-tested at 2 times the working load limit. Working load limit (WLL), Jaw Opening and Ferreterro name and logo are marked on the clamp. Individual serial no. and test certificate of the proof load is provided with the clamps. Maintenance replacements parts are available. ISO 9001 certification.

We manufacture a wide range of Alloy/M.S. link chains using state of the art chain making machines. Our chains have high accuracy and tight tolerance to ensure smooth running. A sophisticated continuous heat treatment process gives even hardness and strength to each link. Our E-coated chains provide high corrosion resistance for longer life. In-house manufacturing allows flexibility for customized production. All links marked as per standards for easy identification.
