Hole Drilling Machine Dealers in Noida

Precilaser Laser Welding Machine, PRECILASER Fiber Laser Marking Machine

• Voltage: 220V
• Frequency: 50Hz
• Material: MS
• Capacity: 25 Container Per Hour
• Usage/Application: Punching
• Brand: Mahalaxmi Engineering

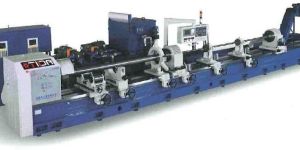

T2150/1-10m deep hole boring machine with funuc CNC system, with triangle rail (“V”),  width of rail:800mm with ring center rest the oil box is on the ground (can get 200L/min, 400L/min,600L/min,800L/min flow by rotate tune) drilling hole diameter range: 50-120mm boring hole diameter range: 50-500mm max depth of deep hole: 10m center height: 625mm ring center rest diameter range: 60-300mm roller center rest supporting range: 300-650mm main motor: N=30kw main shaft speed:  3.15～315r/min , grade 12 drilling box revolution speed: 60—1000r/min   grade12 drilling box motor: N=30kw drilling box main shaft front bore-hole 140 carrier feeding speed：5～1000mm/min （stepless） carrier moving speed：2m/min feeding motor: N=7.5kw carrier fast motor：N=5.5kW cooling pump motor: N=7.5kw X4 (set) cooling system pressure: 2.5Mpa cooling system flow capacity: 200、400、600、800L/min machine size: 29.5mX3800mmX1900mm machine weight : about 35ton max load weight: 10ton knife accessories: by user cutting oi and lubrication oil: by user processing precison: drilling : hole diameter precison:I T9-11, surface roughness: Ra6.3-Ra12.5 streight line degree of processing hole:

cnc wirecut edm machines, Small Hole Edm Machine, sinker edm machine
