Hydraulic Presses Dealers in Noida

We are offering pouch in pouch bailing machine. specifications this machine is designed to perfectly pack small bags in to big bags in uniform system automatically. fully automatic secondary packaging system to pack small pouchesbags in to master bag poly bag secondary packaging machine is to pack pouches of grains and powders into pre-formed bags. The machine is fully automatic in nature. These machines replace high cost manual and disorderly packaging. This automates the entire secondary packing process and saves labor, time and space. It is an extremely efficient and cost-effective solution for all the secondary packaging requirements. this machine is suitable for granule products automatic secondary packaging packing the small pouches into big plastic bag. ²automatic check & rejection weigher upto 2000 gm : 1 set ²horizontal belt conveyor for two sets primary packaging machine :1 set ²slope arrangement belt conveyor :1 set ²acceleration belt conveyor :1 set ²counting and arranging machine: 1 set. ²bulk vfs packing machine for big bag:1 set ²take off conveyor belt: 1 set ²automatic check weigher system upto 25kgs : 1 set ² control panel : 1 set production process: primary packed product weight checked through primary check weigher → horizontal conveyor belt for collecting the finished pouches → slope arrangement conveyor will make the pouches flat before counting → acceleration belt conveyor will make the adjacent pouches leaving enough distance for counting → counting and arranging machine will arrange the small pouches as requirement → the small pouches will load into the bulk vffs bagging machine → bulk vffs bagging machine seal and cut the big bag → belt conveyor will take the big bag under the machine → secondary check weigher check the weight of final bag

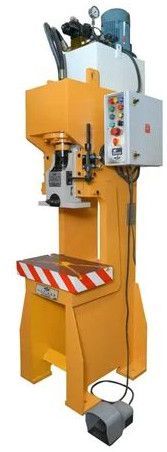

This machine is a down stroke hydraulic press with guided patten, for auto mobile assembly jobs and can also be used for making laminates, etc., platen heating with electrical heaters or steam can also be provided. Range up to 100 tons have been developed. It runs on motorized power packs, in semi and fully automatic mode. Two hand safety system can be added on request. We can give upstroke presses also, depending upon your application.

• Capacity: Customer Requirement
• Condition: New
• Automatic Grade: Automatic
• Pay Mode Terms: L/C (Letter of Credit),T/T (Bank Transfer),D/P
• Bale Size: As per specification

Hydraulic Presses : Types : H frame, C frame, 2 pillar and 4 pillar.Capacity : up to 100 tons Pneumatic Presses : Types : 2 pillar, 4 pillarCapacity : up to 7.5 tons Hydro-Pneumatic Presses : Types : 2 pillar, 4 pillarCapacity : up to 30 tons

We are offering automatic hydraulic press for fly ash bricks. This heavy duty hydraulic press has been designed specially for fly-ash bricks, with the pressure as high as 200 tonne, it can produce over 3000 bricks per hour. The casting of bricks is not done on pallets, but, directly on a rubber belt which conveys the brick to be hand picked and stacked on the manual hydraulic pallet truck, therefore the hassle of pallets is eliminated. It is a p.l.c. Controlled machine making it easier to use and efficient for high production. This automatic hydraulic press for fly ash bricks has total weight of 750 kgs. Along with roller pan mixer, conveyor belt and manual hydraulic carts.

• Voltage: 440V
• Frequency: 50 HZ
• Phase: Three Phase
• Punch Capacity: 30x20mm
• Dimensions: 1550x900x1930mm
• Body Material: MS

• Worktable Length: 2000mm
• Open Height: 335mm
• Throat Depth: 200mm

Structure of Hydraulic Press Brakes: 1)The all-steel-structure of Newcore Global Pvt. Ltd  Press Brakes consist of side frames, ram, I-Beam and pair of levers manufactured from ultrasonically tested steel plates. 2)All sections are designed to give minimum deflections to maximum rigidity as per international standards. 3)Pair of hydraulic cylinders are synchronized by a heavy duty torque tube welded to the levers. This offers absolute parallelism between them and table working surfaces. Performances of Hydraulic Press Brakes: 1) All steel welded construction- high strength and good rigidity. 2) Hydraulic top drive–steadiness and reliability. 3) Mechanical leveling- torsion bar keeps synchronous operation and high precision. 4) Mechanization – adjust device of back gauge and ram stroke by operator hand rail. 5) Transit protection- whole machine guarding with safety interlocker. 6) Deflection compensator built into bed top. Application of Hydraulic Press Brakes: Hydraulic Press Brakes are primarily used for bend different kind of sheets into the desired angle. These machines are especially applicable for: Aluminum Mild steel Stainless steel Copper Benefits of Hydraulic Press Brakes: 1)Low tooling cost 2)Easy & Quick setting 3)Enormous versatility 4)Accurate repetition & bending 5)User friendlyEasy maintenance 6)Standard spares, hence easy availability
