INNOVATIVE PACKTECH MACHINES PVT. LTD. Noida Extension, Uttar Pradesh

Voltage : 415 VAC

Motor Power : 2HP

Capacity : 100 Kg

Voltage : 380 V

SEMI-AUTOMATIC VACUUM, NITROGEN FLUSHING& SEALING MACHINE(VNS)Semi-Automatic Pneumatically Operated vacuum, nitrogen flushing& sealing machine is use to pack and seal product in pre-formed pouches made out of heat seal able laminated film to enhance the self life of product such as solids, powder, granule, roasted or fried snack, wafer, nuts rice and pulses etc.Features:5 -10 Pouches /min Pouch Dimension: L 75mm-300mm.W 75mm to 280mmCompressed Air Required 10 cfm@ 6 Bar.Power Supply: 220 V AC, Single Phase, 50 Hz, 2.5 KW.*Speed of the machine depends on: Size of the pouch, Degree of vacuum required, Packing material, Ty Dimension : L: 1110 mm., W 820 mm., H: 1800 mm.Net Weight : 280 Kg.

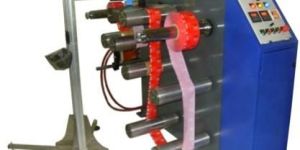

Rewinding Machine ( Doctoring Machine)Innovative Packtech Presents unwinding & Rewinding machine Model IE-400 suitable for high precision marking & coding for roll form printing materials like polyester poly, BOPP, paper poly, Aluminum Foil with hydro-pneumatic web control and alignment device . It is used widely for online printing using Inkjet printer or other coding units at high speed . Features:Max. Parent reel dia: 400 mm Max. rewind reel dia:400 mm Max. width of reel: 400 mm Max. Designed Speed : 120 mt./Minute Unwind/Rewind core Size :76 mm Brake :1.5- 2.5 kg magnetic Powder Brake (optional)Web Aligner :Pneumatic Hydraulic Motor: 1hp Dc Motor with Reduction Gear Box.48 pole AC techno generator

Preform Pouch Making MachineBag Making Machine is a PLC Controlled, Servo Driven intermittent movement machine for making three-side/center seal bag, zipper bag, and standup bag with superior seal integrity at very high speed. Features:Web Width: 1000mm Speed: 8-25 mtr/min (Depend on bag size & laminate structure)Power Supply & Consumption: 3 Phase 415V,AC, 50 Hz, 15 KwAir Consumption: 10 cfm @ 6 Bar (May Varies with optional attachment)Water Supply & Consumption: 8-10 liter/minute at normal temp. Dimension : 9000 x 2200 x 3000mmNet Weight : 3.5 Ton approx.Optional : Handle Punch, web Aligner, Auto Stacker etc. Also available models with stepper motor Indexing

Driven Type : Electric

Voltage : 440 V

Power : 5.5 KW

Voltage : 415VAC

Voltage : 440 V

Material : Polypropylene(Belt)

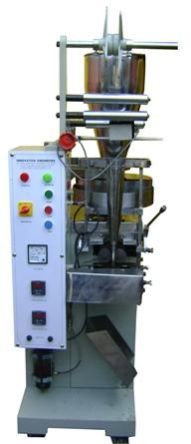

Form Fill Seal Machine _powderForm Fill Seal Machine, can pack Granules, Powder Products such as Tea ,Coffee, Spices, Salt, Tobacco, Mouth Fresher, etc in a 3 side/4 side seal sachets. Features:Pack Size : 10gms-100gms Roll Width : 150mm(Min) - 300mm(Max)Repeat Length : 50mm(Min) - 150mm(Max)Speed : 40-50PPMType of Bag : Center Seal/3 side seal/4 side sealPower Supply : 220VAC, Single Phase,50HzConsumption : 2 to 2.5 KWProduct Contact Parts : SS-304/316L Dimension : Net Weight : 280 kgsOptional :

Voltage : 415 VAC

Capacity : 4-5 ton

Material : SS,CS

Voltage : 220 V/415 VAC

Bag making machine (Brick Shape)Controlled by P.L.C, Fully Automatic Rectangular shape type Form Fill and Seal is an intermittent movement Machine, suitable to pack various powders, Granules, like Tea, Coffee, Rice, Pulses, sugar, cereals etc. up to 1000 gms. Machine can be equipped with Vacuum Chamber where the air of the pouch can be evacuates to get the unique vacuum rectangular shape pouch. The Vacuum rectangular shape Pouch is a good substitute of line carton, which saves packaging cost about 45% approx.Features:Pouch Type: Rectangular Shape /Carton Shape Automation: PLC Controlled, PID Based Temp. ControllerProduct Contact Part: SS304/SS316Speed: 20-50 ppm Power Supply & Consumption: 415V, A. C, 3 Phase, 50 Hz., and 10 Kw.Air Consumption: 24 cfm at 6 Bar.Filling System: Cup Filler For Generally consistent bulk density, Weigh Filler for Granules, Auger F Dimension : Length 3800mm, Width 2500mm Height 3000mmNet Weight : 3500kg. (APPROX.)Optional : Coding unit, Dust Collection System and Web Aligner etc.

Material : Mild Steel

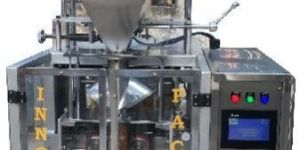

Product Specification VFFS Machine with Auger Filling SystemThe VFFS (Volumetric Cup Filler) Collar Type Machine is suitable for packing granules various applications like Pulses, Rice, Sugar, Suji, Tea, Snacks, Pesticides,etc Features:Pack Size : 100gms-1000gm Roll Width : 150mm(Min) - 400mm(Max)Automation : PLC Controlled, PID Temp Controller, HMI Speed : 40-50 Bag/Min (Depend on the product and Quantity to be packed)Type of Bag : Center SealPower Supply & Consumption: 415 V AC, Three Phase, 50 Hz, and 3.8kw.Consumption : 3.8 KWCompressed Air Required : 6CFM@6 BarProduct Contact Parts : SS-304 Dimension : Net Weight : Optional : Batch Coding Device, Nitrogen flushing unit, Infeed conveyor, Outfeed conveyor, Batch cutting unit, Pouch gusseting unit
