Wireless Kit ( Rf Communication)
1 Piece(s) (MOQ)
We are offering wireless kit (rf communication). Wireless rf communication module used for communication between pc & robot , remote & robot , many more application can be made easily. wireless module includes: 1. Rf transmitter and receiver module @ 433 mhz. 2. Rf encoder module 3. Rf decoder module.
...more
Usb Card
1 Piece(s) (MOQ)
We are offering usb card.it is a ftdi chip based card which convert usb to serial.
...more

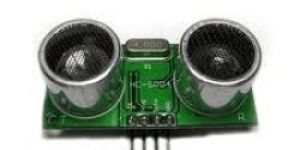

Ultrasonic Sensor Module
1 Piece(s) (MOQ)
We are offering ultrasonic sensor module (hc-sr-04). quick response, high sensitivity ultrasonic module with narrow fade zone. specification: working voltage : 5v(dc) working current : max 15ma working frequency : 40hz output signal : 0-5v (output high when obstacle in range) sentry angle : max 15 degree sentry distance : 2cm - 450cm high-accuracy : 0.3cm input trigger signal : 10us ttl impulse echo signal : output ttl pwl signal size : 45*20*15mm
...more
Ultrasonic Sensor Module
1 Piece(s) (MOQ)
We are offering ultrasonic sensor module (gh-311). 1.specification： voltage : 6-12v(dc) current : max 2ma output signal : 0-5v (output high when obstacle in range) sentry angle : max 15 degree sentry distance : 2mm-8000mm frequency : 40khz. pin : 3pin supply module with 6-12v, the output will be 5v while obstacle in range, or 0v if not. the out pin of this module is used as a switching output when anti-theft module, and without the feet when ranging modules, module working principle: (1) adopt io trigger through supplying at least 10us sequence of high level signal, (2) the module automatically send eight 40khz square wave and automatically detect whether receive the returning pulse signal, (3) if there is signals returning, through outputting high level and the time of high level continuing is the time of that from the ultrasonic transmitting to receiving. test distance = (high level time * sound velocity (340m/s) / 2, note: (1) this module can not be used for distance measurement. (2) the module should be inserted in the circuit before been power, which avoid producing high level of misoperation ；if not, then power again.
...more
sensor
1 Piece(s) (MOQ)
We are offering sensor features: it is used to detect the presence or absence of objects near the robot. it gives digital logic output.
...more
Triple Axis Accelerometer Mma7361
1 Piece(s) (MOQ)
We are offering triple axis accelerometer mma7361. introduction the mma7361 from freescale is a very nice sensor with easy analog interface. The mma7361 is a 3.3v part and outputs an analog voltage for each of the three outputs. This voltage is in ratio to the measured acceleration and to the supply voltage (ratiometric). It has selectable sensitivity by dip switch. you will need some extra hardware to convert this analog signal to a usable digital one. the arduino is really good option for it. specification voltage:3.3-8v selectable sensitivity:±1．5g/6g low power:500μa @ measurement mode，3μa @standby ； high sensivity: 800 mv/g @ 1.5g； interface:analog output low pass filter size:23x26mm weight: 5 gram shipping list mma7361 (1 unit) analog cable (3 units)
...more
Arduino Duemilanove - (328)
1 Piece(s) (MOQ)
We are offering arduino duemilanove. Introduction the trduio duemilanove is 100% compatible with original with arduino duemilanove. the arduino duemilanove is a microcontroller board based on the atmega328 (datasheet). It has 14 digital inputoutput pins (of which 6 can be used as pwm outputs), 6 analog inputs, a 16 mhz crystal oscillator, a usb connection, a power jack, an icsp header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a usb cable or power it with a ac-to-dc adapter or battery to get started. summary microcontroller atmega328 operating voltage 5v input voltage (recommended) 7-12v input voltage (limits) 6-20v digital io pins 14 (of which 6 provide pwm output) analog input pins 6 dc current per io pin 40 ma dc current for 3.3v pin 50 ma flash memory 32 kb of which 2kb used by bootloader sram 2 kb eeprom 1 kb clock speed 16 mhz specification size:75x54x15 mm weight:25 gram shield compatibility arduino duemilanove prototype shield (compatible) arduino io shield (compatible) arduino lcd shield (compatible) arduino motor shield (compatible) arduino ethernet shield (compatible) product includes: arduino compatible board usb cable
...more
Trduino Self Learning Kit - (arduino)
1 Piece(s) (MOQ)
we are offering Trduino Self Learning Kit.We feel proud to introduce the best product of industry. From now to study about Arduino platform you are not supposed to go to classroom or any institution. Just be at home and learn the Arduino. We will always be with you in process of learning. Kit contents: 1x DFRduino Duemilnove 328 Board 1x Prototyping Shield 1x USB Cable 1x Mini breadbord 20x M/M Jumper wires 2x Red LED , 2x Green LED , 2x yellow LED 1x 7-Segment Red LED 1x 12Volts , 1 Amps power adapter 1x Sound sensor 1x Touch sensor 4x Mini Pushbutton switcher 10x Resistor 220R 10x Resistor 1K 10x Resistor 10K CD including tuits and sample programs
...more
Temprature Sensor (Analog Output)
1 Piece(s) (MOQ)
We are offering temprature sensor (analog output). It gives analog output.
...more

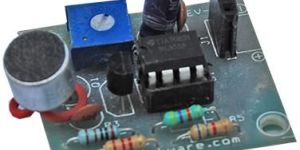

Sound Sensor
1 Piece(s) (MOQ)
We are offering sound sensor features: it is used to detect sound. it gives digital logic output.
...more

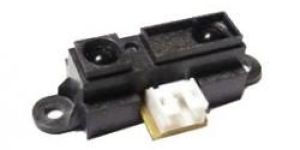

Sharp Sensor Gp2y0a21
1 Piece(s) (MOQ)
We are offering sharp sensor gp2y0a21. Feature summary operating voltage: 4.5 v to 5.5 v average current consumption: 30 ma (typical) distance measuring range: 10 cm to 80 cm (4" to 32") output type: analog voltage output voltage differential over distance range: 1.9 v (typical) response time: 38 ± 10 ms package size: 29.5×13.0×13.5 mm (1.16×0.5×0.53") weight: 3.5 g (0.12 oz).
...more
Seven Segment Display Module
1 Piece(s) (MOQ)
We are offering seven segment display module.seven segment display (2 digit) is compatible with all our development boards.
...more
Rtc/eeprom Module
1 Piece(s) (MOQ)
We are offering rtc/eeprom module.
Robotics Self Learning Kit
1 Piece(s) (MOQ)
We are offering robotics self learning kit.thinnkware feel proud to introduce the best product of industry "robotics self learning kit". kit content: robotics parts - chassis , gears , 150 rpm bo motors , nuts , screws etc. avr development board with all inbuilt interfacing. avr usb programmer sensor (tsop sensor) - 2 usb cable 6 cell battery holder with dc jack single pin burge strip (f2f) - 6 program cd ( datasheet / application notes/software/ sample program) assambly guide. features: using this product it will be easy to make different robotics application some of the application mentioned below: 1. Line follower 2. Obstacle robot 3. Edge avoider 4. Wall following robot 5. Path remembering robot
...more

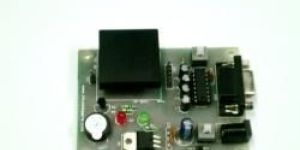

Rfid Card Reader
1 Piece(s) (MOQ)
We are offering rfid card reader. Rfid card reader module is used in various projects and also could be used for learning prospects. 125 khz rfid reader with serial and weigand26 output. features: easy interface to computer serial terminal through db9 connector or direct interface to microcontroller via onboard connectors. Onboard buzzer and led for indicating card detection. Onboard switch (sel) for selecting serial/ wiegand26 output format.(when pressed gives serial output else provides wiegand26 output) technical specifications: supply voltage – 9v to 12v dc operating current – 50ma operating frequency – 125 khz read distance – 10cm.
...more

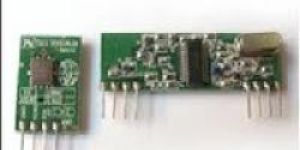

Rf Tx & Rx - 4/8 Pin Pair
1 Piece(s) (MOQ)
We are offering rf tx & rx - 4/8 pin pair. This is popularly used for remote control.it is 4/8 pin device. features: frequency: 433mhz modulation: ask transmitter input voltage: 3-12v includes transmitter and receiver.
...more
Rf Transmitter
1 Piece(s) (MOQ)
We are offering Rf Transmitter etc.features: frequency: 433mhz modulation: ask transmitter input voltage: 3-12v includes transmitter and receiver this is the 315mhz rf low cost transmitter/receiver pair.
...more
Relay Panel
1 Piece (MOQ)
We are offering relay panel spdt 12v relay card for switching applications. 8 relays for switching a maximum of 8 peripheral devices. each relay can be controlled separately. protection against back emf is also provided using diodes and transistor for switching. separate 8 pin connector for 8 relays. led for each relay to show which relay is switching. pull up provided for better operation.
...more
Prototype Sheild
1 Piece(s) (MOQ)
We are offering prototype sheild for arduino. introduction this is a design for an open-source prototyping shield for arduino ngdiecimila. It has tons of cool features, to make prototyping on your arduino easy. Shipped with fully assembled. features reset button up top icsp header lots of gnd and +5v rails dip prototyping area makes it easy to add more chips soic prototyping area above usb jack for up to 14-pin soic chip, narrow medium or wide package. a 'mini' breadboard included extra 6mm button
...more
sensor
1 Piece(s) (MOQ)
We are offering sensor note : you can search for datasheet.
...more
Plugsmd
1 Piece(s) (MOQ)
We are offering plugsmd. plugsmd " smd component prototype board " unables students professionals use smd components in their projects. it supports many packeges option: 1.tsop , tssop 2. Qfn , qfnp 3. Sot 4. Dip many more...
...more
Pir Motion Sensor
1 Piece(s) (MOQ)
We are offering pir motion sensor. Pyroelectric device that detects motion by measuring changes • detection range up to 20 feet • compatible with all microcontrollers • ideal for alarm systems, motion-activated lighting and robotics application.
...more
Piezo Disk Vibration Sensor
1 Piece(s) (MOQ)
We are offering piezo disk vibration sensor. Introduction the dfrobot vibration sensor buffers a piezoelectric transducer that responds to strain changes by generating a measurable output voltage change which is propotional with the strength of vibration. Specification power supply:5v interface:analog
...more
Microcontroller
1 Piece(s) (MOQ)
We are offering microcontroller.
