Leaf Spring Hanger Dealers in Noida

• Country of Origin: India
• Type: Spring Hangers
• Material: Carbon Steel, Metal
• Length: 0-25inch, 25-50inch, 50-75inch
• Certfication: ISO 9001:2008 Certified
• Weight Capacity: 0-5Tons, 10-20Tons, 20-40Tons
• Hanger Thickness: 0-50mm, 100-200mm, 50-100mm
• Brand Name: Easyflex

Spring Hangers consist of freestanding. laterally stable steel springs in series with a molded elastomeric element assembled into a stamped and welded hanger bracket. The hanger brackets and the springs are powder coated. Spring vibration isolation hangers are designed to provide high efficiency isolation from structure-borne vibration and noise. Springs are color-coded according to load ratings and are designed for 50% overload.

• Size: 1/2 inch
• Material: Rubber
• Type: Constant Spring Hanger
• Color: Black,Blue And Silver
• Finishing: Painted
• Usage/Application: Industrial
• Technique: Hot Rolled

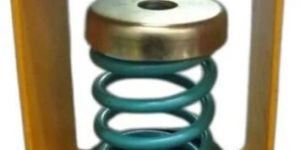

Style MIH/S are Helical Spring Hangers of free standing design, laterally stable in series with an elastomeric element Bottom Neoprene Cap isolate high frequency structure borne vibration and noise Cap with projecting bushing hold the Spring in place & it also provide protection against steel to steel short circuiting due to rod misalignment Rod can swing through an arc of 30 degrees from side to side in any direction before contacting bushing Hanger is provided with Pre- compression Plate with adjustment Nut on the bottom rod to pre load and create plate clearance

• Application: Industrial
• Material: Mild Steel
• Brand Name: Easyflex
• Length: 57 mm
• Load capacity: 21 - 8,200 lbs
• Isolator Model: EFSH 20/15
• Rated Load: 15 Kg
• Deflection: 20 mm
• Width: 38 mm
• Height: 70 mm
• Top Hole: 12 mm

spring hangers, Air Springs, Silent Bloc Bushes, seismic bearings
