N. R. Industries Sector 10, Noida, Uttar Pradesh

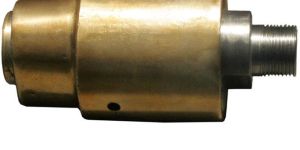

We are offering rotary joint our offered rotating unions (also known as rotary swivels, rotary couplings, rotary joint) are precision mechanical devices used to transfer fluid from a stationary source, such as a supply pipe, into a rotating piece of machinery. A typical rotating union features: � ball bearings to support the rotating component (attached to the machinery) against the stationary component (attached to the stationary supply source) � mechanical seal to seal the media passing through the rotating union mechanical seal face materials and secondary seals will vary depending upon the fluid properties & operating conditions of the application. Likewise, bearing type, design, material & construction will also vary with application. rotating unions are used in numerous manufacturing processes to cool, heat or transfer fluid (pneumatic or hydraulic) power. Application in � air, � water, � steam, � hydraulic, � h-oil duty. the product range includes:- � mono flow rotary unions, � dual flow rotary unions � multi-channel rotary unions.

Multi-Tube Air Shaft provides superior Gripping on any type of Core used. The Multi Bladder Shaft is made of Aluminum Extrusion with steel journals shrink-fitted for High Torque capability. Pays for itself in very little time due to decreased down time during roll changes. Light weight Shaft Can tight the out size core. One can mount the core of 2 mm Each gripper offers a designed chamfer for easy core insertion Can be repair easily.

Type : Quick

Material : Metal

Color : Black, Grey

Shape : Round

Features Multi-Tube Air Shaft provides superior Gripping on any type of Core used. The Multi Bladder Shaft is made of Aluminum Extrusion with steel journals shrink-fitted for High Torque capability. Pays for itself in very little time due to decreased down time during roll changes. Light weight Shaft Can tight the out size core. One can mount the core of 2 mm Each gripper offers a designed chamfer for easy core insertion Can be repair easily. We strive to meet the needs of clients by providing smarter solutions that improve quality, lower costs, reduce damage, enhance workplace safety and increase production time by saving time. In addition to providing quality products, customer service is a priority and we strive to make doing business with us easy so that you can spend time focusing on growing your business. Technical Specifications Body Alloy steel / Aluminium Load Capacity Upto 4000kg Length Upto 4.0 meters End Piece Alloy steel (EN-24), Hard Chrome Plated & Tempered Available Sizes 25mm, 38mm, 50mm, 63mm, 76mm, 100mm, 120mm, 152mm, 202mm

Features Mechanical Shafts Tighten the core with the help of key. Pays for itself in very little time due to decreased down time during roll changes. Eliminates possibility of core damage. Standardized design allow us to manufacture the shaft in any size diameter Each gripper offers a designed chamfer for easy core insertion No parts to remove or lose. Maintenance Free. We strive to meet the needs of clients by providing smarter solutions that improve quality, lower costs, reduce damage, enhance workplace safety and increase production time by saving time. In addition to providing quality products, customer service is a priority and we strive to make doing business with us easy so that you can spend time focusing on growing your business. Technical Specifications Body Alloy steel / Aluminium Load Capacity Upto 3000kg Length Upto 3.0 meters End Piece Alloy steel (EN-24), Hard Chrome Plated & Tempered Available Sizes 25mm, 38mm, 50mm, 63mm, 76mm, 100mm, 120mm, 152mm, 202mm

Ink Mixing Roller Features We are providing the complete range of Ink-Mixing Roller from high quality aluminium. Our main aim is to fulfill the customer needs. We are the Leading manufacture of Ink-Mixing Roller from 18 years. Automatically mix and Stir the ink in the ink tray Save the cost of labor to stir the ink Long-time use Save ink patches on film and hence reduce the wastage Helps in increasing the printing Quality by mixing the ink properly We strive to meet the needs of clients by providing smarter solutions that improve quality, lower costs, reduce damage, enhance workplace safety and increase production time by saving time. In addition to providing quality products, customer service is a priority and we strive to make doing business with us easy so that you can spend time focusing on growing your business. Technical Specifications Application Rotogravure printing Material High Quality Aluminium Diameter 25mm,30mm,40mm 50mm and on special need of customer Available Sizes 200mm to 1800mm

We are offering doctor blade etc. We are offering doctor blade. With high carbon spring steel imported from sweden and germany excellent producing technology, weoffer different kinds of super edge doctor blades suitable for flexo, coating and rotogravure machines. Our complete range of products can meet each company's individual printing needs. We win the customers' appreciation due to the consistent quality and highest durability of our doctor blades. blade width :10 - 60mm blade thickness :0.15mm / 0.20mm and others on demand of customer lamella : 50-125 m +/- 5m on request specified lamella can be provided benefits : 1) the main benefit of doctor blade is to remove the ink from the impression cylinders. 2) increase quality of film. 3) our blade is made from imported material which prevents the damage on cylinders. 4) highly durable.

Features N.R.Is differential air shafts provide the most extremely sensitive tension control for light gauge and extensible films. It is designed to provide affordable solutions to slip differential winding, with a wide range of tension. Provides a number of features not available on other shafts: Completely spacer less setups Sensitive tension control for light gauge films No line loss due to side loaded applied tension To load the cores, operators simply slide cores across the shaft Improved rewind quality Adjustable Ball Bearing Keepers capable of compensating speed variation due to gauge variation with multi cores. Technical Specifications Body Alloy steel / Aluminium Load Capacity Upto 3000kg Lug Steel/Rubber Length Upto 3.0 meters Air Pressure 0 to 6 Bar End Piece Steel, Hard Chrome Plated & Tempered Available Sizes 3”, 4”, 6”, 8”, special size also available

We are offering air expanding shaft grippers are slit through the metal pipe & pneumatic bladder is used for inflating. The grippers give positive holding of the core. standardized design allow us to manufacture the shaft in any size diameter the same design can be offered for heavy duty to light capability shaft simple design ensuring a long service staggered lug design makes it best in winding application each lug offers a designed chamfer for easy core insertion for a full range of core sizes hardened lugs available for use with metal cores straight, staggered or offset patterns material pipe: steel or aluminum luge: steel, rubber or plastic size core id from 2" to 12� length up to 6000 mm("240") cantilever shaft various size of lug (gripper) contact : nr_industries@hotmail.com or at tushar jain-9891578427

Features We are the manufacture of Plastic Core for use in Paper and Packaging industries which is designed to be moisture proof and temperature resistant. These plastic reel core plugs are widely used in Paper Mills. Our wide range of Plastic Core Plugs come in a variety of non-threaded and threaded styles. High Quality Wide Range of sizes and types available Advanced and custom designs Completely recyclable plastics Technical Specifications Body HDPE, PPCP resins Available Sizes 3”, 6” and as Per Size and Design

Features Rotary Unions are self-contained and self-supporting rotary seals used to transfer fluids such as steam, water air or oil, to and from rotating machinery. Advanced Sealing System Superior Alignment Resists Debris Build-Up Save ink patches on film and hence reduce the wastage Helps in increasing the printing Quality by mixing the ink properly We strive to meet the needs of clients by providing smarter solutions that improve quality, lower costs, reduce damage, enhance workplace safety and increase production time by saving time. In addition to providing quality products, customer service is a priority and we strive to make doing business with us easy so that you can spend time focusing on growing your business. Technical Specifications ApplicationDryers & Chemicals, Food Processing, PVC film, Paper, Water, Soap, Textile, Oil. Material Aluminium, Brass and Casting Materials TEMPERATURE (Max) Water : 95° C Thermic Fluid : 120° C Steam : 150° C PRESSURE (Max) Water : 15 BAR Thermic Fluid : 10 BAR Steam : 8 BAR Available Sizes 1/2", 3/4", 1", 2"
