Om Engineering Sector 5, Noida, Uttar Pradesh

We are one of the specialized Surgical Blade Dies Manufacturers and Suppliers. Our Surgical Blade Dies are made under pillar set, consisting of 4x pillar bush in combination with 4x guide pins to maintain the alignment of the Tool/Die. Die plate is made of imported D2/HSS/Carbide metal to get the maximum production easy to change the inserts to reduce the cost of repairing, while stripper plate and punch plate are made of EN31 metal. WIRECUT for the same is done on imported machines in 3-4 pass. Our Surgical Blade Dies are easy to grind/sharpen and are easy to assemble, with the continuous production procedure. Available Model : All type of blades tooling is available for Surgical Blade, Gouge Blades, Stitch Cutters, Skin Graphing blades, Post Mortem Blades, Dental Blades, Biopsy Punches, microtome blades, hobby blades, ophthalmic knifes and industrial blades etc. Used In : Surgical Blade manufacturing industries, Industrial blade Manufacturing industries.

Material : MS

Application : Industrial

Brand Name : Om Engineering

Om Engineering is the foremost Manufacturer and Supplier of Pillar Die Set. The Pillar Die Set comprises pillar bush in the pillar set/die set, which is made of EN31 metal with HRC 60-62. Its accuracy is same as is in microns and the price depends on the size of the Pillar Die Set. The Pillar Die Sets are manufactured with precision, ground top and bottom bolster plates. Available Model : Pillar sets of all sizes is available Used In Press components manufacturersAutomobile industriesStampings industriesSheet metal industries

We are offering Edm Drilling Machine. We the om engineering take pleasure to inform you that we have installed the latest high accuracy imported edm drilling machine (taiwan) to cater the job working requirements of the industry. we would also like to inform that we are equipped with good quality necessary measuring instruments to carry out in-house inspections in order to minimize the rejections etc and ensure timely deliveries as per the expectations of the customers. Our machine is capable of working on 3 axis jobs. Drilling between 0.3mm to 3mm job height 200mm with the accuracy of microns from top to bottom

We are offering edm drill machine. We the om engineering take pleasure to inform you that we have installed the latest high accuracy imported edm drilling machine (taiwan) to cater the job working requirements of the industry. we would also like to inform that we are equipped with good quality necessary measuring instruments to carry out in-house inspections in order to minimize the rejections etc and ensure timely deliveries as per the expectations of the customers. Our machine is capable of working on 3 axis jobs. Drilling between 0.3mm to 3mm job height 200mm with the accuracy of microns from top to bottom

We are offering cnc wire cutting machine. We take the pleasure to inform you that we have the latest high accuracy, high speed wire cut machine to cater the job working requirements of the industry. we would also like to inform that we are equipped with good quality necessary measuring instruments to carry out in-house inspections in order to minimize the rejections etc and ensure timely deliveries as per the expectations of the customers. Our machine is capable of working on 4 axis jobs, top bottom of different shapes and gears i.e. Complex profiles jobs etc. we also undertake specialized job working application requiring 0.10mm wire we look forward to your valued orders and a long business association with your esteemed organization. Assuring you of our best services at all times.

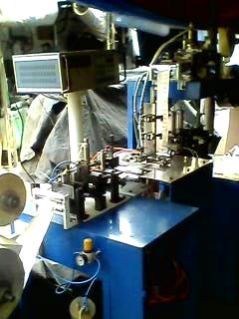

We are one of the foremost Manufacturers and Suppliers of Automatic Blade Packing Machine. Our Automatic Surgical Blade Packing Machine is suitable to pack approx. 50 to 60 blades in a minute. Our Automatic Blade Packing Machine is sturdily built on MS channels. The blade will move out of the magazine (About 1000 blades filled in a magazine at a time) horizontally to the VCI Paper pasted on aluminum foil. Available Model Fully AutomaticSemi-Automatic Used In : In blade manufacturing industries Technical Specifications The machine can pack standard CS and SS blades, the user just needs to provide the packet drawing.Two nos foil unwinding station can be provided, with the suitable arrangement to control the foil tension.Two VCI sealing stations can be provided on either side of sealing station.The machine has two stations for embossing on to the AL-foil for stamping of MFR/EXP date etc.A feeding station can be provided where the blades could be stacked. The feeder can be used for any one slot size of blade at a time.The sealing stations have arrangement to accommodate the maximum width of 100mm.The machine has relay controllers and a temperature of 250*C can be attainable.The panel of machine can be relay based and have provision of auto/manual modes.A very neat looking panel is fitted.All the pneumatic parts used are of best quality.

As a trusted Manufacturer and Supplier of Automatic Buffing Machine, we present sturdily (from angle and channel section) built Automatic Buffing Machine. The machine is suitable for buffing of surgical blades. Our Automatic Buffing Machine is equipped with single buffing head with two loading and unloading arrangements. The surgical blades to the ground are fed into two magazines. Single blade is taken out from the stack of each magazine and is transferred to the fixture plates mounted on to the slide by transferring arrangement. The slide retracts and buffing starts one after other on both the blades. When the slide reaches to its end position, the blades (already buffed) are automatically transferred to the unloading section. While returning, the slide reaches to its original position and the blades are again fed on to the fixture plates by transferring arrangements. All this process is done in continuation. The automatic buffing of 50 to 60 blades per minute is a very unique feature of this product. Available Model Fully AutomaticSemi-Automatic Used In Surgical blades manufacturing industriesIndustrial blades manufacturing industries Technical Specifications Total power requirement for the machine is 1 KW.The machine̢۪s air requirement is about 20 lpm at 5 kg cm.Buffing of all size of surgical blades is possible with our machine, just by changing some parts/attachments.A very neat looking panel consisting genuine electronic part is fitted.All the pneumatic parts used are of STNC make or equal ant.Floor area of the machine is approx. 2 ft. x 3 ft.Weight of the machine is approx. 300 kilo grams.The loading and unloading of blades is automatic.Dressing of buffing wheel and applying of paste to the buffing wheel is also done automatically.

We are one of the renowned Manufacturers and Suppliers of Automatic Surgical Blade Grinding Machine, which is very robust in construction and suitable for the grinding 10 to 15 surgical blades per minute.The surgical blades to the ground are fed into a magazine. Single blade is taken out from the stack and arm is fitted with picking arrangement which transfers the blade on the first turntable. Then the slide retracts and grinding starts with curve side first. On return as slide reaches its original position, the blade is again picked up by the second arm and transfers the same to the second slide (Turntable) with upside down movement. On the same time, a new blade is fed on to first slide and grinding is done on both the blades together. After that the third arm picks the blade from second turntable and transfers it to unloading magazine. All this process is done at the same time. Our Automatic Surgical Blade Grinding Machine enables the automatic grinding of all possible blades, automatic dressing of wheel and automatic lubrication. Available Model Fully AutomaticSemi-AutomaticManual Used I : Surgical blade manufacturing industries Technical Specifications Total power requirement for this machine is 4 KW.The machine requires floor area of 1.25m x 2m.A 100 liters water tank is provided to the machine along with a magnetic separator.The machine air requirement is about 40 lpm at 5 kg cm.A 100 liters hydraulic tank is provided with the machine.Grinding of all size of surgical blades is possible with our machine just by changing some of the parts/attachments. Only one particular size is supplied with the machineThe machine is supplied with auto feed arrangement for dressing the grinding wheel. The outer portion of the wheel is properly controlled (in microns). This helps in reducing the grinding wheel consumption.A very neat looking panel consisting of microprocessor with PLC is fitted.All the pneumatic parts used are of the best quality.

We present high quality sheet metal tools/progressive dies, which are widely used for the manufacturing of high quality pressed components especially used in automobile sector. It is fabricated using premium quality raw material like D3, D2, HSS and Carbide depending on party`s requirement. These tools are appreciated for assured performance and efficiency. Even though we design the Tool in such a way that the punching, bending, embossing, cutting all the process done in the same tool, all this depends on the component to be made. We make sure that the quality norms are duly followed during the manufacturing process, so that the clients can get nothing but the best. Used In Auto industriesMechanical industriesSheet metal parts manufacturers
