• Operating Voltage: 230V AC ±10%, 50/60Hz

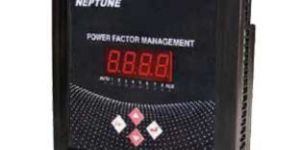

Intelligent RM Series P.F. Controllers are used for measurement and control of P.F. control units for central reactive power compensation. The P.F. measured by Neptune RM Plus is compared with the set values and in order to provide necessary compensation. P.F. Controller switches capacitor banks ON & OFF automatically. RM Plus is Single Phase CT Sensing micro controller relay, designed for above application in 144×144 case for flush mounting with rear plug-in connectors. Microcontroller based programmable RM Plus series relays are manufactured with 8 & 12 capacitor steps. It can work either in automatic or manual mode.

• Display: 4 Digit, 7 Segment LED display
• Auxiliary Supply: 90-550V AC, 50-60Hz
• Rated input voltage: 40-300V(L-N), 50-530V(L-L), 45-65Hz
• Rated Input Current: Nominal 5A AC (MIN 50mA, MAX 6A), Single CT Sensing
• Burden: 20 mOhms
• CT primary: 1-9999A(For CT.S=1); 5-9999A(For CT.S=5)
• CT Secondary: 1 or 5A
• No. of Relay stages: For PM-108 : 8 Relay  For PM-112 : 12 Relay
• Trip indication: Alarm relay turns ON & ALM (Alarm) LED blinks
