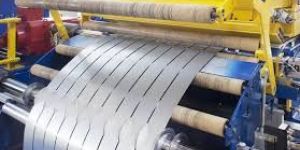

Slitting Line functions as a constant speed type. Firstly, the coil is loaded on the coil car by E.O.T. crane and brought to the uncoiler by operating the coil car. Coil car centralizes the coil with the uncoiler mandrel and the coil is mounted on the uncoiler which results in the expansion of Mandrel. The Snubber roll rotates the coil. Peeler breaks the straps and brings the pre end upto Pinch roll. The Pinch roll drives the coil end upto the slitter. Then its drive is disconnected. Slitter moves the Slitted Strips further. Slitted Lines are threaded through loop table and drag tensioner into the recoiler drum. Recoiler winds one turn on loose coil. Then drag tensioner and loop are put into operation. Slitter and recoiler run simultaneously in synchronization. As the coil build up, the recoiler RPM correspondingly goes down to keep desired constant line speed. This process goes on until the end of coil on uncoiler. The Slitted coil is pushed on the exit coil car trolley through a pusher plate operated by hydraulic cylinder. The side Slitted Scrap is wound on the scrap winder units provided on both sides of the slitter. Features High quality of metal usedCorrosion resistantAccurate working

Newcore Global Pvt. Ltd Equipment offers slitting lines of different designs to exactly suit the customer’s requirements of production capacity, high quality of slit product, automation level, flexibility of operations and budget. The slitting line machine can incorporate latest technical innovations for Slitter Heads. Specifications of Slitting Line:  1)The materials processed in Slitting lines are: Carbon Steel Stainless Steel Aluminum Copper and brass 2)Width: coil width ranges from 100mm to 2000mm; strip width up to 80mm 3)Coil Thickness: 0.2mm-12mm 4)Coil Weight: up to 30MT 5)Coil ID: 508mm-820mm 6)Coil OD: up to 2000mm 7)Line Speed: up to 150m/min 8)Operation System: PLC automatic control system 9)Standard Power: 380V50HZ 10)Applications: for slitting strips of carbon steel, stainless steel, aluminum, copper and brass. Components of Slitting Line:  1) Coil car 2) Shear 3) Loop table 4) Uncoiler 5) Side guide 6) Tension station 7) Hold down roll 8) Slitter 9) Separator 10) Leveler 11) Scrap winders 12) Recoiler

We are a reputed manufacturer, exporter and supplier of Slitting Line Machine. These products are precisely designed utilizing premium quality raw material, procured from reliable vendors of the market and using latest technology. The offered range is tested on welldefined parameters of quality in order to offer flawlessness range of products at the clients' end.
