Solar Power Conditioning Units Dealers in Noida

• Warranty: 2 Year
• Model: SEOG Series
• Certification: IEC 61683,IEC 60068-2-(1,2,14,30),IEC 60529 (IP 21)
• Phase: Single
• Output Voltage: 230 VAC
• Charging Type: MPPT
• Power Rating: 1 KVA
• Battery Voltage: 24V
• Design: Off Grid
• Display: Graphical Lcd with Backlight
• Input Connection Type: Terminal
• Output Frequency: 50 Hz
• Degree of Protection: IP 21
• Operating Temperature: -10 to 50 Degrees C
• Efficiency: 85%
• Voltage: 1kVA

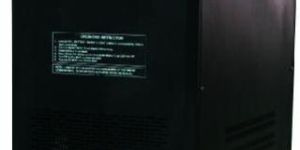

STATCON POWTECH ‘Off Grid’ series of Single Phase PCU are designed to meet the growing electricity demand of developing countries. The state of art design and intelligent control optimizes the yield of all small and medium level PV plant. STATCON POWTECH ‘Off Grid PCU’ consist of ‘MPPT’ based charge controller and bi-directional inverter with a transformer on AC side. It provides uninterrupted power to the load using solar, battery and grid input in same order of priority. In-house developed latest DSP based pure sine wave technology ensures excellent performance, protection from any kind of malfunction and the high conversion efficiency is achieved. The high conversion efficiency helps in longer battery backup. Ease of operation and plug & play type of design make it an ideal product for all uses. These ‘Off Grid PCU’ are capable of being configured for priority of solar, battery or grid as described below: SALIENT FEATURES When solar energy is sufficient then the output of MPPT charges the batteries along with feeding inverter to produce AC to meet load demand. If solar is not sufficient to charge the battery then both MPPT charger and grid charger charges the battery, in this condition max. power yields from solar to charge the battery. BATTERY PRIORITY When MPPT is not sufficient to meet load demand then the combination of MPPT output and batteries are used to feed an inverter to produce AC to meet load demand. MAINS AT PRIORITY If the battery has low voltage condition then the load is shifted to grid and batteries are charged through MPPT. If MPPT is not available to charge batteries then grid charger becomes active to charge batteries and load is fed from a grid. Once the batteries are fully charged the load is automatically shifted on solar and batteries. Statcon Powtech PCU with higher rated MPPT is available on demand. Statcon Powtech also offers ‘Off Grid PCU’ for welding sets. Statcon Powtech Pump Combo Series is capable of working with DC Pump, utilizing same solar panels installed for DC pumps.

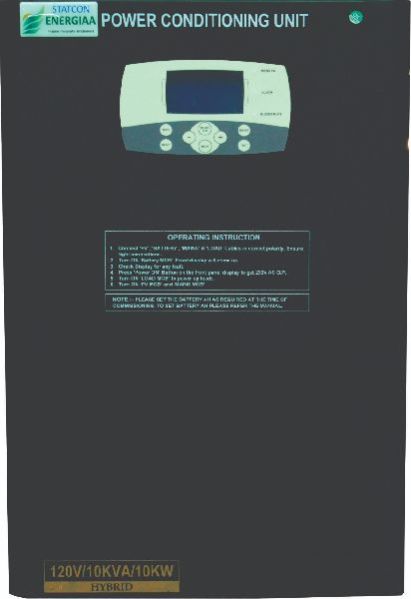

We are providing Solar Power Conditioning Unit is a complete solar power integrated system manufactured using the latest technology in both solar and inverter systems. The Solar Power Conditioning Unit has its own inbuilt Solar Inverter, Grid Charger as well as Solar Charge Controller. The in-built logic of Solar Power Conditioning Unit, is in line with our commitment of clean and green power, as it gives preference to Solar Power over Grid/DG power. The Solar Power Conditioning Unit has its own integrated system to charge the battery bank through either Solar Power or Grid or DG Power. The Solar Power Conditioning Unit also continuously monitors the charging of the battery bank on parameters, such as load, battery voltage and solar power output. When all batteries in the battery bank are fully charged to a predetermined level, the Solar Power Conditioning Unit automatically disconnects itself from the Solar or Grid or DG set, i.e. any of the sources that may be powering the system. The system then restores itself to feeding the loads from the battery bank and charging from solar power. Features Eco-friendlyContinuously monitors the charging of the batteryLatest technologyInbuilt solar inverter

• Solar Priority or Grid Priority: User Selectable
• Voltage: 220 V - 2 % Single Phase
• Maximum DC Link Voltage: 90 V
• MPPT Range: 35 V - 69 V
• Solar Charger Type: MPPT
• Solar PV Modlue: 250 Wp x 4 N
• Switching Power Device: MOSFET
• Battery Capacity: 150 mAh x 2 N
• Nominal Battery Voltage: 24 V DC
• Protections: Over Load Output Short Circuit Battery Reverse Protection Low Battery Protection Lightening/Surge Protection Solar Reverse Protection
• Thd: ≤ 3%
• Wave Form: Pure Sine Wave
• LxWxH (cm): 30.5 cm x 21.5 cm x 34 cm
• Acceptable Voltage Range: 110 V AC - 290 V AC
• Frequency: Same as mains (47 Hz -53 Hz)
• High Voltage Cutoff: 290 V AC ± 10 V AC
• Low Voltage Cutoff: 110 V AC ± 10 V AC

We are dealing in solar power conditioning units, 1. FIRST TIME IN INDIA GRID – BY PASS TECHNOLOGY WITH REAL TIME CLOCK optimizes solar usage over Grid and reduces your power bill. 2. REMOTE CONTROLL You can start and shut down through remote or even through your smart phone. 3. 5 TO 10 YEARS BATTERY LIFE with auto sensing soft ware. 4. MPPT CHARGE CONTROLLER maximum power conversion. 5. PURE SINE WAVE protects your all-sensitive gadgets. 6. LONGER LIFE smart inverter is designed for 10 years service life. 7. ALL RUNNING PARAMETERS O YOUR FINGER TIPS through multi color display shows solar usage, battery states, connected load, mains voltage & fault indication.
