Wedgelock System .
Quick Stage/ Wedgelock System is another advance form of scaffolding system for all types of scaffolding needs wherein cuplock replaces wedgelock. It provides four way fixing of the ledgers/ transoms leaving least scope for loose movement. V shaped steel pressings serve the purpose to replace bottom cups and also serve the purpose of Transsom units.
...more

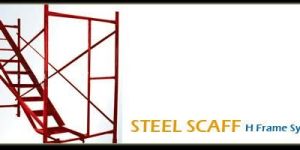

h frame system
h frame system comprises of welded rectangular frames fabricated out of 40 nb ‘b’ class tubes as 2 nos. Vertical & 2 nos. Horizontal members. The top end of the vertical members of the frame are provided with welded innerouter sockets for joining 2 frames vertically to achieve desirable height.
...more
Cuplock System
cuplock system is one of the leading scafflolding arrangements used worldwide. Its unique node point connection makes it the fastest, safe, most economic and versatile scaffolding ever conceived & designed.
...more
Adjustable U Jack
Adjustable U Jack (Stirrup Head) fabricated out of 32.00, 36.00, & 38.00 mm ø MS Bar with 4 TPI Acme/Square threads.U Head having requisite height fabricated out 100X6 mm MS Flat & Malleable cast iron Cup Type, Double Handle light / Heavy duty nut. Sizes available are 350, 450, 550, 600 mm bar length.
...more

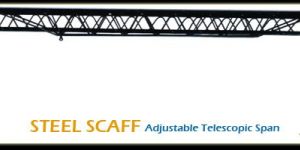

Adjustable Telescopic Span
Adjustable Telescopic Span. These spans provide maximum safety with minimum supervision. Fabricated out of 2 mm sheet lattices of 10 mm bar, and main bar of 16 mm & T section of 40 x 5 mm. it needs no intermediate support to be provided. Its available sizes with their respective opening and load carrying capacity are as under.
...more
Adjustable Telescopic Span
These spans provide maximum safety with minimum supervision. Fabricated out of 2 mm sheet lattices of 10 mm bar, and main bar of 16 mm & T section of 40 x 5 mm. it needs no intermediate support to be provided. Its available sizes with their respective opening and load carrying capacity are as under.
...more
Wedgelock System
Wedgelock System is another advance form of scaffolding system for all types of scaffolding needs wherein cuplock replaces wedgelock. It provides four way fixing of the ledgers transoms leaving least scope for loose movement. V shaped steel pressings serve the purpose to replace bottom cups and also serve the purpose of Transsom units.
...more
adjustable telescopic prop
Adjustable Telescopic Prop is one of the ideal, most economical & important part of shuttering system to support all kind of formwork to slabs, beams, walls and columns. It is fabricated out of ‘B’ Class steel tubes and is in two parts i.e. Prop Outer & Prop Inner, the outer is fabricated out of 50NB (60 mm OD) tube having threadedslotted top end, a malleable CI nut with handle for finer adjustment; the bottom is provided with welded 150X150X6 mm MS Flat Base Plate.
...more
Adjustable Base Jack
Steel Scaff [India] Pvt. Ltd. is offering a wide range of adjustable base jack in India.
...more
