VED Engineering Sector 60, Noida, Uttar Pradesh

Backed by rich industry experiences, we are highly engaged in offering a premium quality range of Water Cup Filling Machine. This machine is semi-automatic type and hence cup loading and unloading is done manually for filling beverages. The provided machine is precisely manufactured by our dexterous professionals utilizing sophisticated techniques at our production unit. Further, our clients can buy this machine from us at the affordable price. Features: Hassle free functionality Minimum maintenance Energy efficiency  Specifications: Material: Stainless Steel Weight: 300-500kg Size: Customized

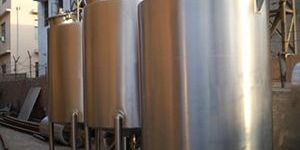

We manufacture Vertical / Horizontal Insulated Stainless Steel storage Tanks . These tanks can be with conical top and bottom or with slopped Bottom or with both ends with Dish ends. One can also have a choice of having the Storage tank with Inner vessel of stainless Steel and Outer Body after insulation with MS. The Insulated Storage tanks manufactured by us can be supplied with following accessories. With various type of Agitators and Vortex Breaker. With Manhole on top /side With Tubular legs / Conical legs / Lugs With Light and Sight Glass With Level Indicator With Various Sensors for monitoring Temperature / pressure / level. However in case above standard designs are not suitable for particular requirement, one can very well ask to redesign the Storage Tanks to suit individual requirement.

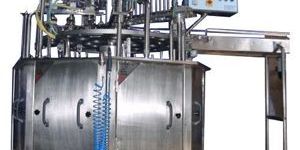

The Triple Head Automatic Cup Filling Machine offered is suitable for filling any flow able liquid specially the products like lassi, milk, juice, water & non-carbonated beverage. Features: 3000 Cups/Hr No cup no fill No cup no lid No lid no seal PLC based controls with MMI for controls & production details Cup conveyor for cup unloading Indexing is done through servo drive  Specifications: Capacity: 3000 Cups/hr Voltage: 220V/380V 50Hz Size: Customized

Sugar dissolving tank with dimple jacket for heating duly insulated & clad with stainless steel sheet.The tank is provided with suitable agitator.

We are manufacturer & exporter of Water Cooled milk Chiller. Customer can avail high quality Water Cooled milk Chillers at market leading price from us. The optimum quality raw material is used to manufacture these chillers as per the set industry standards and norms. Owing to their effectiveness and brilliant output, these chillers are widely demanded by the clients. Features: Customized solution Low maintenance cost Durability Easy installation Perfect cooling Performance oriented Easy operations Functional efficiency Rugged construction

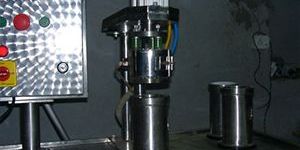

The machine offered is suitable for filling any flow able liquid specially the products like liquid yogurt,lassi,milk,juice,water & carbonated beverage. The filling principal is based on the gravitation flow of liquid from the fixed head to the cups.The machine is designed to fill & seal the cup lid on the cup.The cup loading as well as cup unloading is done manually.

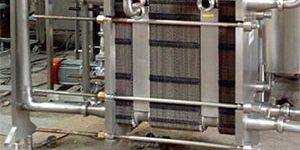

We manufacturing the Plate Heat Exchangers specially the PHE used in Food & pharma Industries. The Plate Heat Exchangers manufactured are by using the Plates of various major Brands. The PHE are: Single Section with SS clad frame having terminal connections terminating with SMS / IDF / Din / Triclover fittings. Double or multi section Plate heat exchangers for carrying out Heating, cooling and Heat Regeneration in the same Liquid for multiple operation such as Pasteurisation, two stage cooling of Sugar syrup as well as well ice cream Mix Plate Heat exchangers can also be supplied with Auto controllers for maintaining Temperatures, Pressure and flow. Plate Heat exchangers are also supplied for generating Hot water by using steam as heating media. Plate Heat exchangers are available in SS 304, SS316, SMO 254 with NBR, NBR HT, HNBR, EPDM, EPDM HT and Viton gaskets. PHE with MS painted frames are also available for use in vegetable Oil Industry for Heating / cooling of Vegetable Oil.

The paneer press offered shall be manufactured from SS channel with table sheet of required thickness in SS 304 .The press offered shall be free floor standing design provided with required nos. of pneumatic cylinders suitable for pressing the paneer blocks. Paneer press shall be provided with required nos of paneer hoops having approx, cap. of 10 kgs of paneer per hoop. Paneer blocks shall be pressed for a period of 15 to 30 minutes depending upon the texture & moisture required in the paneer The paneer press shall also be provided with the whey collection tray with common outlet. Panel would also be provided

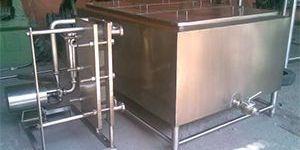

We manufacture insulated & uninsulated rectangular tanks with partition plates used as paneer cooling vats. The chilled water is circulated to cool the paneer. Additional skid mounted system to generate chilled water is also provided along with paneer vat.The system consists of PHE ,water pump,water pipeline & inline filter. Inquire to know more about the product.

Capacities starting from 200 LPH TO 20,000 LPH. System Consist of the following system:- a) A hot water generation system:- Steam Pipe Line with bypass assembly to transfer the steam from boiler to hot water phe.the pipeline consist of auto control steam valve,gun metal valves and pressure gauges. Hot water PHE to generate water from steam.The outlet of phe consist of steam trap for effective condensation and creating back pressure for steam. The system consist of how water pump,buffer vessel,safety valve and make up line for water.

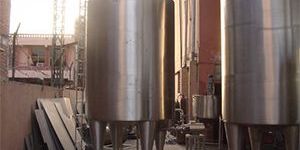

Insulated storage tank to store the milk at desired temp. for longer durations. The tank is provided with insulation in the outer jacket to prevent the temp. dropping.The tank can also be provided with slow speed agitator for regular mixing of the milk. Capacity-300 litre to 20,000 litre

Capacities starting from 200 LPH TO 20,000 LPH. System Consist of the following system:- a) A hot water generation system:- Steam Pipe Line with bypass assembly to transfer the steam from boiler to hot water phe.the pipeline consist of auto control steam valve,gun metal valves and pressure gauges. Hot water PHE to generate water from steam.The outlet of phe consist of steam trap for effective condensation and creating back pressure for steam. The system consist of how water pump,buffer vessel,safety valve and make up line for water.z b) Milk Pasteuriser PHE plate pack The multisection PHE plate pack is used to heat the milk from room temp. to pasteurisation temp. Milk gets hold in holding tube so as to kill harmful bacteria and is brought back to 4 degree celcius. Regeneration efficiency upto 93 %. c) Auto Control Valve In order to forward/divert the milk in case the temp, reaches the set point. d)Accessories Float balance tank Milk Pump Milk Pipeline Temp. Sensors e)Electrical Panel Panel to start motors Flow controller for milk Steam controller for steam On/Off, Auto/Manual, Forward/Divert Switches; f) Holding tube to hold the milk from 20 sec. to 15 mins. depending upon the process g)SS skid frame to mount all the accessories.`

The Machine offered is suitable for auto filling & auto sealing operation for dahi cups. SALIENT FEATURES:- Cap-600-800 Cups/hr. Manually Loading Cup In Cup Die Cup Filling-Automatic With Push Button Operation Lid Placing-Manual Lid Sealing-Auto With Temperature Control With Push Button Filled Cup Unloading From Die-Manual Supplies Include 4 Nos. Of Cup Dies

We pioneers in manufacturing the Low and High Shear Blending & Mixing Vessels / Tanks in Food & Pharma Industries. The following type of Low and High Shear Blending & Mixing Vessels / Tanks are manufactured.   Low and High Shear Blending and Mixing Tanks are available having the Volumetric Capacity of 500 Litres to 5,000 Litres. These Tanks can be single walled or with Dimple Jacket & with or without Insulation followed by Outer shell of SS 304 or MS depending Upon the specific requirement. These vessels are provided with Jet Mixers / Turbine type agitators for mixing, / High Shear Mixer / Pedal Mixer or Low shear Mixers with scrapper. One can have choice of having these vessels depending upon the requirement of various Food processing technology. Even it is possible to have these Vessels with two speed agitator cum scrapper moving in opposite directions.Provision can be made for two speed mixer. These vessels can also be supplied with Flat / Conical / Dished end bottom and top with loose / fixed cover. In case of Jacketed vessels the shell & Bottom are provided with the dimple jacket suitable for circulation of steam / hot / cold water. The dimple jacket Vessels are tested at 6 bar hence one need not use syphon for draining the liquid in the jacket. these jackets are suitable to work with on line supply of hot / cold water / steam up to a pressure of 4 bar However in case above standard designs are not suitable for particular requirement, one can very well ask to redesign the Vessels to suit individual requirement.

We are a unique entity in the industry, actively committed towards offering an optimum quality range of Lassi Cup Filling Machine. In adherence to predefined industry standards, this machine is well-manufactured by our adroit professionals at our production unit. Owing to its smooth functionality and high efficiency features, the offered machine is highly acknowledged among our clients. This machine is used in food and beverage industries for filling milk, cold drink, lassi, etc in a cup. Features: 2000 Cups/Hr No cup no fill No cup no lid No lid no seal PLC based controls with MMI for controls & production details Cup conveyor for cup unloading  Specifications: Material: Stainless Steel Capacity: 2000 Cups/Hr Size: Customized

Fully automatic with provision to fill past.juice at higher temp. The juice pasteurizer are supplied on skid mounted modular units designed on the basis of p[lug and play The juice pasteurizer are supplied with manual controls for cost effective purpose In case of special application such as coconut water the pasteurizer is designed on the basis of multi-section and high heat regeneration. The temp. controllers are based on latest microprocessors based technology designed for controlling the pasteurisation temp. to the accuracy of 0+0.5 degree celcius/ Our system uses hot water as heating media to pasteurize the juice.However the provision is made to utilize steam to generate hot water for this purpose. The steam flow control valve used in our system for controlling the pasteurization temp. is provided with I2P converter and positioner. In some cases we also provide control panel with built in 3 nos. of motor starters so that customer is able to manage the same without making any changes in existing system. Provision of CIP cleaning is provided. On special request system is provided with PLC controllers. Inquire to know more about the product.

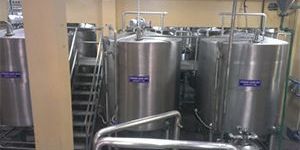

Fermenter are available in different capacities in accordance with the varied demands of clients, fermenter effective cooling limpets as per capacity,base/ leg mounted,inside surface mirror finish, thermo wells for temperature clients an range of fermenter. These fermenter offered by us are fabricated using supreme gradeSS 316l/304 material. The Fermenters manufactured by us can be supplied with following accessories.

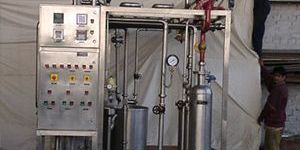

Ice cream mix is pasteurized at 155F (68.3C) for 30 minutes or 175F (79.4C) for 25 sec. The conditions used to pasteurize ice cream mix are greater than those used for fluid milk because of increased viscosity from the higher fat, solids, and sweetener content, and the addition of egg yolks in custard products.

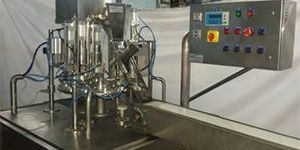

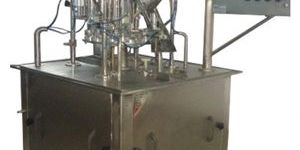

We are an affluent organization, offering a superior quality array of Ice Cream Filling Machine that is highly demanded in the ice cream industries. In order to provide an excellent range to our clients, this machine is manufactured by employing sophisticated technology by our expert professionals. Our entire range is offered in several models and other related technical specifications, as per the variegated requirements of our valuable clients. Features: Sturdiness Optimum finish standard Non corrosive Output: Minimum 1500 Cups / Cones per Hour of 100 ml Suitable for: 150 liter / hour freezer Maximum 2000 Cups / Cones per Hour of 100 ml suitable for 200 liter / hour freezer All contact parts are of SS-304 or food grade material Model VCFM-200-PLC is fully automatic machine having following operations: Dispensing of cups automatic. (Dispensing of cones manually) Cone Expansion: Chocolate spray in biscuit cones Filling of ice-cream into cups / cones Top filling with chocolate or fruit syrup Dry nut sprinkling Card board lid dispenser Closing of cones Ejecting of the finished cones or cups Advantage of PLC: Important feature of PLC is that automatic shift register function i.e. no cone no lid, hence we can save raw material & compressed air too Technical Data: Filling quantity: 50 ml minimum and up to 200 ml. Speed Variator : AC frequency drive PLC make : Siemens make PLC Machine output : up to 2000 cups/cones per hour Round cup: max. dia = 80 mm, height = 75 mm Round cone: max. dia = 60 mm, height = 150 mm Power requirement : 0.5 hp motor, cycle : 50 hz, 440 volt, 3 phase Air supply : 1000 liter/minute at 6 kg

Our filling machine can fill varieties of Ice Cream such as plain or with Ingredients or with Ripple using required attachments offered with the machine. Output Minimum 1500 Cups / Cones per Hour of 100 ml suitable for 150 liter / hour freezer Maximum 2000 Cups / Cones per Hour of 100 ml suitable for 200 liter / hour freezer All contact parts are of SS-304 or food grade material

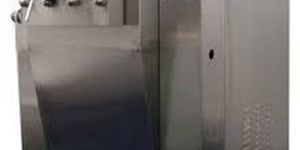

Salient features Heavy duty zinc coated frame Covering panel made from S. S. 304 quality Two stage homogenization Low RPM plunger pump Pressure adjustment by hand wheel Sterlite coated seat ball valves for suction and discharge parts Spring loaded homogenizing valves S. S. diaphragm type sanitary design pressure gauge High strength steel eccentric shaft and connecting rod assembly Splash lubricating system All product contact parts of S. S. 304

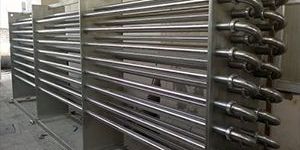

Holding tubes can also be pre-fit with a Flow Diversion Valve (FDV) that will divert unpasteurized product back to a balance tank, send pasteurized product to forward flow and provide leak detection. Holding tubes provide a fixed volume of tubing to "hold" a product for a set period of time at a given flow rate.

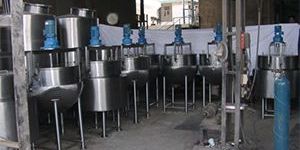

Among our other competitors active in the market of dairy processing equipment's, we are considered as the leading manufacturer and exporter of Steam Jacketed Kettle. All these kettles are widely used in the food industries for cooking varied items by steam heat. Available in different shapes and capacities of 75- 450 liters, these jacketed kettles are manufactured using supreme quality of metals and other components. Our clients can get this Steam Jacketed Kettle from us at cost effective prices. Features Rust proof finish Uniform steam heat to the materials Rugged design

Single washer is suitable for Fruits, Vegetables as well as leafy Vegetables. No Change part Required. Continuous operation with low consumption of Water. The Movement of vegetables / fruits in the washer Tank is thru Water flow having turbulence thru air. The Final washing is done on the discharge conveyor with water collection tank. This water is reused for initial cleaning. The washer is supported on the castor wheels and is complete unit on plug and play design.
