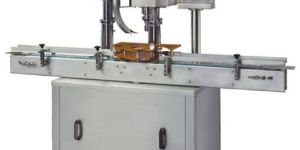

Function : This unit contains Indexing turret of 8 pockets. This unit contain mechanical indexer. Cans are entered into turret at 45 degree. At predetermined station Cap will be placed over containers. Rotary electrical vibrator is provided which orients supply the caps to the pick and place unit through cap transfer track. Cap placing unit operates mechanically. Cans carry caps along with it while indexing. Caps will be pressed onto the bottles by pneumatic cylinder after cap placing. At next station mechanical capping tool comes down, tool press and rotates the cap against the bottle. Capping will be done at pre-set torque, once required torque is achieved tool will slip with the help of magnetic clutch. While capping, bottle will be held rigidly with pneumatic gripper for anti-rotation. After capping tool goes back to the original position. Turret places the container to the output conveyor. Interlocks : When Input sensor sense the cans machine starts in auto mode. When Output sensor sense the cans machine stops in auto mode to avoid overload / jamming. No container, no filling. No Cap, Machine off. Capping machine off, filling machine off. Clutch slips at overload/jamming in machine. Emergency stop, machine off.

Certification : CE Certified

Finishing : Polished

Machine Weight : 100-1000kg

Driven Type : Electric

Phase : Single Phase

Warranty : 1 Year

Usage : Industrial

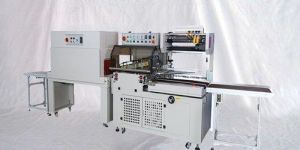

Description & Operations : This machine consists 4 meter of Conveyor with S.S 304 slat chain for product entry & exit. The Containers will be manually placed in pug of the input conveyor of Sleeve Applicator Machine. Length of film can be adjusted through HMI. Sleeve will be placed over the Marker  while moving A sensor is placed below sleeving unit for container sensing. When input sensor sense rotary cutter operates through servo. Cutter cut the film at present length. Film roll is mounted on reel mounting assembly which supply film at regular intervals with the help of dancing rollers Film is fed to the mandrel through number of rollers. Mandrel is designed according to the shape of containers. Pair of rollers is placed on mandrel at bottom which pull the sleeve while cutting and places over the marker. After placing sleeve markers moves through the shrink tunnel After finish containers will be ejected by manually Shrink Tunnel : This unit contains Heaters inside the tunnel which shrinks the sleeve. Blowers are placed at the top of the tunnel to circulate the hot air around the sleeve.

Type : Automatic

Certification : CE Certified

Application : Industrial

Weight : 100-1000kg

Driven Type : Electric

Warranty : 1 Year

Application : Industrial

Voltage : 220-240 V

Weight : 470 Kg

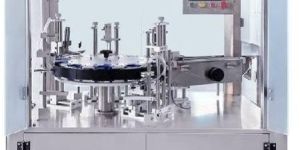

Description & Operation Cartons will be placed manually on the loading hopper. Pick & Place unit picks the single carton open and place it inside pocket of main indexing Turret. Next Indexing station Bottom side flaps will be folded by Pneumatic folding assembly. Next Indexing station Bottom Tucking will be done by Pneumatic folding assembly. Next Indexing station for product placing. Next Indexing station for product placing. Next Indexing station Top side flaps will be folded by Pneumatic folding assembly. Next Indexing station Top Tucking will be done by Pneumatic folding assembly. Final product can be collected on tray

Type : Semi Automatic

Certification : CE Certified

Application : Industrial

Voltage : 220V

Driven Type : Electric

Warranty : 1 Year

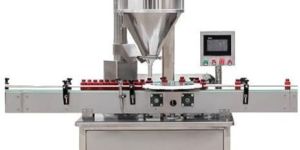

Automatic Powder Filler Function : Manually bottles are placed in the turn table provided. Bottles will pass through the conveyor and enter the Auger filler. This unit contains Indexing turret of 6/12 pockets. This unit contain mechanical indexer. Cans are entered into turret at 45 degree. Auger filler will dispense powder as soon as bottle is below the nozzle as per weight instructions set in HMI. Interlocks : When Input sensor sense the bottles, machine starts in auto mode. When Output sensor sense the cans, machine stops in auto mode to avoid overload / jamming. No container, no filling. Clutch slips at overload/jamming in machine. Emergency stop, machine off.

Type : Automatic

Material : Stainless Steel

Shape : Rectangular

Certification : CE Certified

Driven Type : Electric

Phase : Single Phase

Warranty : 1 Year

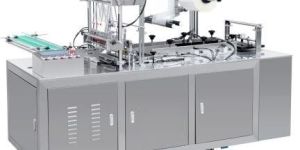

Description & Operation The Cartons coming from the Cartoning machine will be taken by the input conveyor of the Bundling and Over Wrapping machine. The main pusher will push the Carton to the wrapping station. The film roll mounted on the machine will be drawn and cut to the required length. The Carton while being transferred to the wrapping station will take the film along with it. The flaps will be folded and sealed with the help of the folder and sealing head. The sides of the film wrapped onto pack will be folded simultaneously with the help of the folders mounted on the sides. The folded ends will be sealed with the pair of heater body mounted on both the sides.

Finishing : Polished

Pressure : High Pressure

Usage : Industrial

Certification : CE Certified

Driven Type : Electric

Phase : Single Phase

Warranty : 1 Year

Function : Manually bottles will be placed open side up in turntable. Liquid filling unit is operated completely by mechanical system. Sensor senses the Bottles and machine starts automatically. Mechanical stopper stops 4,6,8 Bottles at a time. Diving nozzles enters inside and fill the Bottles. After filling i.e. when nozzle goes back to its home position only stopper release the Bottles. Filling starts only if 6 Bottles are available at filling station. Volume of liquid filling can be set as per user requirement by adjusting the action of piston. The stopper is adjustable. Height of filling nozzle unit is adjustable. Interlocks : No product Liquid filling machine off automatically. Emergency on Machine off. Clutch Slip Machine off

Type : Automatic

Material : Stainless Steel

Shape : Rectangular

Certification : CE Certified

Driven Type : Electric

Phase : Single Phase

Warranty : 1 Year

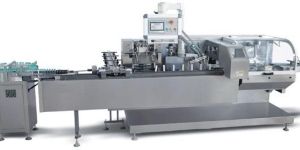

Description & Operations : Cartons need to be loaded onto the hopper on loading platform is provided to minimal the feeding frequency. Individual cartons will be pick place onto the pocket conveyor which is parallel to the pocket conveyor. Cartons will be picked and placed through individual heads through suction cups with the help of vacuum. Picked cartons will be placed inside the each pockets of conveyor. This machine consist cam operated pocket conveyor system with sliding mechanism. Product has to be placed in the hopper. Product pusher mechanism is placed parallel to Product carrying conveyor which pushes the Product inside the individual cartons. After Product insertion each cartons passes through cartons flap tucking mechanism which is placed parallel on both side of the conveyor. In tucking mechanism first side flaps will gets folded through mechanical fingers. At next station bottom flaps gets folded through mechanically Guides. After flap folding end product will be ejected to output conveyor. Interlocks : No Product at input conveyor of pick and place unit machine, cartoning machine would halt and starts when product is present in auto mode. No Product no carton. No carton no Product push(ejected in bin). Mechanical jam drives slip through mechanical clutch mechanism. No cartons at hopper machine stops. Low air pressure machine off. Emergency stop machine off. Optional Features : Leaflet Folding Leaflet Insertion Spoon, Dropper etc. insertion Top Product Loading Gluing for cartons Multiple Product Insertion Hopper for Product Integration with existing Primary Packing Line

Type : Automatic

Certification : CE Certified.

Weight : 100-500kg

Voltage : 220V

Driven Type : Electric

Warrenty : 1 Year

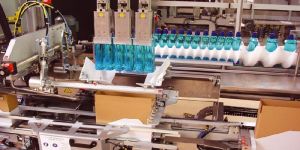

Automatic Case Packer Process Case Erector Bottom Taping Product Pick and Place Flap Folding & Top Taping Ejecting Description and Operations This machine consist 2 no’s of conveyors for Production Entry & Collating conveyor, Collating Flat form, Carton Erector & Case Packer conveyor & folding assembly& Tapping unit. Carton box can be feed manually on case erector unit. Machine will start automatically once Low level sensor is ON. Once low level sensor is on Product Separator unit separate the Products and transfers the Pick & place area. Once Low Level sensor is on Justifier cylinder hold the Products and separator to the running line. Pick & Place Horizontal pusher assembly operates by Servo motor with Ball Screw Assembly. Vertical - pusher assembly operates by pneumatic Cylinder with Rail Sliding Assembly. Pick and place Product holding tool is combination of Mechanical and Pneumatic. It is positive type function of jaw open and close. Low maintenance cost long life.   Carton will placed in pocket conveyor of case erector conveyor and bottom tapping will be done at same timing. Carton Flap will open while Products inserting to carton box. Carton flap assembly operates by Pneumatic cylinder. Tapping head mounted after the box inserting area. Finished carton box ejected by cylinder or manually.

Finishing : Polished

Pressure : High Pressure

Usage : Industrial

Type : Automatic

Shape : Rectangular

Certification : CE Certified

Driven Type : Electric

Description and Operations : This unit contains Indexing turret of 8 pockets. This unit contain mechanical indexer. Cans are entered into turret at 45 degree. Indexing Turret Will Pick the Jar Into Below The Cutting and Sealing Head. Cutting & Sealing will be done at same time. Dancing Roller Assembly Which Helps the foil for Proper Tension and easy cutting. Turret places the container to the output conveyor. Interlocks : When Input sensor sense the container machine starts in auto mode. When Output sensor sense the Container machine stops in auto mode to avoid overload / jamming. No container, no Sealing. No Container, No Foil Cut. Clutch slips at overload/jamming in machine. Emergency stop, machine off.

Type : Automatic

Shape : Rectangular

Certification : ISI Certified

Finishing : Polished

Driven Type : Electric

Phase : Single Phase

Warranty : 1 Year

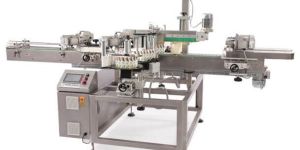

Basic Machine Parts :1. Conveyor: This is required to move the bottles. Machine direction will be left to right 2500mm length & 82.5 mm slat width 2. Disc Spacer It helps to create the space between two bottles 3. Orientation It helps to orient the bottle properly before it gets hold by overhead unit 4. Overhead Unit It holds the bottle properly from top It helps in proper labelling on bottle from both the side 5. Labelling Head: This is the heart of the machine. Actual labelling head will be designed for maximum label height of 150mm 6. Sensor Product sensor: required to detect the product and send the signal to PLC Label sensor: detect the gap between two labels and accordingly help to dispense the label

Type : Automatic

Certification : CE Certified

Weight : 100-500kg

Voltage : 220V

Driven Type : Electric

Warrenty : 1 Year

Material : Mild Steel

Voltage : 220-240 V

Phase : Three Phase

Frequency : 50/60 Hz

Brand Name : IPC

Function : After Filling, product passes to Rotary Capping unit. Bottles enter to the entry turret through timing screw. Machine has capping tool, which moves down pick caps from exit turret and carries along with it. Tool comes down at capping station and place the cap over the bottles. After capping Tool jaw opens and goes up to the original position. Pressing torque can be set for individual tools. Interlocks : Output conveyor sensor on/off, machine on/off. Bottle Sensor on/off, machine on/off. Clutch Slip, machine off. No bottle, No Cap. No Cap Machine on/off

Material : Stainless Steel

Shape : Rectangular

Finishing : Polished

Driven Type : Electric

Warranty : 1 Year

Usage : Industrial
