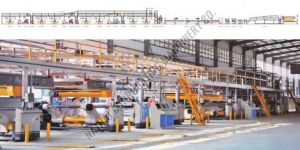

3ply,5 ply Fully Automatic corrugated board and box making machine
38,500,000 Per Set
1 Set(s) (MOQ)
1． TECHNICAL DATA 1 Number of Operator 9 persons Mill Roll stand & Single Facer: 1 Double Facer: 1 Slitter Scorer & Cut-off: 1 Stacker: 2 Boiler: 1 Glue system: 1 Chief:1 2 Running Width 1800mm 950mm 3 Max Speed 150 mmin 4 Working Speed 130mmin for 3 ply 100mmin for 5 ply 5 Monthly Output 1000~1500tons (1 shift with12 hours day, 24 working days month) 6 Maximum sheet size 1800mmX 3500 mm 7 Minimum sheet size 125mmX500mm 8 Paper Grades 90 gcsm - 180 gcsm (Medium) 110 gcsm - 400 gcsm (Liner) 9 Adhesives Required starch 10 Starch consumption 3 ply: 10-15g㎡ 5 ply: 20-30g㎡ 11 Steam Pressure 1.2 MPa 12 Steam Consumption Approx.3000~3600kgh 13 Occupied Space Approx. 10 m X 80m (Incl. operation space) Highest point is 4.25m 14 Power Capacity Approx : 326Kw 15 Power Required 380V, 50HZ, 3 PHASE 16 Paper going Drive side (left hand or right hand) 17 Flute A, B, C or E (UV flute) 18 Delivery 120 days after the receipt of down payment 19 Quality Guarantee 1 year after installation
