Microtomes Dealers in Panchkula

• Sectioning Thickness Range: 1µm- 30µm, in 1µm increments, 30µm-60µm, in 5µm increments,
• Trimming Thickness Range: 30µm-95µm, in 5µm increments
• Freeze Shelf Lowest Temp: – 40oC
• Cooling down time to -30oC: 60 mins
• Lowest temp. of Peltier unit on freeze shelf: -55oC freeze shelf
• Maximum Specimen Size: 35 mm x 35 mm
• Specimen Vertical Stroke: 70 mm Specimen
• Specimen Horizontal Stroke: 20 mm

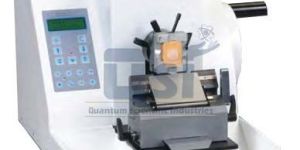

We are offering Rotary Microtome (precision) 8116. a Heavy Base with Hinged Cover for Protecting the Interior Mechanism, and Knife Holder. with Every Complete Revolution of the Drive Wheel, the Feed Panel Engage the Teeth of Rachet Wheel Which Advances the Object Holder Through Cone and Inclined Plane Mechanism, Tissue Sections Can Be Cut Down to Even 1 Micron. a Safety Device Automatically Disengages the Feed Mechanism At the End. Feed Indicator is in Front and Feed Setting is At the Back of Microtome Which Sets 1 to 50 Micron. a Razor 120mm Made from High Carbon Steel and Tested for Micro Structure is Supplied with Instrument. There is An Arrangement to Tilt Angle of the Razor Adjustable Up to 30º On a Reference Scale. Technical Features: feed Adjustment: 1-50 Micron (in Step of 1 Micro) total Feed Excursion: 28mm Opening of Object Clamp. hall and Flange Type: 37 X 25mm, overall Dimensions: 400 X 250 X 175mm. Weight: 25 Kg. Approx.
