Pass Box Dealers in Panchkula

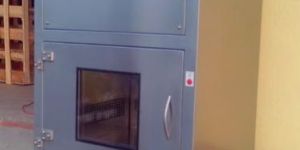

Dynamic pass boxes dynamic pass box (aka pass through box or clean pass box) is primarily designed to minimize man and material movement between different classified areas thereby minimizing the chances of cross contamination. Pass box is an essential equipment for any manufacturing or research facility which requires maintaining the integrity of different classified areas.

• Features: Mechanical or Electromagnetic Interlocking, Floor and wall mounted design, Maximum chemical resistance construction, Modular & economical .
• Finish: Matt finish
• Applications: Medical implant, Medical devices, Educational institution, Vaccine manufacturers .
• Construction: Stainless Steel 304 / 316 / 316L or PCRC Powder Coated
• Door: Mechanical or Electromagnetic Interlocking
• Filtration efficiency: ≥ 99.99% @ ≥ 0.3μm
• Power Supply: 220 / 230 Volts
• Item Code: LBS-DPB-151

Static Pass Boxes | Ventilated Pass Box is widely used for transferring the material from and into the clean room, without contaminating the air of clean room & without having to open room door. These cleanroom pass boxes can be installed on the wall between the clean room and other room. Our range of static pass boxes is available in various specifications as per the client’s requirements. Static Pass Box | Ventilated Pass Box is with a variety of standard dimensions also our pass boxes can be custom engineered to any size. Static Pass Boxes | Ventilated Pass Box are available in powder coated Mild Steel, SS 304 / 316 / 316L or a combination of both.Standard Model Available  Door : SS 304 double walled door construction with flush glass view panels with SS handles and SS hinges. Interlocking : Electro-Magnetic Interlocking type door arrangement to ensure that only one side door can be opened at any given time. Door Indication : Indicators on either side for door open condition. Door release : Door release Switch on either side. SS coving : Internal covings for easy cleaning. Optional Accessories : U.V. Light with Hour Meter used for bacteria/virus killing & interlocking arrangement to put off UV Light if either side door opens. Support stand for mounting of pass box. Flange for sealing the gap between the pass box and the clean room wall. Electro-Magnetic / Mechanical Interlocking. Floor mounted construction with three side wall structure & Door drop seal. Provision for ventilation with perforated grills. Flameproof fitting.   Documentation :All necessary documents will be provided as per the latest prevailing standards.

Dynamic Pass Box Our Dynamic Pass Box is manufactured using high grade materials as per international standards and specifications. Only one door can be opened with electromagnetic interlocking at a time, which helps in avoiding cross contamination. Furthermore, UV tube light is automatically switched on when both doors are closed. Key features are: • Stiffner for rigidity of base • Magnehelic gauge 0 - 50 mm w.g. • Standard Mini pleat (Eff.99.997% down to 0.3m) • Motor Blower: Options of 500 and 1000cfm • With UV resistant glass windows & DOP port • PHEROH make pre filter (Assign 90% eff) • Hour meter provided for UV • SS.304/MS Powder coated
