R.K machines Halol, Panchmahal, Gujarat

Corrugated rolls close/open end Dimple rolls Helical fluted rolls Pinnacle close end rolls HIGHER PRODUCTION than the conventional alloy steel dies ( nearly 1.5--2.0 times the normal production ); Increased rate of production per hour ( nearly 10%-20% increase in tonnage / hour ) Substantial reduction in the POWER COST ( nearly 7% - 10% reduction in power bill per month); Unaffected by hot steam, molasses and other fat contents in the feed due to HIGHER SURFACE HARDNESS ( Hence less rusting, thereby minimizing wearing of the die) Easy pelleting right from the start ( minimum surface friction, NO JAMMING due to highly polished holes ); SLOW WEAR OUT ( due to the composition of the raw material and higher surface hardness achieved); Minimizing the maintenance time HOLE ENLARGEMENT after 70-80% of the die life, which facilities even pellet size through out the die life. Construction: Made from MS material (Unless specified) complete with vibratory motor Sieve vibrates by means of eccentric mechanism mounted on the shaft Machine is supplied in assembled condition Installation: After proper alignment leveling, machine base is erected on the floor by bolts A minimum of 800 bmm space is left at inlet to facilitate changing of the sieve Sieve is made from 3 mm thick plates & distribution dome complete with baffles plate from 3 mm thick plate Special Features: Oscillating type, V belt driven with eccentric vibrating mechanism Robust body made from MS 3 mm thick plate Distribution dome complete with baffle plates Specifications: Overall dimension of the machine: 2500 mm length x 1100 mm height x 1670 mm width   Single sturdy eccentric throw mechanism with standard motor for easy adjustment. Tubular frame for vibration free installation. Long screen travel provides fast, efficient method of size separation with adequate residence time to eliminate powder from the feed. Quick clamp makes screen changing very fast. Single as well as multi deck sieve for grading of diff. size of crumbs / pellets. As the product travels and encounters the screening surface, the vibrating screen throws the product across the screen and separates the size require. Low power requirement with high processing rate.

Warranty : 2 Years

Color : White And Blue

Automatic Grade : Automatic

Application : Mixing Dry Materials

Material : Stainless Steel

Type : Roller Bearing

Bore Size : 20 mm (Inner Diameter)

Color : Silver

Shape : Round

Usage : Low Speed Roll Neck

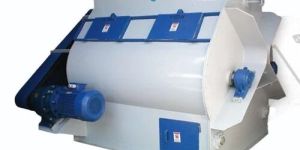

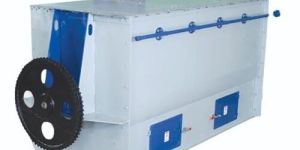

Capacity : 500 liters

Application : Used for solids on solids mixing

Material : Stainless Steel

Automatic Grade : Automatic

Model Number : IN-500-1

Brand Name : RK

Replica is full stainless steel design. We have developed Replica Pellet Mill for inhouse production of pellets in Research Institutes, which are engaging experimentation of life saving drugs on the animals.

Capacity : 300 kg per hr

Motor Power : 3 hp

Weight : 45kg

Dimensions (LXWXH) : 1000*400*500mm (LxWxH)

Material : Stainless Steel

Automation Grade : Automatic

Application : Animal Feed

Production Capacity : 500 kg/hr

Application : Handling And Metering

After successful launch and acceptance of D-Chrome™ world wide RK has launched a value added product D-CARB. These are the dies used mainly for Cattle feed and for high roughage woodBio-Fuel Pelleting. These dies are available with hole dia 4- 12mm.

Material : Stainless Steel

Color : Silver

Application : To pelletize the ground material into cylindrical granules.

Manufacturing unit of cattle and poultry feed machinery with all spare parts i.e ring die, press roll, beaters, assembly etc in Halol, Gujarat.

Type : Vertical

Brand Name : R K Machines

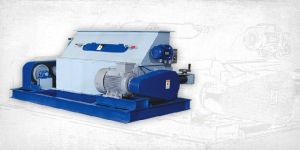

Pellet CrumblersCrumbling System, With Two Roller Arrangement To Higher Capacity Crumbler With VFD Operated Feed Rollers For Even Discharge Of Pellets On The Full Length Of The Crumbler Rollers. Based on superior crumbling technology, Pellet Crumblers offered by us help in avoiding difficulty in producing small pellet feed, thus saving consumption of power & energy. Each pellet contains ingredients that makes feed intake by animal extremely easy. Rolls perform at differential rotational speeds where the pellets are pressed, sheared & torn, thus reaching ideal crumbling effect.Features: Contra rotating horizontal rolls Rolls made from high quality chilled iron of high hardness (Centrifugally casted with longitudinal corrugation (Fluting) pressed in forged steel journals) Unique feeding hopper & by-pass device (Serves the distribution demands of products as well as serve the needs to by-pass products not requiring crumbling) When by passing pellets, sometimes automatic stoppage is realized through limit switch Working Method: Pellets fed continuously over total width of the crumbler by means of discharge device of cooler or an additional feeding device Fluted rolls of different speeds crush pellets into predetermined sizes Advantages of Pellet Crumblers: Optimal utilisation of feedstuff by starter chicks, shrimp Prevention of feather picking Specific adjustment of sizes of crumbs Saves energy on the pellet mill Increases efficiency Durable with long life of parts Compact structure, stable performance Easy to operate and maintain    Multiple crumblers placed in parallel or in series for higher capacities or for finer crumbling.

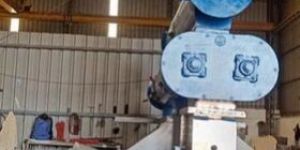

Pellet MillPellet Mill is required to palletise the feed after the steam cooking of the feed. Pellets are produced by squeezing the steam-cooked mash feed between the rotating die and pressing rolls. Steam cooking is important so as to make the feed free from micro-organism / pathogens and making it fit for animal consumption. Dry steam is added to the feeder conditioner of the pellet mill and it adds lubrication to the mash feed and makes it perfect for pelleting. It also facilitates better life to the use of dies and rollers. Inovo Pellet MillWe are involved in manufaturing and supplying of Inovo Pellet Mill. Features and Applications : Robustly engineered steel housing in welded construction for vibration less operation. Rotor assembly comprising main drive pulley and die holder. Stainless steel door and spout for long life. The die speed can be adapted to suit the particular properties of the material to be pelletized. Robust knife cutter assembly - Scale type for easy cutting & precise depth adjustment. Centralised lubrication for nonstop performance. Space saving - compact double rotor conditioner / differential dia. conditioner with adjustable Paddles for high reliable steam mixing and retention time. Gear type roll assembly for precise die-roll gap adjustment. D-CHROME™ & D-CARB® Die for High Finish gelatanized Pellet. We also design pellet mills for pelleting of municipal waste (organic wastes), poultry manure, rice bran, Alfa-Alfa, red chill, bio-fuel & for research institutions engaged in conducting experiments of life saving drugs on animals.

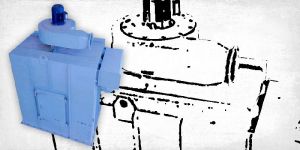

Aspiration bag filters - pulse jet self-cleaning are used in raw material intake system, elevators, grinding and bagging section for dust free environment in the feed plant. Air filtration helps us to keep entire feed plant clean & hygienic. Fully integrated aspiration bag filters with plenum chambers are used for efficient grinding, reduced temp. rise, cleaned screen holes.

Application : Removes Wood And Corncobs From Grain

Capacity : 35 TPH

Automatic Grade : Automatic

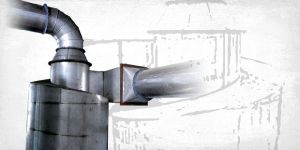

Our range of cyclones are efficient in separating feed dust from the air. These cyclones are funnel shaped whirlwinds fabricated sheet metal tubes, used for dust collection. The fine dust gathers at the bottom of the cone and is extracted by rotary air lock.

Crumbling System, With Two Roller Arrangement To Higher Capacity Crumbler With VFD Operated Feed Rollers For Even Discharge Of Pellets On The Full Length Of The Crumbler Rollers.

Material : Stainless Steel

Type : Vertical

Weight : 25kg

Application : Pellet Production

Cooling Cum Drying System Complete With Blower, Cyclone And Airlock. Conventional Single / Double Cooling Column To Counter Flow Cooler   The Counter Flow Cooler offered by us are precision designed to ensure temperature of cooled pellet materials is within +3 /+5°C above ambient temperature. It features unique automatic discharge device that helps in preventing cross contamination. Features: Unique discharge frame that forces material discharge Stable & reliable operations Used in combination with separators By applying induction drought air, coolers being offered are designed to provide desired cooling effect Direction of air remains opposite to the direction of traveling of materials Cooler connected with blower & cyclone through proper SS ducting Vertical in design, the cooler pellets are discharged through vibration by eccentric mechanism It features level switches for automatic operations of filling & discharging Its unique structure allows cooling air & material to move oppositely (Enabling material to be cooled gradually from bottom to the top through heat transfer) Minimizes risk of 'cooling shocks,’ that is a major cause of product degradation In the event of power failure, the cooler discharge will be stopped by a pneumatic gate. Construction: Side panels fabricated from S.S. Available in rectangular shape & bolted type modular design construction with suitable stiffener Infrared sensors for level control provided at particular height outside box with acrylic glass window Upper hood designed for resting of air lock at inlet with provision for connecting ducting to blower and cyclone. Two grill type tubular trays fabricated from MS at bottom of the cooler. Top tray connected through eccentric mechanism (To provide gear drive for discharging of pellets) Manual adjustment arrangement made to bottom tray to set gap for discharge of pellets, when top tray starts oscillating.

Power : 135 KW

Material : Stainless Steel

Ring Diameter : 30mm

Color : Blue

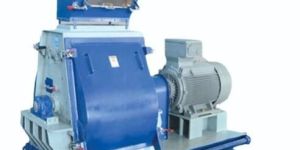

Usage : To mill, grind and crush material

Brand Name : RK

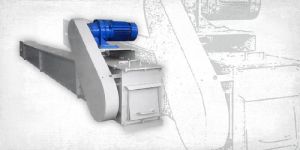

Rugged chain & Sprocket assembly Power efficient design Full UHMW for friction free sliding

Rubberised Head pulley Bucket (steel / HDPE)

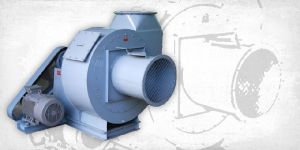

We offer Blower. It is one of the important material handling equipment.

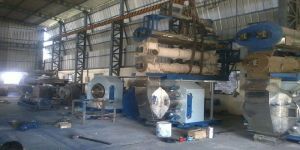

Bio-fuel Pellet Mill for wood / bio-mass having forced feeder available for difficult to flow materials.Features and Applications : Robustly engineered steel housing in welded construction for vibration less operation. Rotor assembly comprising main drive pulley and die holder. Stainless steel door and spout for long life. The die speed can be adapted to suit the particular properties of the material to be pelletized. Robust knife cutter assembly - Scale type for easy cutting & precise depth adjustment. Centralised lubrication for nonstop performance. Space saving - compact double rotor conditioner / differential dia. conditioner with adjustable Paddles for high reliable steam mixing and retention time. Gear type roll assembly for precise die-roll gap adjustment. D-CHROME™ & D-CARB® Die for High Finish gelatanized Pellet.
