Gear Cutter Dealers in Patiala

• Material: Stainless Steel
• Use: Industrial
• Shape: Round
• Finishing: Polished
• Warranty: 6 Months
• Quality: Good

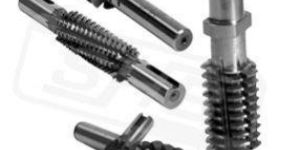

Manufactured generally to customers drawing and specifications in topping and non-topping forms shank (worm gear). Hobs can be supplied in machine relieved as well as in ground relieved forms. These cutters can be supplied in single and multi start pitches as per requirements of the user. Maximum length of the cutter (including shank) that can be had is 400mm.

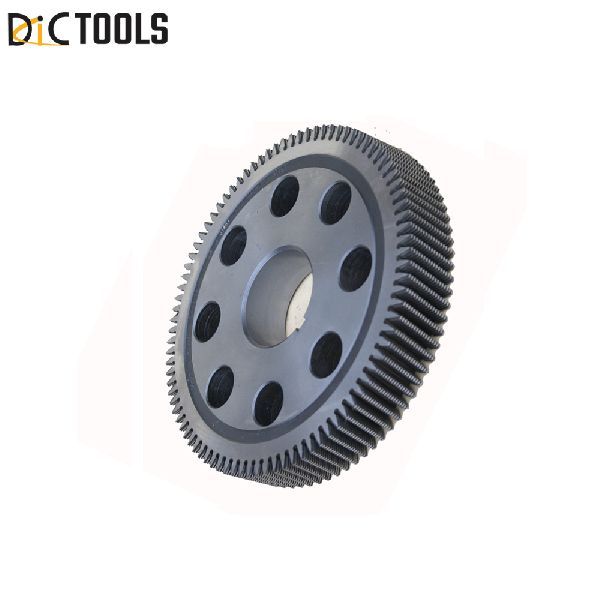

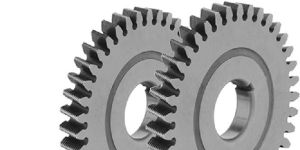

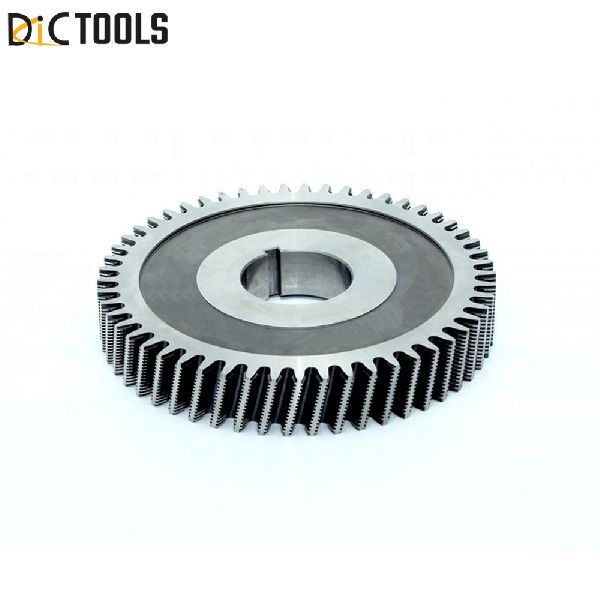

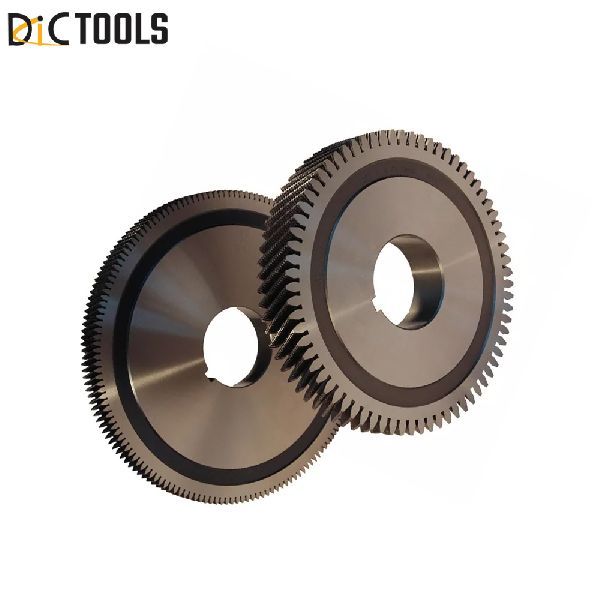

We are offering gear shaving cutters. Shaving cutters are generally supplied with standard true involute profile however special modified profile can be offered to generate tip relief, profile & lead crowning, 'k' profile etc. As per customer's requirement. Being a single source for various pre-shaved tools-hobs & shaping cutters, design parameters of shaving cutters are optimized to achieve better contact and desired true involute form diameters in gears. Certified accuracy class bs 2007 - 1975. Material: m2asp2023

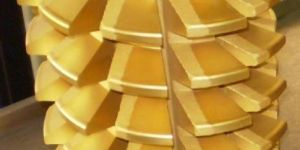

The company is renowned Gear Hob Cutters Manufacturer and Supplier in the market. These Gear Hob Cutters are precisely manufactured under the strict parameters of industrial standards. The wide variety of Gear Hob Cutters is offered to the clients. The company assures quick delivery of Gear Hob Cutters in the predetermined time. The company is also capable of serving its clients with up to 40 Module/1 DP of Gear Hob Cutters. Range Spur and helical gear hobs Pre-shaving gear hobs Pre-grinding gear hobs Straight and involute spline hobs Serration hobs Sprocket hobs Worm gear hobs Timing belt hobs   Basic Parameters Module : 0.1 to 40 (24 mm to 360mm diameter) DP : 120 DP to 0.7 Start : Single or Multi Start Accuracy : A, B & C (as per DIN 3968, BS 2062) Forms : Non-Topping, Semi-Topping, Topping, finishing, pre-shaving, pre- grinding, with or without protuberance , full fillet etc. Material : M-2, M35, ASP 30 etc. Chain Sprocket Hobs are usually supplied in unground form to cut roller chain sprockets to din, American standard with the range from 1/4" to 3" pitch or 5mm to 76.2 mm pitch. The above Gear Hob Cutters can be supplied with latest PVD Coatings. The above Gear Hob Cutters can be supplied as per BS, JIS, DIN, ASA standards.

• Type: Conventional, Diagonal & Underpass.
• Material: M2, M35, ASP 30 etc.
• Brand Name: Tool Masters India
• Condition: Good
• Country of Origin: Patiala
• Product Name: Gear Shaving Cutters
• Range: 0.8-8 Module and 30-3 DP,170 mm to 260 mm PCD.
• T/T,L/C Min. Order Quantity: As per Client Requirement

We are also a well known name among suppliers of high functional gear shaving cutters. Our gear shaving cutters are well known for their incomparable performance and cost effectiveness. We manufacture various types of Shaving cutters such as , diagonal Gear Shaving Cutters and underpass Gear Shaving Cutters. Our clients praise us for manufacturing these ultra tech gear shaving cutters. Types : Conventional, Diagonal & Underpass.Range : 0.8-8 Module and 30-3 DP 170 mm to 260 mm PCD. Material : M2, M35, ASP 30 etc.

• Type: Gear Hob Cutters
• Material: HSS
• Application: Gear Cutting
• Condition: New
• Finshing: Polished
• Brand Name: UBC
• Module: As Required

We at UBC, manufacture and export Gear Hobs. These gear cutters can be made with Accuracy Class: AAA/AA/A/ as per DIN 3968 Standard. We manufacture these gear cutters in High-Speed Steel Grade: ASP2052/S390/S290/ASP2030/M35.Hob Cutters can be supplied in Gold (TiN), Futura Nano (TiAlN), Alcrona Pro (AlCrN), Altensa (AlCrNX) coating and other coatings available on request. Available in a variety of sizes and diameters in Module (D.P.) or as per customer's requirement

• Material: M2, M35 High Speed Steel

All kinds of special profile cutters gear hob cutter are designed and manufactured to accompalish a particular job with utmost precision tailored according to user's requirements. These cutters are a type of form tool and are used in hobbing machines to generate gears. A cross section of the cutter's tooth will generate the required shape on the work piece, once set to the appropriate conditions.

• Material: M35/ASP2030/ASP2052/390

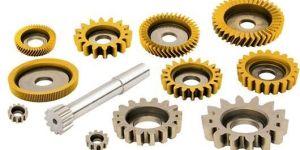

Gear Shaper Cutters are made for cutting internal & external gears and splines.Range: From 1.5 to 10 Module, PCD: From 75 to 200mm, Profiles like Semi-topping & pre-shaving, Accuracy class ‘AA’ & ‘A’ as per DIN1829.

SHB Manufacture Gear Hobs in HSS M2, M35 and ASP 30 material. Gear Hobs for Spur and Helical Gears in single start and multistart threads can be Supplied in Class ‘A’ and Class ‘AA’ accuracies conforming to DIN 3968 standard with pitches ranging from 0.5 to 25 Module or equivalent D.P.’s in various pressure angles.

Gear Shaper Cutters are made for cutting internal & external gears and splines. Range: From 1.5 to 10 Module PCD: From 75 to 200mm Profiles like Semi-topping & pre-shaving Accuracy class ‘AA’ & ‘A’ as per DIN1829 Material M35/ASP2030/ASP2052/390 All types of PVD coating as per requirement.

• Material: ASP2052/ASP2030/M35/M2

Disc type designed for producing spur, splines, sprockets & helical gears. Also available are customized shaping cutters for pre-shaved, pre-ground automobile gears with profile features like protuberance, semi-topping, etc . Hub, deep counter bore and shank type shaping cutters are also available. Certified accuracy class AA, A as per DIN 1829.

Generally available in machine relieved profile conforming to BS, IS specification in a set of 8 different forms numbered 1 to 8. Specially designed from gear cutters for corrected gears can also be had as per customer’s designdrawing on specific request.

These End Mill Cutters required to cut double Helical Gears upto 30° angle.Range : 8 Module to 40 Module.635 DP to 3 DP

Disc type designed for producing spur, splines, sprockets and helical gears. Also available are customized shaping cutters to cut pre-shaved, pre-grounded automobile gears with combination of features like protuberance and semi-topping. Shank type & hub type internal shaper cutters can also be offered against specific request. Normally accuracy classes are ‘AA’ & ‘A’ as per DIN 1826.

We are also a well known name among suppliers of high functional gear shaving cutters. Our gear shaving cutters are well known for their incomparable performance and cost effectiveness.

We are offering gear shaper cutters shank type internal gear shaper cutters in dp module min dia 15mm in mt1 mt2 mt3 mt4 over all length 75mm 95mm 100mm 125mm 150mm.
