Mohindra Dies & Tools Pvt. Ltd. Focal Point, Patiala, Punjab

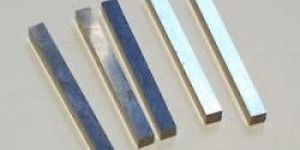

MDTPL offers Tool Bit Blanks forTurning and Machining of all type of metals. Tool Bit Blanks are made from properly sourced High Speed Steel which is carefully machined,Heat-treated and Ground on automatic machines. Tools Bit Blanks are offered for Square,Rectangular and Round shapes in M2 and M35 grades.

MDTPL manufactures ROLFAST brand Threading taps for thread tapping applications. ROLFAST Taps are made from High speed Steel which are carefully machined and then Heat treated to optimum hardness as well as toughness utilizing In-house facilities. Threads are Ground on Highly accurate Thread Grinder machines and thread parameters are controlled to standards utilizing High magnification Profile Comparators and PCD micrometers. ROLFAST taps are made for all Thread standards viz.Metrics (8mm-100mm),Inches(5/16"-4"). ROLFAST taps are made in all forms like Short Nut taps,Long Nut Taps,Hand taps and Pipe threading taps.

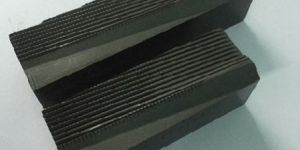

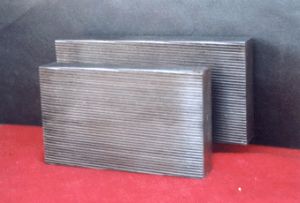

MDTPL manufactures ROLFAST brand Thread Rolling Flat Dies for Production and Precision Thread Rolling of all kinds of Fasteners made of Mild Steel,High-strength Steel and Stainless steel. The dies are made of Selected Cold Work Tools Steel,which is carefully Machined,Grinded and Heattreated.Thread Rolling Flat Dies are made in Ground Form and also in Milled Form.   MDTPL manufactures Thread Rolling Flat Dies for lengths upto 400mm and widths as per following thread sizes:

MDTPL has developed Thread Rolling Flat Dies for Self Taping Screws of types A,AB,B and other types. ROLFAST steel screw dies are made from fine Raw mateial and machined and threaded with utmost accuracy. ROLFAST Dies roll the perfect form and clean point on self taping screws. The dies are made for popular dies sections such as WF,TR series and other series.Dies are made for Screw size #2 - # 14 and also for Lag Bolts,Wood Screws and other fasteners with Gimlet point.

MDTPL manufacture ROLFAST brand tangential chasers for thread cutting on pipes,Fasteners and bars. These chasers are generally made suitable for Landis,Lance,Landmatic type die heads and also made for Heaps,Wagner and other type of dieheads.These chasers are made from High Seed Steel,generally in M2 grade.These chasers are made in 4piece sets and 6 piece sets for bigger die-heads are also manufactured. Tangential chasers have accurate fitting,thread profile and good life. The chasers are made for following  thread standards: Metrics: 0.5mm- 8mm Pitch Inches : 4 tpi-40 tpi.

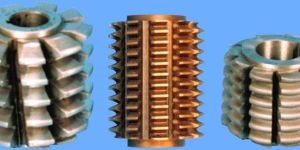

INFORMATION REQUIRED FOR ORDERING HOB CUTTERS: 1.LENGTH,WIDTH & BORE SIZE 2.KEY WAY SIZE 3.GEAR PARAMETER VIZ.MODULE NO.OR DIAMETERAL PITCH 4.NO.OF STARTS & GASHES. 5.ANY SPECIAL OPERATION/PROFILE 6.MATERIAL SPECIFICATION. HOB  CUTTERS :- MDTPL manufactures Gear Cutting Tools like Gear Cutting Hobs,Spline cutting Hobs and Chain Sprocket Hobs.Hobs are made from selected High Quality High Speed Steel grades.All the manufacturing operations like Machining,Profile Releiving,Heat-treatment,Grinding and Sharpening are done in-house with world class machinery and equipment. MDTPL offers following Range of Hob-cutters 1. GEAR CUTTING HOB CUTTERS : : MOHINDRA Gear Cutting Hobs are manufactured with Bore and Key-way or with End Drive Slot. Hobs are made in Single Start as well as Multi start Pitches generally in Machine Relieved forms (Class C) and also in Ground Relieved forms (Class A & B). Hobs with Special features like Topping,Semi-Topping,Protoburence etc.can also be manufactured. MOHINDRA Gear Cutting Hobs have Accurate Profile and other Parameters. Gear Hobs are manufactured in following sizes :      DIMENSIONS PITH               DIA.     MODULE (mm)D.P. (Inch) 1.0-16.0       50-200MM1-1/2-40             2"-8"       DIMENSIONS   LENGTH         BORE     MODULE (mm)D.P. (Inch)      31-240mm   22-50.8MM 2"-10"          3/4"-2"   Hob cutters for other sizes / pitches can also be made against specifications. 2. SPLINE CUTTING HOB CUTTERS: These Hob cutters are manufactured as per Standard and as per Specific requirements of the customer for Straight Sided Splines and Involute Splines. Spline Gear Hobs in  Machine Relieved profiles with following features:-i. With Lugs Without Chamfer ii. Without Lugs Without Chamfer iii. With Lugs and Chamfer iv. Without full Fillet Radius without Chamfer . 3. CHAIN SPROCKET HOB CUTTERS : MDTPL manufactures Chain Sprocket Hobs in Machine Relieved Profiles confirming to IS,BS,DIN and ASA specifications with bore and keyway or with End Drive Slot. Roller chain sprocket hobs are made for following sizes :   DIMENSIONS PITCH    (mm) (Inch) 5-63.51/4 - 2 ½

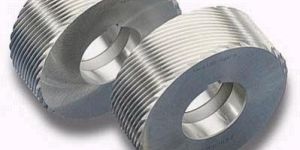

MDTPL manufactures Circular Thread Rolling Dies for Precision Thread Rolling of Fasteners,auto-parts and components.These rolls are Generally made from Cold work Tools Steel (D2/equivalent material) and also made in High Speed Steel (M2).These dies have accurately Ground thread forms and give high life. Circular Thread Rolling Dies are made in Both types of feed,Thru-feed and In-feed type. Special treated dies are also made foe thread rolling of tough to roll materials like Stainless steel and Fasteners of After Heattreatment state (AHT) .  MDTPL makes Circular Thread Rolling Dies in Maximum diameter upto 300mm and width maximum 250mm with any size of Bore diameter.3 pc.sets are also made as per requirement.These dies are made for all thread standards viz.Metrics ( Pitch 0.8mm-6mm),Unifieds/British threads (Pitch 4 tpi-32 tpi) and other thread forms like ACME,Knuckle,Buttress etc.   INFORMATION REQD.FOR ORDERING CIRCULAR THREAD ROLLING DIES: 1.OUTER DIAMETER,WIDTH AND BORE ALONG KEY WAY SIZE 2.FASTENER DIAMETER,THREAD PITCH ALONG THREAD STANDARD 3.TYPE OF FEED,IN-FEED OR THRU-FEED 4.FOR THRU-FEED ROLLS,MENTION IF ANGLE OF ENTRY/EXIT IS REQUIRED. 5.ANY SPECIAL OPERATION VIZ.RRO,STEP OR LOW CHAMFER. 6.DO MENTION THE COMPONENT HARDNESS WHILE ORDERING FOR ROLLS FOR AHT OPERATION.

MDTPL manufactures High Quality cutting tools for Gears and other industries. HOB CUTTERS : We specialize in manufacturing Hob Cutters for Cutting of Gears,Splines,serrations and Chain sprockets. TOOL BIT BLANKS : Tools Bit Blanks are offered for general cutting applications.
