Spline Hobs Dealers in Patiala

• Material: ASP2052/S390/S290/ASP2030/M35

These are used for cutting parallel splines. These are manufactured with or without lugs, semi topping and shoulder clearance types.accuracy class: aaaaaa as per din 3968.

• Brand Name: Tool Masters India
• Condition: Good
• Product Name: Straight & Involute Spline Hobs
• Shafts: DIN 9611
• Place Of Origin: Patiala
• Min. Order Quantity: As per Client Requirement

Involute Spline Hobs as per DIN 5480, 5481 & 5482, NFE 22 141, ANSI B92.1Parallel Spline Hobs with or without lugs, semi-topping and shoulder clearanceFor Power take off shafts- DIN 9611

• Material: M-2, M35, ASP 30 etc.
• Range: Module 1.0 to 40 (50 to 360mm diameter) : DP 50 DP to 0.7
• Accuracy: A, B & C (as per DIN 3968, BS 2062)
• Forms: Non-Topping, Semi-Topping, Topping, finishing, pre-shaving, pre- grinding
• Finish: Satin S. Steel 304 Grade : Bar-be-que Electric
• Use: Use in wet or dry cutting applications

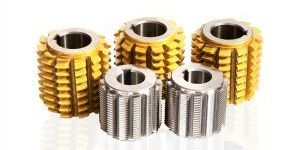

Our company’s name figures in the list of renowned Manufacturers and Exporters of Involute Spline Hobs from Punjab. We make available Involute Spline Hobs in HSS M2, M35, M42, ASP 2030, ASP 2052 & ASP2060 material. Our Involute Spline Hobs come with special features like topping, semi topping, protuberance, pre-grinding, pre-shaving etc as per the specific requirements of the buyers. We hold the expertise of delivering bulk orders of the Involute Spline Hobs.   Details : Gear Hobs for Spur and Helical Gears in single start and multi-start threads can be supplied in Class ‘A’ , Class ‘AA’ & Class “AAA” accuracies conforming to DIN 3968 standard with pitches ranging from 0.5 to 25 Module or equivalent D.P.’s in various pressure angles.

Catering to the diverse industrial requirements, we offer Spline Hobs to the clients. We are renowned Spline Hobs Manufacturer, Supplier and Exporter in Patiala, Punjab. Spline Hobs are used for cutting of parallel splines. Our Spline Hobs are available in numerous specifications and types. The entire gamut of Spline Hobs is manufactured from the finest materials that are imported from different parts of the world. Profiles Of Spline Hobs Straight SidedInvolute Types Of Spline Hobs Class ‘A’Class ‘AA’ Spline Hobs Are Available With With lugs without chamferWithout lugs without chamferWith lugs and chamferWithout lugs but with chamferWith full fillet radius without chamferWith full fillet radius with chamfer

Do you want an HSS broach cutting tool that is effective, original, and is designed to do the job precisely? Look no further, at Shaktiman Tech. Tools we produce broaching tools for sale that are made from top quality materials. Our broach tools are made in several lengths, sizes, and shapes to suit our esteemed customers. Our ability to maintain consistency has made us a renowned company in the field of cutting tools manufacturing. Shaktiman broach sharpening service is also available up to 1600 mm length. We maintain proper rake angle and guilt depth.

Involute Spline hobs are used for cutting all kinds of standard and non-standard involute splines as per DIN 5480, 5481 & 5482. These are produced in the pressure angles of 20°, 30°, 37.5° & 45°, with or without shoulder clearances in single and multi-start designs. Accuracy Class: AAA/AA/A/ as per DIN 3968 Material: ASP2052/S390/S290/ASP2030/M35 Types: Bore & Shank type Multi-gashes Multi-start Shoulder Clearance type Supplied with all types of latest PVD Coatings.

We manufacture and supply spline hobs, that are used for cutting all kinds of standard as well as non standard involute splines. Designed with precision, these spline hobs are available in different grades and specification to suit varied application needs. Further, we also make sure that these are in strict compliance with the prevalent industrial standards.

Range : Module: 1.0 to 40 (50 to 360mm diameter) DP : 50 DP to 0.7 DP Start : Single Start Accuracy : A, B & C (as per DIN 3968, BS 2062) Forms : Non- Topping, Semi-Topping, Topping, Finishing, pre-grinding Material : M-2, M-35, ASP 30 etc.

We manufacture and supply spline hobs, that are used for cutting all kinds of standard as well as non standard involute splines. Designed with precision, these spline hobs are available in different grades and specification to suit varied application needs.
