Super Capital Tools Focal Point, Patiala, Punjab

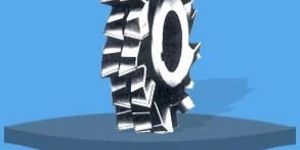

Side & Face Cutters : Staggered Teeth as per Iss : Diameter : 50 Mm to 200 Mm Width : 5 Mm to 32 Mm as per Bss : Diameter : 2.1/2" to 8" Width : 1/4" to 1"

Sprocket Hobs, these are usually supplied in un-ground form to cut roller chain Sprocket to DIN, American Standards with the Range from 14" to 3" pitch or 5 mm to 76.2 mm. Hobs to cut Spiral Profile Sprockets can also be supplied on request.

Spline Cutters are Furnished for Involute and Parallel Key Splines, Involute and Straight Sided Serratons. for Special Spline Spline Cutters, the Drawings of the Components Should Be Supplied.

These Cutters are furnished for Involute and Parallel Key Splines, Involute and Straight Sided Serrations. For special Spline Cutters, the Drawings of the components should be supplied.

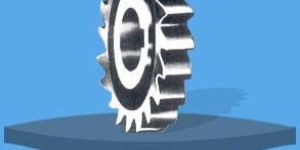

Slotting Cutters as per Iss : (key Way Milling Cutters) Diameter : 50 Mm to 200 Mm Width : 5 Mm to 32 Mm as per Bss : Diameter : 2.1/2" to 8" Width : 1/4" to 1"

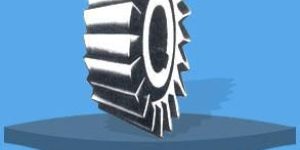

Single Angle Milling Cutters as per Iss : Diameter : 50 Mm to 100 Mm Angle : 450, 60 0, 65 0, 70 0, 75 0, 80 0width : 12 Mm to 36 Mm as per Bss : Diameter : 2.3/4" to 3" Angle : 300, 40 0, 45 0, 50 0, 60 0, 70 0, 80 0width : 5/16" to 5/8"

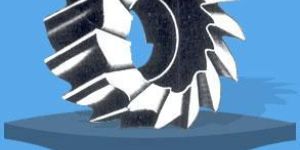

Shell End Mill Cutters as per Iss : Diameter : 40 Mm to 160 Mm Width : 32 Mm to 68 Mm as per Bss : Diameter : 1.1/4" to 6" Length : 1" to 2.1/4"

Diameter:2,14", 2.34", 3",Width:020" to .187".Our range covers from the most sophisticated engineered cutting tools like Gear Hob Cutters, Gear Milling Cutters, Slitting Saws, Scalping Cutters of grade H.S.S. (M-2 M-35) Steels on ISBSAS and DIN standards. As per BSSDiameter: 2,1/4", 2.3/4", 3"Width: 020" to .187"

These cutters are used to scalping copper & brass strips.Material used is High Speed Steel Imported ( M-2 M-35) grade.Length:16" to 22".

Diameter : 6" to 8"

Diameter: 6" to 8"Length: 16" to 22"These cutters are used to scalping copper & brass strips.Material used is High Speed Steel Imported ( M-2/ M-35) grade.

Reamers are normally supplied with straight flutes or Helical Flutes for general purpose thru hole reaming.Material: HSS M-2, M-35, HSS Co8eAs per DIN / BS and ISO standards

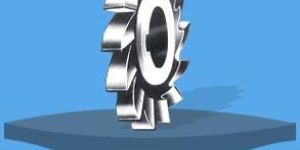

Side & Face Cutters : Plain Teeth as per Iss : Diameter : 50 Mm to 200 Mm Width : 5 Mm to 32 Mm as per Bss : Diameter : 2.1/2" to 8" Width : 1/4" to 1.1/2"

These End Mill Cutters required to cut double Helical Gears upto 30° angle.Range : 8 Module to 40 Module.635 DP to 3 DP.

These cutters are used to scalping copper & brass strips.Material used is High Speed Steel Imported ( M-2 M-35) grade.Length:16" to 22".

Diameter : 6" to 8"

Metal Slitting Saws - Coarse & fine Teeth as per Iss : Diameter : 50 Mm to 250 Mm Width : 1 Mm to 8 Mm as per Bss : Diameter : 2" to 10" Width : 1/6" to 1/4"

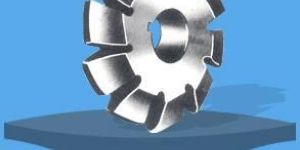

Involute Gear Cutters are Supplied to Cut Any Number of Teeth in Gears from 1 Module to 55 Module and from .5 Dp to 50 Dp Conforming to Bs 2518, is 5698 in a Set of 8 Numbers and as per Generated Profile.

Involute Gear Cutters are supplied to cut any Number of Teeth in Gears from 1 Module to 55 Module and from .5 DP to 50 DP conforming to BS 2518, IS 5698 in a set of 8 Numbers and as per generated Profile.

Manufactured generally to Customers Drawings and specifications in Topping and Non-Topping Forms Shank (worm Gear) Hobs can be supplied in Machine Relieved as well as in Ground Relieved Forms. These Cutters can be supplied in Single Start and Multistart Pitches as per requirements of the user. Maximum length of the cutter (including shank) that can be had is 400mm.

Gear shaper cutters Manufacture Gear Shaping Cutters in Module, DP and CP series. Spur as well as Helical Shaper Cutters can be supplied in Disc, Hub and Shank Type Varieties. Material used is generally AISI M35 Grade and accuracies are as per DIN-1829 Standard Class ‘AA’ and Class ‘A’.Profile modifications including Chamfer, Semi-Topping, Topping , Protuberance, Flat or Fillet Root can be provided.

SCT Manufacture Gear Shaping Cutters in Module, DP and CP series. Spur as well as Helical Shaper Cutters can be supplied in Disc, Hub and Shank Type Varieties. Material used is generally AISI M35 Grade and accuracies are as per DIN-1829 Standard Class ‘AA’ and Class ‘A’.Profile modifications including Chamfer, Semi-Topping, Topping , Protuberance, Flat or Fillet Root can be provided.

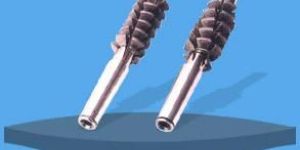

Gear Hobs are supplied to cover the Range of 64 DP to .7 DP or 0.5 Module to 36 Module conforming to DIN 3968, BS 2062 part 1. Special profile Hobs with protuberance, Topping, Semi Topping pre-shaving, pre-grinding are also being supplied on request.

Hss Shank Type (worm Gear) Hob Cutters They are Manufactured Generally to Customers Drawings and Specifications in Topping and Non-topping Forms Shank (worm Gear) Hobs Can Be Supplied in Machine Relieved as Well as in Ground Relieved Forms. These Cutters Can Be Supplied in Single Start and Multistart Pitches as per Requirements of the User. Maximum Length of the Cutter (including Shank) that Can Be Had is 400 Mm.

Diameter : UPTO 340 MM Machine Relieved & Ground Form Gear Hobs are supplied to cover the Range of 64 DP to .7 DP or 0.5 Module to 36 Module conforming to DIN 3968, BS 2062 part 1. Special profile Hobs with protuberance, Topping, Semi Topping pre-shaving, pre-grinding are also being supplied on request

End Mill Gear Cutters These End Mill Cutters required to cut double Helical Gears upto 30° angle.Range : 8 Module to 40 Module .635 DP to 3 DP.
