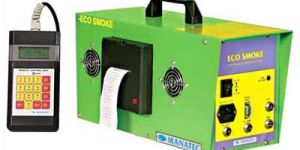

Diesel Smoke Meter
Get Price Quote
We are reckoned as one of the reputed Manufacturers and Exporters of Diesel Smoke Meter in India. The Electronic Diesel Smoke Meter is light weight, portable enabling easy mobility. Nearly 1000 installations are working well across in India and abroad. Portable Diesel Smoke Meter is certified by the ARAI in India
Battery based RPM measurement
Suitable for road test using vehicle battery
RS232C serial port for PC interface
Portable light weight
Model
Eco Smoke
Salient Features
Measures smoke opacity of diesel vehicles in % opacity and K value
Measurement principle : Partial flow, optics based on folded geometry
Suitable for free acceleration test
RPM and Engine oil temperature measurement
Battery Based RPM measurement suitable for all vehicles
Portable, Compact and light weight design
DC operation suitable for "Road Tests" using vehicle battery
Low voltage indication for battery operation
Automatic Zero and Span calibration
Automatic Pressure Regulation
Handheld, Menu driven LCD remote control unit
Pass / Fail indication and emission limit in printout
Vehicle no., vehicle specification, Operator name and test data in printout
RS232C serial port for PC interface
Technical Specifications
Measurement ParametersRangeResolutionOpacity0 - 99.9 %0.10%K-value0 - 99.9 %0.01 m-1Linearity± 0.1 m-10.1 m-1Repeatability± 0.1 m-1Zero & Span drift± 0.1 m-1Response time - Physical< 0.4 secondsResponse time - Electrical< 1 milli secondWarm up time< 8 minutesEngine RPM200 - 9990 RPM10 RPMEngine Oil Temperature0 - 1500 C10 CSmoke measuring cell length215 mmPrinter24 Column Dot matrix Power Supply12V DC (or) 230V AC ± 10%, Single phase, 50HzPower Consumption300 Watts in AC / 100 Watts in DCOperating Temperature+50 C to +500 C
Standard Accessories :
Smoke sampling hose : 1 No.
Smoke sampling probe - ID 16 mm : 1 No.
Oil Temperature probe : 1 No.
Battery cable : 1 No.
Optional Accessories :
RPM sensor clamp assembly : 1 Set
Smoke sampling probe - ID 22.5 mm & ID 10 mm : 1 No.
Smoke test software : 1 No.
RS232 PC Interface cable : 1 No.
24 Column Dot matrix Printer : 1 No.
