Aarco Exim services Pvt Ltd Nigdi, Pune, Maharashtra

Wet Collector re upper sectionlower section and ventuary unit. Upper section consist of inlet chamber, dewatering baffles, outlet opening and access doors. Lower section is provided with hopper and ventuary. The dust laden fumes enters into inlet chamber then flow downward through ventuary, the water trap the dust particle into agglomerates and the dust is removed in the form of slurry from hopper.

Turbine Ventilator state air is through roof mounted turbo type ventilator, where positive draft is created by this Ventilator and does not allow rain water to enter. The Ventilator are available in two size 450mm & 600mm with and without Motor.

Trolley Mounted Supply Cum Exhaust Air-Blower is feasible for exhaust of welding fumes in shipyard area where space is a criteria .The MS fabricated suction discharge manifold is provided with provision to connect 8 nos PVC hose pipe. Design parameters generally conform to international standards.

The Aarco Double Skin Airwasher Unit is the latest and most advanced Factory assembled unit, a unit evaporative cooler, comprising inlet louvers,Filter section humidification media water distribution system, pump, CentrifugalFan, Motors, SS Water Tank, double skin body. The air is allowed to pass through the humidification media at the sametime water is added at the top Through distributor. Water then gets distributed over the contact surface of thePad by means of special angle flute arrangement. Water flow towards the air Inlet side, thus providing cross flow arrangement. The water gets evaporated when it comes in contact with air. It withdraws the sensible heat of air as the heat of evaporation. This process inturn brings down the temperature of air The air temperature thus approaches the wet bulb temperature of the incoming Air. The humidification media consist of corrugated sheets of wettable, strong Cellulose material impregnated specially with decay resisting chemical with Built in eliminators. These units are available from 5000CMH to 250,000CMH And temperature drop with respective atmosphere is 8 to 10 deg centigrade.

Roof Ventilators are available from 2200CFM to 1,30,000 CFM at Pressure from fee air delivery to 25mm WG. or higher static pressure. The high volumes of air required for adequate ventilation of large plants can easily and most economically be handled with Aarco Roof Ventilators. These units are excellent for both general Ventilation and spot ventilation of trouble areas. The vertical discharge jets.

Laminar Flow Unit air flow capacity of 1000 m3hr to 60000 m3hr and upto 175mm of static pressure . The air handling unit comprising of mixing chamber with aluminum dampers, filter section with 10 micron, 5 micron, 3 micron, 03. Micron filters as per the requirement.

Gas scrubber are air pollution control devices that use a high-energy liquid spray to remove aerosol and gaseous pollutants from an air stream. Gas scrubbers are commonly used to help control emissions of gases into the atmosphere. The basic wet scrubber consists of a vessel with adequate cross-sectional area to provide the correct air velocity, a depth of packing media for distributing scrubbing solution like caustic or base solution that can capture and neutralize the gases, recirculation system to provide the correct volume of solution throughout the packing and a demister pad or mist eliminator to prevent excess scrubbing solution from re-entraining into the exhaust stack.

Engine Test Bed Cooling Blower Dynomo Engine Cooling, Vehical cooling blower OL 100 KMP to 150 KMP. This centrifugal fans are designed 2 deliver air at the velocity of 100kmph to 150 kmph.

We manufacture and offer an optimum range of Dust Sheet. This provides protection to the furniture in a room, residential complex and for the storage of products in warehouses. Our range finds effective solution to such critical areas. We follow the qualitative patterns of industry and manufacture our product using premium grade of cotton materials. This sheet comes in varied sizes and designs. We also offer at market leading prices.

Dust Extraction Unit for Pharma Industries The pleated cartridges are fixed in vertically bag holding pates. These cartridges are removable from topbottom.Pleated bags are usually of 150 diameter with length upto 2Mtr.The filteration area of pleated bags are three times the cloth area which leads to increase the volume capacity of given dust collector.

Dust collectors are used in many processes to either recover valuable granular solid or powder from process steams or to remove granular solid pollutants from exhaust gases prior to venting to the atmosphere. They are often used as an air pollutants control device to maintain or improve air quality. They are available in capacities ranging from 300CFM to 100000 CFM.

Dust collector are used in many processes to either recover valuable granular solid or powder from process steams or to remove granular solid pollutants from exhaust gases prior to venting to the atmosphere. They are often used as an air pollutants control device to maintain or improve air quality. They are available in capacities ranging from 300CFM to 100000 CFM.

Double Skin Airwasher Unit is the latest and most advanced Factory assembled unit, a unit evaporative cooler, comprising inlet louvers,Filter section humidification media water distribution system, pump, CentrifugalFan, Motors, SS Water Tank, double skin body. The air is allowed to pass through the humidification media at the sametime water is added at the top Through distributor.

Double Skin Air Handling Unit with air flow capacity of 1000 m3hr to 60000 m3hr and up to 175mm of static pressure. The air handling unit comprising of mixing chamber with aluminum dampers, filter section with 10 micron, 5 micron, 3 micron, 03. Micron filters as per the requirement. The fan section is designed for DIDW plug fan with motor. The double skin panels are insulated with 2550 mm thick PUF insulation. The frame work comprises an assembly of extruded alluminium profile thermal break section joined by Nylon glass fibre regenerated corner. Coil section is designed for cooling coil, heating coil and direct expansion coil, The drain pan is fabricated from stainless steel sheet with drain connection. Entire assembly is mounted on PUF insulated bottom panel.

Cyclone Separators are normally used for collecting various types of Coarsed dust particles, in which dust laden gas enters a cylindrical chamber Tangentially at one or more points and leaves through a central opening. The dust particals by virtue of its intia, will tend to move towards the outside Wall from which it led into a receiver. The Cyclone is made of sheet Steel (M.S or SS).

Cross Flow Scrubber is a unique air pollution control device designed to remove a wide range of gaseous pollutants and small liquid or solid particles from process gas streams. The gas stream flows horizontally through the unique fill media at right angles To the downward flowing scubbing liquid.

Dynomo Engine Cooling, Vehical cooling blower OL 100 KMP to 150 KMP. This centrifugal fans are designed 2 deliver air at the velocity of 100kmph to 150 kmph.

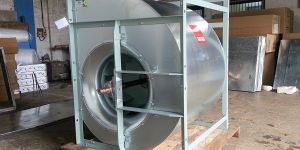

Centrifugal Blower are designed for Air handling, Ventilation, Dust Collection, Fume extraction, hot air systems etc. The capacities ranges from 200CMH to 5,00,000 CMH. DIDW fans Double Inlet Double Width Fan.

Blower are designed for Air handling, Ventilation, Dust Collection, Fume extraction, hot air systems etc. The capacities ranges from 200CMH to 5,00,000 CMH. DIDW fans Double Inlet Double Width Fan, Double Stage High Pressure Fan.

Axial Fan Flow Fans ranges from capacities of 300 CMH to 60,000 CMH. These are suitable for various applications for ventilation and exhaust Purpose. The fan is equipped with cast aluminum impeller with airfoil section Blades which discharges powerful air stream with effective velocity. Fans can be supplied with flameproof motor and FRP lining.

Air Filters are available up to 4000M3hr. with face velocity 1.5MSec. to 3MSec. initial pressure drop 6Pa to 25Pa and average efficiency up to 99.9998% filter class G1 to U15 ( BS BN 779 ). The filters are fabricated under exacting condition to meet the rigid specification of international Test Standards as per U.S. Federal Standard 209 B.

Air Curtains These are especially designed for Shops, hotels, pharmaceutical industries, printing industries, hospitals, Breweries, food industries, steel and cement plants.Aarco Air Curtains are suitable for door width3’,4’,5’,6’,8’and 10’ The nozzle velocity varies from 10msec to 20msec. The units are also available with flameproof motor and SS construction.

Width : 3’,4’,5’,6’,8’and 10’
