For the determination of specific gravity and water absorption Of aggregate. It is made of G.I. wire-mesh approx. 20 cm dia x 20 cm high. Complete with handle.

Water baths have uses for different purposes. Water baths are capable of heating cement samples to a desired temperature for as long as required under atmospheric pressure. Water baths also keep pressure cured samples submerged under heated water to prevent drying shrinkage that may induce fractures within the specimen.

Consists of a metallic frame bearing a movable rod with cap at one end a vicat mould 70mm in dia at the base, 50mm at the top and 40mm high andwith a glass base plate consistency plunger intial and final needless in a nice Jewellary case.

Used to determine the amount of water required to produce a cement paste of standard consistency and the setting time. The time it takes for a cement to stiffen to a standard value after addition of water is commonly known as the set time. The test involves mixing cement with water and then measuring its resistance to penetration of a standard probe at varying intervals of time, until a certain value is reached.

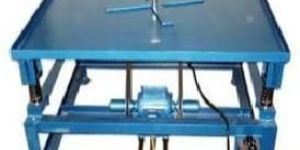

The Vibrating Table produces better concrete Moulds and cylinders by removing entrapped air. It distribute concrete evenly inside the moulds and nearly eliminate the problems of bug holes and air bubbles.General Descriptions & Specifications :The Vibrating table is entirely constructed of thick steel. The table top is made of thick mild steel plate and has stops along its edges to prevent moulds from walking off the table during operation. A cross arm adjustable on a vertical rod at the centre of the table is provided to hold the moulds while operating the table. The variable pitch pulley arrangement permits the variation of frequency between maximum of 3600 vibrations down to 2600 vibrations per minute. A speed regulation handle is provided for increasing or decreasing the frequency. The vibrator is mounted on cushioned steel vibrating deck. A switch is provided for starting the motor. Operation on 440 V, three phase, A.C. supply.

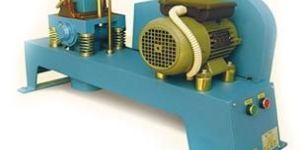

To meet the high demands of our esteemed clients, we supply a wide collection of Vibration Machines. These vibration machines are put to use for the purpose of preparation of mortar cubes. In addition, this range is very useful for the checking of compressive strength of ordinary and rapid hardening. Moreover, these products come with comprise vibrating frame assembly and an electric motor mounted on a strong base.Features:• Low maintenance• Reliable functioning• High performance

Consists of a torque head adjustable in height by means of a lead screw rotated by a drive wheel to enable the vane to be lowered into the specimen. Rotation of the vane is by means of a hand wheel which operates a worm gear arrangement turning the upper end of a calibrated torsion spring. Vane dia, rod dia, vane size & vane height are as per IS specification.

It is designed to determine the swelling pressure developed by a soil specimen moulded to desired densities at known moisture contents, when soaked in water. The load applied to restrain the swelling is transfered to a load measuring proving ring through a perforated swell plate and a load transitor bar. The proving ring is attached to the lead screw of load frame, hand operated, designed for the purpose. The load frame has a worm gear arrangement for initial setting and for subsequent volume change compensation. A soakingtank is provided for saturating the specimen and the base of the mould has channeis and radial grooves with connecting holes.

Used to determine grade of bitumen. The penetration tests determine consistency of bitumen for the purpose of grading Depth in units 1/10 of millimeter to which a stand ard needle having a standard weight will pe netrate vertically in a duration of five secon ds at a temperature of 25 ยบC determines pen etration for gradation.Accessories : Penetrometer Cone : made of Gunmetal and is fitted with a hardened and ground detachable steel, tip and a stem, Total moving weight is 150 0.1 gram.Automatic Standard Penetrometer :Same as above RSEP-180, but supplied with transistorized timer and electro-magnet incorporated in the cluth mechanism to accurately control penetration time to exact five seconds.

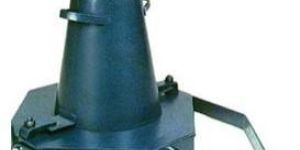

The oldest, most widely used test for determining workability is Slump Test Apparatus. This test is used to determine the workability of fresh concrete, which would normally be undertaken at the point of delivery to ensure the concrete, is of adequate consistency for placement. The test is applicable to concrete of medium workability.General Descriptions & Specifications :The device is a hollow cone-shaped mould. The mold is filled in three layers of each volume. Each layer is rodded with a 16mm steel rod 25 times. The mould is then lifted away and the change in the height of the concrete is measured against the mould. The slump test is a measure of the resistance of concrete to flow under it own weight. The apparatus comprise of a slump cone with handles made of mild steel sheet, a chrome plated steel tamping rod of 16 mm diameter X 600 mm long, rounded off at one end, with a scale marked on it and a steel base plate with a carrying handle.

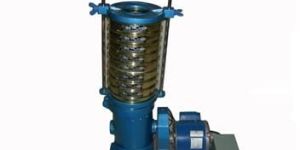

We bring forth well engineered Gyratory Sieve Shakers that are used in various quality control applications. Our Gyratory Sieve Shaker is driven by ¼ H.P. Electric motor through a reduction gear that can carry 6" / 8" /12" /18" Test Sieves with one set of lid and Pan. With the Gyratory motion of the table, there is an upward and downward movement but the movement is inclined to the vertical axis and the direction of inclination changes progressively in the clockwise direction having frequency of about 270 vibration per minutes, with or without timer.

This is light, portable but sturdy sieve shaker suitable for bench mounting. The side to side movement to he carrier which can take up to 7 sieves of 15 cm or 20 cm diameter is through a train of gears operated by a hand wheel.

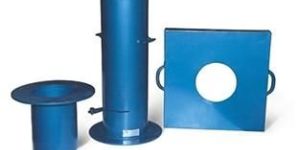

To determine the field density of soil at a given location by sand replacement methodREFERENCEIS-2720-Part-28-Determination of dry density of soils in place, by the sand replacement methodAPPARATUS1. Sand pouring cylinder 2. Calibrating can3. Metal tray with a central hole4. Dry sand (passing through 600 micron sieve)5. Balance6. Moisture content bins7. Glass plate8. Metal tray9. Scraper toolTHEORY AND APPLICATIONDetermination of field density of cohesion less soil is not possible by core cutter method, because it is not possible to obtain a core sample. In such situation, the sand replacement method is employed to determine the unit weight. In sand replacement method, a small cylindrical pit is excavated and the weight of the soil excavated from the pit is measured. Sand whose density is known is filled into the pit. By measuring the weight of sand required to fill the pit and knowing its density the volume of pit is calculated. Knowing the weight of soil excavated from the pit and the volume of pit, the density of soil is calculated. Therefore, in this experiment there are two stages, namely1. Calibration of sand density2. Measurement of soil density Sand Replacement Method PROCEDURE

General Description & Specification:• Hand Operated• Electrically OperatedHand Opertaed:Also called Softening Point Apparatus. This apparatus is meant for determination of softening point of bituminous materials according to IP 58 and IS 1205. Softening point is that temperature at which the specimen under test becomes soft enough to allow a steel ball of specific dimension to fall a required distance under test condition. The apparatus consists of Glass beaker of heat resistant glass having internal diameter of 8.5 cm X 12 cm depth (approximately), two steel balls each of 9.5mm diameter, two tapered brass rings, two ball guides, ring stand and a hand stirrer.Electrically Opertaed:• Same as above but Electrically Operated.• (without thermometer) complete with one 1000 mililiter flask and one 100 mililiter crow receiver.• Stainless Steel Scoop

Description Features & Specification For Auto Level Sokkia B-40 Precise, Reliable Automatic CompensatorThe B series levels incorporate the most precise and reliable compensator available in the market today. The technological superiority of the Sokkia automatic levels has been proven since the release of the best-selling B2 model in 1963. Four super-high-tensile suspension wires and magnetic damping system ensure accuracy and stability even when exposed to temperature changes, vibrations, or shock.Superior TelescopeOptimally designed telescope provides exceptionally bright and sharp view that reduces operator's eye strain. Ultra-short focus distance of 20cm (7.9in.) from end of telescope makes it easiest to use in confined locations.Quick CollimationTwo knobs of endless horizontal motion drives can be operated with either hand for fast and easy aiming.Horizontal Angle MeasurementHorizontal angles can be read in 1° or 1 gon units. Freely rotatable circle allows any angle reading from zero. Right angles can be quickly set for layout and alignment tasks. The readout window is conveniently located on the instrument base - directly below the eyepiece.StadiaThe stadia lines on the reticule allow distance measurements. Simply multiply the staff length between the top and bottom stadia lines by 100.Easy to AdjustReticule adjustment is made with one screw. Circular levels vial is adjusted with two screws. Both adjustments are simple and fast with provided tools.Standard EquipmentB Series Automatic Level Instrument, Lens Cap, Plumb Bob, Vinyl Rain Cover, Cleaning Cloth, Tool Kit, Operator's Manual, Hard Carrying Case.

For quick determination of moisture content of materials in powder from i.e. soil sand, coal, pottery, ganister, cement etc. A weighed quantity of the substance under test is placed in the body of the tester together with a measured quantity of absorbent and the tester is then sealed and shaken vigorously thereby bringing the sample and the absorbent into intimate contact. The pressure of gas liberated by interaction of moisture in the sample and absorbent actuates the gauge which is directly graduated in percentage moisture on the wet weight basis.

This is for determining the bearing capacity of sub-grade soils or for compaction control and meets the requirement of ASTM D-420. Consists of a sturdy handle under which is fixed a sensitive proving ring. An extension piece is fixed on to the bottom of the proving ring and carries the detachable penetration cone at its tip. Proving ring capacity is 130 kg and the .002 mm dial indicator is provided, indicates the penetration load applied with a sensitivity of approx. 1/2 kg. division. A calibration chart is provided for the proving ring. Instrument is complete in wooden carrying case.

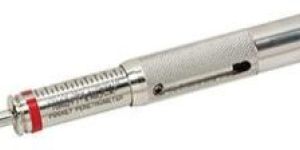

It consist of a body housing a spring plunger calibrated to read 70kg X 1kg and a handle. Long stem, graduated at 12.5 mm interval to indicate to the depth of penetration and for use with needles of larger areas. Small stem, graduated at 12.5 mm intervals, to indicate the depth of penetration and for use with needles of smaller areas. One needle point set comprising one each of 0.25, 0.5, 1, 1.5, 2, 3, 5 and 6 sq cm. cross sectional area. Complete as above in a wooden carrying case.

IS-2720 (Part VII) It consist of a compaction Mould 100 mm DIA. X 127.3 mm height X 1000 cc volume complete with collar and base plate all steel construction. Rammer 2.6 kg X 310 mm controlled fall through a guide tube. Rammer 4.89 kg X 450 mm controlled fall for heavy compaction test as per IS-2720 Part VIII.

This is for evaluating the strength of soil on field exploration or construction site and in the preliminary laboratory studies.It gives directly the unconfined strength.

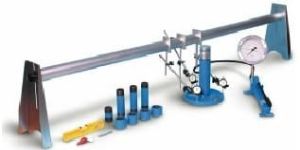

Unit consists of Steel Bearing Plates 25 mm thick of 75, 60, 45 and 30 cm dia Plain and Chequrred. Bridge support complete with two dial guage clamps.Hydraulic Jack 50/ tonnes capacity complete with 2 meter steel pipe connection with separate pump and pressure guage.Ball and socket for the jack.Load Truss complete with four soil anchors and working collors. Capacity 20 and 30 ton.Dial guage .01 mm least count.

Marshall Stability Test Apparatus used for the measurement of resistance to plastic flow of cylindrical specimens of bituminous paving mixtures when tested in a marshal load frame. Test specimens are produced and tested at a speed of 50.8mm/min.The maximum load(stability) and deformation (flow) of the specimen are recorded. Generally the test is applicable to hot mix designs using bitumen and aggregate of maximum size of 25mm. Widely used for designing and evaluating bituminous paving mixes.Descriptions and Specifications :Load Frame• A floor standing compression loading frame of 50 KN capacity with motor and worm gear housed within the base unit, producing a platen speed of 50.8mm/min. Limit switches are provided to cut out the platen over run on the downward travel. A handle is provided for manual operation during calibration etc. The load frame is fitted with ON/OFF/Reversing switch and power indicator lamp i Downloadn front. Suitable to work on 230V, 50 Hz, AC single phase. Marshal Moulds (3 Nos.)• 4”dia X 3” height specimen moulds, base plates and Extension collar. Manufactured from steel.(6“ dia mould can be supplied at extra cost) Compaction Pedestal• Comprising of a hard wood block with a steel plate, complete with specimen holder, semi circular base and a circular top to hold 4” dia specimen mould in place during compaction of the specimen. (Pedestal to accommodate 6” dia specimen can be supplied at extra cost) Designed for use with the compaction pedestal and mould. The hammer has a falling weight of 4.535 kg and free fall of 457 mm. Breaking Head Assembly• Consisting of upper and lower cylindrical segments with provision for fixing flow meter. Suitable to take 4” dia specimens. ( Assembly to accommodate 6” dia specimen can be supplied at extra cost) Specimen Extractor• Consisting of a load transfer bar, pressure plate and steel ball, Specimen Extractor• Consisting of a load transfer bar, pressure plate and steel ball, Optional Accessories:• Proving Ring of 30 KN capacity with calibration certificate with traceability• Flow meter Dial Gauge with 0.01mm graduation and 25mm travel• Water bath with Thermostatic or Digital Control with stirrer• Electronic Balance of capacity 5 kg/1gm or 2 kg/0.1 gm or Two Pan Balance with set of weights and analytical weight box• Pair of Asbestos Gloves, Filter Paper ( Pack of 100 ), Misc items: Spatula, Scoop, Mixing Tray, Trowel, light mineral oil and Benzene

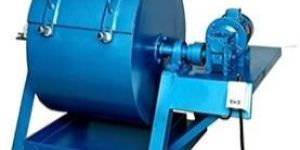

Determining the aggregate Impact value of coarse aggregate. Consists of a base weighing between 22-30kg with a lower surface of not less than 30cms and support columns to from a rigid frame work around the quick re. lease trigger mechanism to ensure an effective free fall of the hammer during test. The free fall can be adjusted through 380 5.0mm. The hammer is provided with a locking arrangement. A metal tub (Hammer) weighing13.5 to 14.0 kg. The lower end in cylindrical shape, 100mm in diameter and 5cm long with a 2mm chamber at the lower edge and case hardened. Complete with a cylindrical cup,102mm dia x 50mm depth, One measure 75mm dia x 50mm deep and tamping rod of circular cross section 10mm in diameter and 230mm long rounded at one end.

This unit consists of a cabinet which houses the gear system and motor mounted on a sturdy angle iron base. The loading is done through the bottom loading plate which is carried on a lead screw. The advancement of this lead screw is secured against rotating by a sliding key. The top bracket is adjustable in height and carries a hexagonal adaptor for taking standard proving rings. The instrument is fitted with a motor operation on 220/230 volts, single phase, 50 cycles A.C. supply.This is for evaluating the strength of soil on field exploration or construction site and in the preliminary laboratory studies.It gives directly the unconfined strength.
