Aditya Engineering Company, Pune Hadapsar, Pune, Maharashtra

Provides quick and precise measurements setting of CNC Tooling Pneumatic clamping for positive gripping Spindle taper: ISO 50 ISO 40 ISO 30 BT 50 BT 30 HSK 63 HSK 100 Work table is provided with storage facility

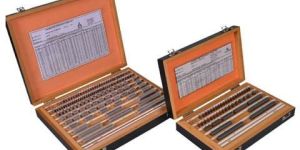

Manufactured as per DIN EN ISO 3650 Set of 47, 88, 112, 122 MMInch Gauge Blocks in set or individual Micrometer Calibration set in 10 & 13 pieces

Sturdy Shop Floor design, Surface plate & center heads are made from closed grounded, seasoned & stress relived iron castings on working face The center stock spindle is ground lapped to ensure accuracy of the spindle height One center is spring loaded for accommodating the different length shafts Usage: Diameter of all shafts, radial runout & axial runout (optional with extra attachment)

Brand Name : Aditya

Application : Industrial, Laboratory

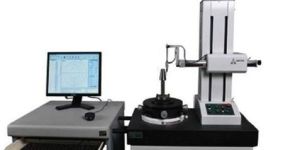

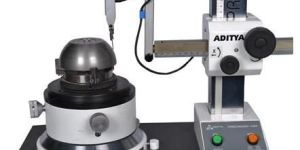

Enables effective measurement of Roundness, Concentricity, Eccentricity, Run out, Flatness, Parallelism, Squareness, Co-axility Manual vertical & horizontal movement under Rack & Pinion mechanism

Features : Rust proof design, Accurate measurement, Ruggedness

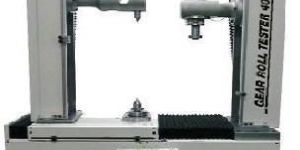

The Tester is designed & produced with regard to the knowledge & experience of the branch of meaning practice. The Tester in its basic equipment is determined for measuring of spur gear with straight and helical teeth Measure error of double flank rolling on one side direction Error of double flank rolling per pitch Tooth error, run out etc

Measuring Range : 0.5 - 100 mm

Resolution : 0.0002mm/ Tumor & 0.0001mm For Electronic Model

Accuracy : 0.004mm & 0.002 Mm With P10 Probe

Range : 0-100mm/0-4

Feature : Immaculate finish, Sturdiness, Reliable and accurate

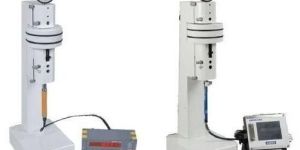

Calibration of Dial gauges (Plunger & Lever Type) and Bore Gauges Suitable for 0.01 and 0.001 mm least count Interface with computer for DG Cal Software Graphical presentation for errors in both directions

Feature : Robust mechanism, Resistant to abrasion

Calibration of Dial gauges (Plunger & Lever Type) and Bore Gauges Suitable for 0.01 and 0.001 mm least count Interface with computer for DG Cal Software Graphical presentation for errors in both directions

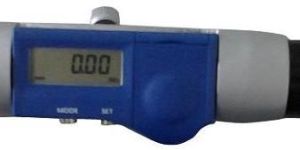

Checks hole thread size and depth simultaneously Replaces number of gauges Less time is required to check thread and depth as compared to other thread size and depth measuring methods Telescopic design of measuring plunger measures depth upto 80mm. More measuring ranges on request.

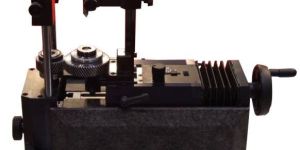

Gear TesterGEARTEC provides an innovative solution in field of Gear Inspection. An extensive program in terms of measuring and testing of gears. Service & Modernization of measuring equipment.Types of product for gear measurement : Bevel gear testing machines, Worm gear testing machines, Double flank testers, Gear Box tester.

Measuring Range : Upto 4mm To 230mm

Feature : blind design,to suit the bore.

Material : Mild Steel

Shape : C - Shape

Brand Name : Aditya
