Aquarius Technologies Pvt. Ltd. Shivane, Pune, Maharashtra

A high quality concrete floor or pavement requires not only to be level but it should also have high wear resistance, high compressive strength, reduced shrinkage and minimum water permeability.

Driven Type : Electric

Power : 3-6kw

Operating Type : Manual

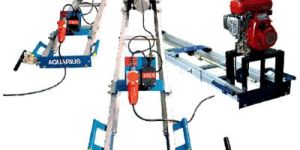

Double Beam Surface Vibrator SM Made from light weight, hollow, Aluminum alloy beams. Vibrations adjustable from 30% to 100%. Suitable for concrete depths up to 300 mm in conjunction with poker vibrators. Tensioning device for level correction. Specially designed vibrator motor and switches for operator safety. Sacrificial End Ties for longer beam life.

Two speed operation for electric version, Dead man’s grip for operator safety, Adjustable and foldable handle, Dual function – floating and trowelling, Easy change-over from disc to blades, Blade angle adjustable while machine is in operation, All controls on handle, easily accessible, Also ideally suitable for Epoxy Screed finishing, Available in two diameters 900 mm and 700 mm.

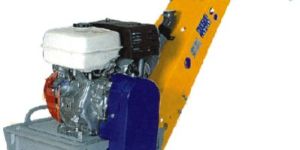

Concrete Scarifier VA 30 S FR 200 Loosely fitted cutters on drum produce heavy impact on surface, thus removing top layer. Parking brake provided for machine safety. Different types of cutters are available to suit different applications. Choice of different prime movers i.e. electric motor, petrol, or diesel engine. Wide range of applications. Providing skid-free texture on concrete road bridge wearing course. Profile correction on concrete pavements. Maintaining the desired coefficient of friction on airport runways. Providing a mechanical key on industrial floors to ensure proper bonding between the base concrete floor and the synthetic overlay.

Machine designed as per NHAI specifications, Powerful diesel engine drives hydraulic, and pneumatic systems, Hydraulic system for propelling vehicle, agitator, and paint flow, Compressed air for glass bead spray and cleaning brush attachment, Thermopac for indirectheating of paint, Extruder shoe adjustable.

Powered by 20 or 24 HP petrol engine, Different rotor diameters 900 mm and 1200 mm are available, Two separate control levers for controlling the machine travel, Equipped with water tank and sprinkler mechanism, Two navigation lights, Easy change of discs and blades.

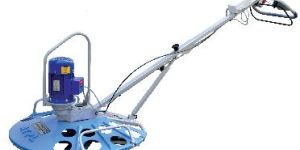

Power floater machine, Infinitely variable speed for Petrol version and single speed for Electric version, Dead man’s grip for operator safety, Adjustable handle, Dual function – floating and trowelling, Easy change-over from disc to blades, Blade angle adjustable while machine is in operation, All controls accessible on handle.

Platinum is the concept that gives the floor the best characteristics and it is the one HTC recommends in the first instance. It involves more grinding steps than in the other concepts. The result is an unbeatably durable floor. The method involves grinding away the concrete skin and exposing the underlying, stronger concrete, in the form of fine material, gravel and, where possible, aggregate. Due to the nature of the concrete construction, the larger aggregate may be exposed unevenly in the surface. Normally, 2 - 3 mm of the surface is ground away.

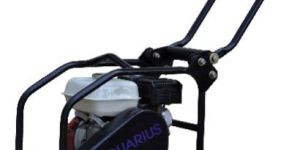

Minimum hand arm vibrations due to unique design of dampers, Suitable for light duty application on asphalt, granular soil and sand.With polyurethane pad on the base plate, can be used for fixing paver blocks. Foldable handle reduces the transport volume.Features Centrifugal clutch and recoil starter.

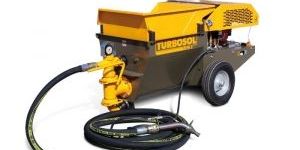

MINI AVANT G is an innovative piston pump that can deliver aggregates up to 6 mm in size, guaranteeing high performance with low operating and maintenance costs. Lightweight mortars for heat and sound insulation, fire-resistant mortars and special cement mortars. These mixtures can be used as bedding for brickwork or applied on indoor and outdoor walls and ceilings with spray guns, either as a coating layer or final finishing or for restoration and improvement work.

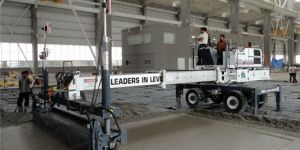

Small line machine namely CopperHead which is also suitable for upper deck or suspended slabs, Large line Laser Screeds suitable only for slabs on grade, The CopperHead XD is a self-propelled machine with a dual laser controlled screed head fitted on it. This machine powered by Honda petrol engine is also fitted with two laser receivers on screed board, 3 m screed board and a scrapper. The two laser receivers fitted on the screed board continuously receive the signal from the transmitter. This signal is processed and screed level is adjusted by a fast response hydraulic system. Solid ATV tyres allow the machine to be used on conventional re-bars as well as steel fibres.

Option of pouring either off-centre with model C 101 (i.e. left side) or between center with model CG 200 (i.e. between two rear wheels) depending upon size of the profile, Option of using hoppers of different sizes to suit the profile, Suitable for concrete depths up to 300 mm in conjunction with poker vibrators, Flexibility of using 2 or 3 hydraulic pokers depending upon size of hopper and profile. Self adjusting “Cross Slope” facility provided to ensure mould in correct position irrespective of lateral movement of hopper, Sufficient traction is available for pouring profiles in line and level.

Option of pouring either off-centre with model C 101 (i.e. left side) or between center with model CG 200 (i.e. between two rear wheels) depending upon size of the profile. Option of using hoppers of different sizes to suit the profile. Suitable for concrete depths up to 300 mm in conjunction with poker vibrators. Self adjusting “Cross Slope” facility provided to ensure mould in correct position irrespective of lateral movement of hopper.

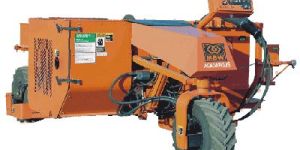

Kerb Laying Machine Option of pouring either off-centre with model C 101 (i.e. left side) or between center with model CG 200 (i.e. between two rear wheels) depending upon size of the profile. Option of using hoppers of different sizes to suit the profile. Suitable for concrete depths up to 300 mm in conjunction with poker vibrators. Self adjusting “Cross Slope” facility provided to ensure mould in correct position irrespective of lateral movement of hopper. Flexibility of using 2 or 3 hydraulic pokers depending upon size of hopper and profile. Sufficient traction is available for pouring profiles in line and level. Favourable power : weight ratio. High output of up to 12 mminutes depending upon size of profile.

Based upon substantial research and development, testing and experience, HTC produces a unique range of diamond tools to cover all the different type of procedures possible with the HTC diamond grinders. There are diamond tools suitable for anything from very rough grinding equal to scarifying to high gloss polishing of natural stone or concrete. Each tool has an explanation of its primary application.

Silver is the concept to choose if you want to obtain the characteristics of a well-ground floor and a matt surface. The result is an unbeatably durable floor. The method involves grinding away the concrete skin and exposing the underlying, stronger concrete, in the form of fine material, gravel and, where possible, aggregate. Normally, 2 - 3 mm of the surface is ground away. The floor is polished according to a well-established and tested method, using HTC's machines and HTC's diamond tools and in accordance with HTC's grinding guide.

The method involves grinding away the concrete skin and exposing the underlying, stronger concrete, in the form of fine material. Normally, 1 mm of the surface is ground away. The floor is ground smooth and the glossy surface makes the floor easy to clean and more resistant to tire marks from forklifts and dirt. Moreover, the light is reflected in a pleasant way.The floor is ground and polished according to a well established and tested method, using HTC's machines and HTC's diamond tools and in accordance with HTC's grinding guide.The floor receives a completely smooth and glossy surface with many excellent qualities, both functionally and aesthetically.

Bronze is a concept solely consisting of polishing steps. This concept does not expose fine material, gravel or larger aggregates. The concrete skin is polished without grinding it away, and the polished surface makes the floor easy to clean and more resistant to tire marks from forklifts and dirt. Moreover, light is reflected in a pleasant way.

HTC's floor polishing and grinding machines are appreciated by thousands of customers all over the world. The diamond floor grinders are available in several different sizes and versions depending on your needs and demands. As the leading made and supplier of floor grinding equipment HTC has the largest range of products. HTC floor grinders cover everything from edges to huge areas of thousands of square meters and are suitable for floor preparation, grinding and polishing of for example natural stone, concrete and wooden floors.

Weight : 147 kg

The core focus for HTC is to keep developing the ultimate flooring system. HTC believes in a system where all parts are made to match, all the way from the tools to the grinder and finally, the dust extractor.

Weight : 272 kg

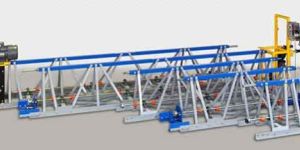

Individual sections to be joined together to suit the panel width,Individual sections carry eccentric shaft; hence uniform vibrations throughout the vibrator length, Option of manual or electric winch, Turnbuckle provided to give camber at each joint up to 10 mm.

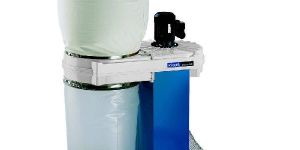

Everyone looks for ways to improve their business and make it more profitable. But a chain is never stronger than its weakest link. The core focus for HTC is to keep developing the ultimate flooring system. HTC believes in a system where all parts are made to match, all the way from the tools to the grinder and finally, the dust extractor. For efficient dust collection a competent dust extractor is required. HTC�s dust extractors comes in several sizes, ranging from the handy HTC GL 25 D to the powerful, remote controlled HTC 80 iD. Dust collection is a crucial part of the grinding process, from the health point-of-view but also to prevent surrounding areas being filled with dust.

The DDR 625 is a twin drum vibratory roller, ideal for compacting soil and asphalt. The machine is hydraulic and hence allows an overhang of only 7 cms, thus enabling the roller to run close to obstructions, such as walls. It is equipped with a large water tank and a push stop lever.Head Light for night-time operation, Water Sprinkler Bars on drums, Throttle control Lever - stepless.

Made from light weight, hollow, Aluminum alloy beams, Vibrations adjustable from 30% to 100%, Suitable for concrete depths up to 300 mm in conjunction with poker vibrators, Tensioning device for level correction, Specially designed vibrator motor and switches for operator safety, Sacrificial End Ties for longer beam life.
