Back Pull Out Pumps Dealers in Pune

• Discharge Nozzle Range: DN 32 up to 250 mm
• Capacity: Up to 350 M3/Hr
• Differential Head: Up to 140 Mtrs.
• Working  Pressure: Maximum 16 Bar
• Temperature: Up to 350 Deg. C
• Performance: Optimum

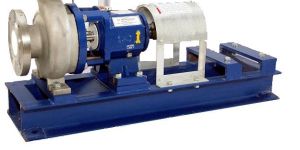

STRYKER SERIES HORIZONTAL BACK PULL OUT PUMPS are designed in investment casting and as per ISO 5199 design standard and DIN 24256 / ISO 2858 dimension standard for process and transfer duty applications for all types of liquids with and without solids content in an end suction horizontal back pullout design. All types of corrosive, abrasive, and crystallising liquids can be handled with various mechanical seal configurations with all API flushing options and with all types bearing cooling options.Material of Construction CASING  : CI, Ni-Resist, WCB, ARIC, DIN 4136, C 3C, CF 8, CF 8M, CF 3, CF 3M, CN 7M, CD 4MCuN, CE 3MN, others on request IMPELLER    : CI, Ni-Resist, WCB, ARIC, DIN 4136, C 3C, CF 8, CF 8M, CF 3, CF 3M, CN 7M, CD 4MCuN, CE 3MN, others on request SHAFT  : SS 410, SS 316, UNS 32760, Alloy 20, Teflon lined, others on request Sealing Versions Internal single seal bottom foot mounted External single seal bottom foot mounted Gland packed bottom foot mounted Double seal with API plans bottom foot mounted Steam jacketed bottom foot mounted Internal single seal centre foot mounted Double seal with API plans centre foot mounted. Applications: Chemical Process Industries Fertilizer Plants Bulk Drugs and Pharmaceutical Heating and Air Conditioning Plants Sugar Plant Water Supply Pulp and Paper Cement Agriculture Textile Jet Dyeing
