Band Heaters Dealers in Pune

• Voltage: 230 Volts / 415 Volts
• Wattage: 5%
• Max. Temperature: 750 c
• Minimum Dia: 30mm
• minimum Width: 25mm
• Std. gap between Clamps: 5-8mm

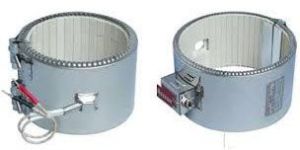

Ceramic Band Heaters are manufactured by using special ceramic insulation material ' Steatite ' and fabricated with stainless steel sheet. The heating coils is made of high quality Nichrome wires.The spot welded clamp bars, Allen screw clamping provides a uniform clamping.Ceramic Band Heaters are used for heating of moulds,dies,nozzles and barrels on all types of plastic processing machinery.Heaters having high watt densities provide high operating temperature, resulting into high productivity.Maximum sheet temperature up to 800 degree Celsius.Maximum Watt density up to 50 Watts per Square Inches for the blower air cooling, the perforated ceramic heaters with cooling fins or without cooling fins can be manufactured as per customers specification. Ceramic Band Heater consist of a helically wound resistance coil made from Nichrome 80/20 wire, evenly stretched and precisely strung through a steatie insulating bricks forming a flexible heating mat. The Ceramic heating mat along with 6 mm thick ceramic fiber insulation is assembled in S. S 304 sheet with serrate edges providing maximum flexibility for easy installation.   APPLICATIONS  These heaters are sutable to apply heat by conduction to cylinderical surfaces-Injection Moulding M/cs, Plastic & Rubber Extrudgers, Dies, Drum Heating, Blow Moulding M/cs.

• Size: 50-250
• Model Number: IM-234
• Brand Name: Inexo
• Material: Ceramic
• Shape: Round
• Application: Plastic moulding
• Shelf Life: 6 months
• Packaging Type: Std
• Customization: Yes
• Lead Time: 4-5
• Packaging Size: Std

• Material: Ceramic, Mica
• Certification: CE Certified
• Application: Industrial Use
• Color: Silver
• Warranty: 1year
• Features: Stable Performance
• Shape: Round

We are the prominent Exporter & Supplier of highly efficient Band Heater. Procured from the trusted manufacturers or vendors, our Band Heater is free from any sort of defects. Owing to its excellent performance, durability and longer service life, our Band Heater is widely in demand. Contact us for obtaining Band Heater in bulk and at the most affordable rates!

• Material: Steel

• Voltage: 220V
• Application: Industrial Use
• Warranty: 1year
• Power: 10Wt
• Features: Low Consumption, Stable Performance
• Maximum Power Density: 9W/cm2

• Applications: * Extruders * Blow Molding Machines * Injection Molding Machines * Blow Film Dies and Various Cylindrical applications.

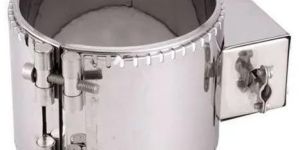

Mica Band Heaters are sheathed with plated C.R.C.A. / Brass or Stainless Steel sheets. Heaters are provided with 1.5mm asbestos insulation and stainless steel cover. The heating Element (Windings) is of high quality Nickel-Chromium resistance wires. Heaters are available in One-piece and Two- peice designs. Applications: * Extruders* Blow Molding Machines* Injection Molding Machines* Blow Film Dies and Various Cylindrical applications.

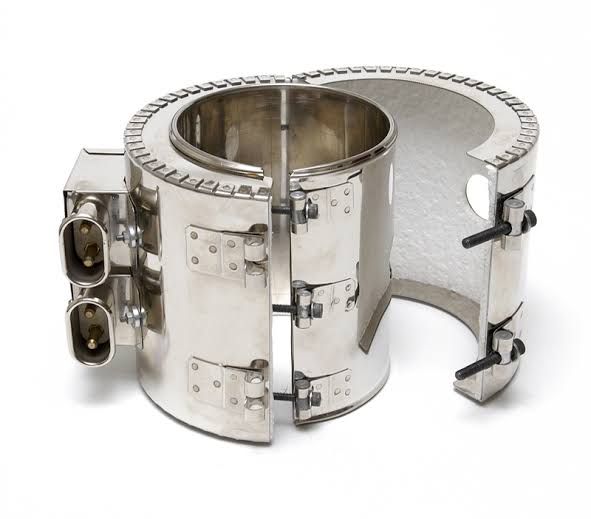

Ceramic Band Heaters Ceramic Band Heaters consists of a helically wound resistance coil evenly stretched and precisely strung through a specially designed ceramic insulating bricks forming a flexible heating mat. The ceramic heating mat along with ceramic fiber insulation is placed on a stainless steel housing made with serrated edges providing maximum flexibility for easy installation.

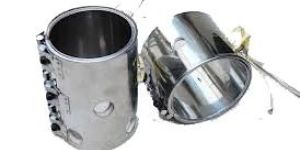

Our mica Band heaters are made of Nickel Chrome resistance ribbon precisely wound on specially selected Mica or Micanite sheet. It is then insulated by covered by metal sheathing and rolled to the required shape. We build every technically possible heater as per your requirement.   CONSTRUCTION Mica insulation provides excellent dielectric strength while permiiting rapid and efficient heat migration through the sheath of the heater and into and the object requiring heat. The use of mica llows the mass of the mass of the heater to be kept to a minimum , thus redusing weight, accelerating heat transfer , and keeping costs to a minimum. Datta mica bands are encased in electro-galvanized steel with stainless steel sheath offered as optional.   TERMINATIONS High quality resistor ribbon or wire is precisely wound over mica cores and terminated to either stainless steel terminal posts designed to allow slippage rather than be twisted off, or connected to nickel alloy lead wires.

Ceramic Bobbin elements are fitted in a metal tube for applications in liquids, ovens (in this case a robust construction is essential) They find a variety of applications in Industry. Can be manufactured in various diameters, lengths, kW ratings, and operating voltages.

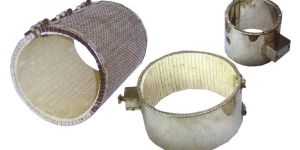

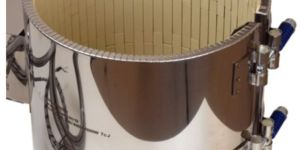

ceramic band heaters are made up of helical coils made of high quality of nickel chrome resistance wires. These coils are inserted in special designed ceramic steatite insulators with evenly stretched and flexible fitting mat form. The heater fabricated with heavy gauge s.s. Body and spot welded clamp bars to provide a uniform clamping farma. This rugged construction results in long life heaters. application:• extruder and blow moulding • dies and moulds • cylinders (barrel) plastic injection moulding • drum heating features: • longer life • nickel chrome resistance wire • high efficiency and durability • maximum temperature 300°c • maximum 45 watt per square inch

• Brand Name: GN HEATING SYSTEM
• Voltage: 220 & 440
• Power Source: Electric
• Phase: Single Phase,Two Phase & Three Phase
• Heater Type: Ceramic Band Heater

• Features: Durable, Heat resistant, Longer life working

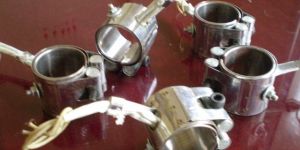

Specifications-: We offer an extensive range of Industrial mica band heater in different diameters width wattage & sheet available to our customers. Minimum Diameter: 25mm up to as per requirement. Minimum Length: 25mm up to as per requirement. Maximum Watt: 20W per Sq. inch Applications-: Mica band heaters are ideal for plastic processing application

• Material: SS
• Power: 100-10000 W
• Voltage: 415V AC
• Frequency: 50Hz
• Country of Origin: Made in India
• Brand Name: THERMOSYS
