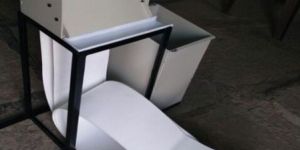

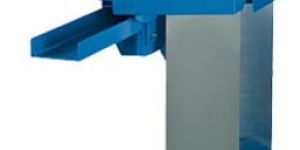

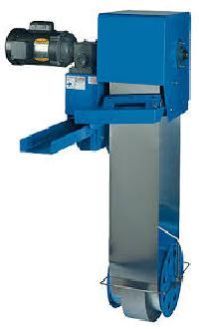

Belt Oil Skimmer Dealers in Pune

• Material: Stainless Steel, Mild Steel
• Oil Recycle Rate: 0-5 L/Hr, 5-15 L/Hr
• Width of Belt: 0-50 MM, 50-400 MM
• Frequency: 0-50 Hz, 50-100 Hz
• Voltage: 0-60 V, 60-440 V
• Phase: Multi

• Size: 10inch, 11inch, 12inch, 8inch, 9inch
• Type: Belt Oil Skimmer
• Material: Aluminum, Brass, Iron, Metal, Silver, Stainless Steel
• Style: Mesh
• Color: Grey, Metalic, Silver
• Application: Kitchen Use
• Finishing: Non Polished, Polished
• Feature: Durable, Easy To Clean, Fine Finishing, Heat Resistant, Light Weight, Non Breakable
• Filtration Capacity: 10-15 LPH

• thickness: 0.12mm

Belt oil skimmer Top driver pulley is magnetically charged and is designed such that to eliminate any belt slippage and wear as well maximum oil travel and removal from one side of the belt.Imported Steel Endless belts of thickness 0.12mm thickness are used to pick the oil efficiently.

An endless belt is dipped in coolant tank such that the oil on the top collected. Coolant flows slowly over the belt leaving the oil on the pelt. The belt is rotating to take out oil. The coolant carry over is again transported back the coolant tank. Applications : To take out Un-emulsified oil from coolant Features : • Very compact. Occupies less space. • Auto belt tensioning. • Excellent collection efficiency. • Can be made suitable for viscous oil. • Very smooth & silent operation. • Runs on only one drive. Requires lesser power. • Most economic & cost effective.

To satisfy the ever growing needs of our clients with quality range, we are engaged in offering Oil Skimmer Belts at cost effective prices within the stipulated time frame. Fabricated in compliance with all the industrial norms, these are light in weight. Features: Cost effective Light in weight Premium quality

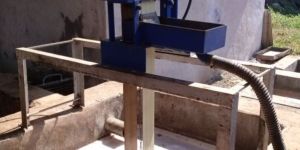

Belt type oil skimmers fitted on stand mechanism to lift the oil up from underground tanks of ETP and other applications and to collect the oil directory into 200 Liters. Drum kept on the earth we use imported oleophelic polyurethane high efficiency belts.

In metal working industry, various water-based emulsions are used as coolant to enhance productivity. This emulsion is a mixture of water and different types of cutting oils in a specific ratio While machining, oil used for lubricating various parts of the machine tool, get mixed with the coolant. This leads to change in the properties of coolant and thereby decreasing its efficiency. The lubricating oil mixed in the coolant keeps floating on the coolant surface and adheres to the coolant tank surface. This generates various types of fungi, which leads to an irritating smell around the coolant tank.To avoid all these problems, Endless belt type oil skimmers are manufactured by Span Filter mist India Pvt. Ltd. These skimmers consists of a geared motor that continuously rotates a Belt made up of special material which allows the oil particles to stick it. These oil particles are then scrapped by a scrapper and collected in a separate oil collecting bin.

In any coolant application scum is generated. If this is not removed it affects the coolant life. A belt skimmer is a very simple product to remove the floating oil. A belt skimmer is mounted on tank tops. The unit consists of two (2) pulleys. Care is taken that the bottom pulley is below fluid surface level. The top pulley is connected to a geared drive. An endless belt of polyurethane material rotates on the pulleys. Bottom pulley has a self-tensioning arrangement to compensate expansion of belt over time. Fluid flows slowly over the belt leaving the floating oil on the surface of the belt.   The belt scrapes through a pair of nylon scarpers near the top pulley. The scraped fluid is collected a tank. The separator tank is specially design with adjustable baffles. This separates the additional water content and diverts it back to the main tank.       Applications  5 HI Rolling Mill  Tandel Rolling Mill  Stainless Steel Rolling  Aluminium Rolling  20 HI Rolling Mill   Cylinder Head Cast Iron Machining  Cylinder Block Cast Iron Machining  Breakliner Cast Iron Machining  Precoating Line  Taper Roller Bearing      Features & Benefits Used for removing un-emulsified oil. Filtration capacity: 5 l/hr. to 20 l/hr. Continuous cleaning operation. Auto belt tensioning. Ease of maintenance. Single drive. Very compact. Ideal for individual machines and large tanks. Standard sized modules are mentioned in attached PDF catalogue. No filters needed. Very low operating cost. No maintenance cost. Auto belt tensioning. Suitable for any liquid (excluding chemicals) Can be made suitable for viscous oil. Robust, compact, and re-locatable. Can be integrated with existing systems without modifications Runs on only one drive. Requires lesser power. Very smooth & silent operation. Occupies less space.

The six primary types of oil skimmers are belt, disk, drum or barrel style, mop, large tube or mini tube, and floating suction oil skimmers. Belt oil skimmers utilize a belt of stainless steel. This belt is lowered into the liquid that needs to be cleaned. The belt then passes through special wiper blades, which remove the oil from both sides of the liquid as it passes through. Disc oil skimmers use a disk that is rotated through the liquid. The oil is wiped off the liquid and placed into a special collection container within the skimmer. Disk oil skimmers are not a good choice for shallow liquids or for places where the liquid level fluctuates, because they are most effective when the entire disk is immersed.

belt oil skimmer, Aluminum Machining Filters, Magnetic Screw Conveyor

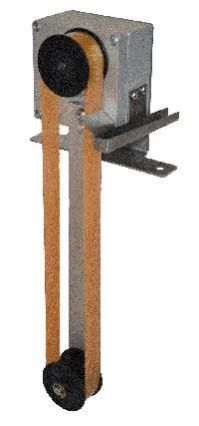

polyurethane belt oil skimmer belt, Oil Skimmer, Water Separator
