Bin Activators Dealers in Pune

Designed to overcome all flow related problems like Bridging, Rat holing of Bulk Solids in the storage vessels like bins, hoppers, silos, depending upon the characteristics of material.   FEATURES Available in wide range to take care of any material stored in any sized and shaped vessel Specially developed fixtures & tooling ensures concentricity within various parts Careful design of Suspension Hangers to give complete resilience to the vibrating dish head. Sturdy design to take care of machine load and material head load High performance and low energy consuming Vessel assembly with bolting or welding option Well-equipped laboratory for optimizing equipment configurations Available in Mild Steel, SS304 & SS316 as Vibration motor even for hazardous application Sealing sleeve in food grade white neoprene with nylon reinforcement Flexible connections at Inlet & Outlet

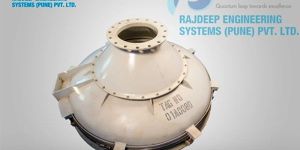

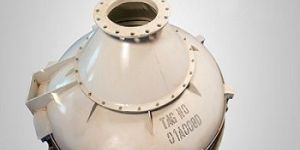

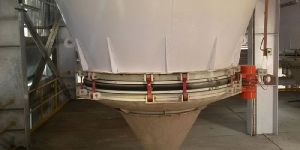

Rajdeep’s Bin activator provides positive, trouble free, continuous discharge from storage. The operation is silent , needs no attention & consumes little power Bin activator consists of a specially profiled discharge head with baffle above and in line with the discharge opening. It is hung from support ring by means of hangers. Bellow type sealing sleeves on upper and lower ensure that there is no spillage of material. One or two electric vibrators fitted to the unit generate vibration makes the material flow normally through the discharge opening of Bin Activator It can be rapidly installed by bolting / welding to silo of any shape round or square It is simple, rugged, and reliable & maintenance free device. Bin activators are available in various sizes from 600 mm to 3600 mm diameter   MOC: Carbon steel SS-304 SS-316 Flexible Sleeve: Food Quality white neoprene, Viton with canvas, Nylon, fibre glass reinforcement External & internal surface can be painted by two coats of rd oxide followed by synthetic enamel paint. Bin Activators are used in various industrial applications to facilitate discharging of powdery or granular materials from silos or hoppers. Applications: Bin Activator can handle all difficult products like:- Soya Flour , All grain flour Whey powder , Milk powder Sodium Bicarbonate Soda Ash Lime Talcum Powder Gypsum Fly ash   Industries we serve : Food & Pharma Agri & agrochemicals Soaps & detergents Steel & foundry Cement & allied Distillery & brewery And many more

• Material: Mild Steel
• Features: High performance and low energy consumption, Flexible connections at Inlet & Outlet, Well-equipped laboratory for optimizing equipment configurations

Bin Activators, Luggage barrow, Carrying trolley, facade system

Bin Activators, high pressure rotary valves, Bulk Solid Handling

RAJDEEP's Bin activators have already proven their worth the world over as most effective silo discharge solution even for most difficult materials.

WAM Bin Activators, Grit Classifier, WAM Electropneumatic Actuator
