BluBoxx Communication Pvt. Ltd. Pune, Maharashtra

PLANET XT-705A Media Converter is equipped with one 10G/5G/2.5G/1G/100BASE-T auto-negotiation port and one 10GBASE-X SFP+ slot. It supports 10Gigabit Ethernet media conversion from copper 10GBASE-T to fiber multi-mode or single-mode, utilizing 10GBASE-SR or 10GBASE-LR SFP+ transceiver installed in the SFP+ slot to extend distances to servers, switches and patch panels. The deployment distance can be extended from 300 meters (multi-mode) to up to 60 kilometers (single-mode).They are designed for use in network environments where the ultra-high bandwidth provided by 10Gigabit Ethernet is required, for example, data center cloud computing, enterprise backbones, campus networks, and carrier infrastructure.   Key Features Physical Port One 10G/5G/2.5G/1G/100BASE-T RJ45 interface with auto MDI/MDI-X function One 10GBASE-X SFP+ slot interface   Layer 2 Features IEEE 802.3u/802.3ab/802.3bz/802.3ae Ethernet standard compliant Supports auto-negotiation and 100Mbps half/full duplex and 1/2.5/5/10Gbps full duplex mode Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex) 16K jumbo frame size support Automatic address learning and address aging    Case and Installation External 5V DC, 2A power supply DIN-rail and wall-mount design Supports 6000 VDC Ethernet ESD protection 100 meters over Cat 6A / Cat7 at 10Gbps 0 to 50 degrees C operating temperature Co-works with PLANET’s 10”/19” Media Converter Chassis (MC-700/MC-1500/MC-1500R/MC-1500R48) Plug and Play installation

Brand Name : Planet

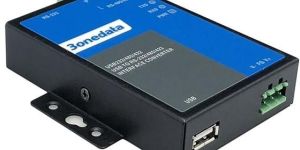

USB232/485/422 is a USB to RS-232/485/422 interface converter, which can achieve bidirectional data conversion between USB interface and RS-232/485/422 serial ports. The product supports 1 USB interface and 1 RS-232/485/422 serial port. RS-485/422 supports serial port self-adaption technology, which can identify RS-485/RS-422 serial port with no need of switch setting. Serial port is equipped with 8kV electrostatic protection and 2kV isolation protection, which can effectively protect the device from damage. It adopts wall mounting to meet the requirements of different application fields.   The product provides matched driver program software; USB interface connected to PC will make up a serial COM port in the computer system automatically. PC host can communicate with RS-232/485/422 serial devices via virtual COM port.   Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in PLC, Industrial Automatic Control, IC Card Toll Collection System, and Data Acquisition Control System, etc.

SW485GI is an industrial-grade interface converter device integrated bidirectional conversion between RS-232 and RS-485/422 and RS-485/422 repeater, which can implement bidirectional data conversion between serial port RS-232 and RS-485/422, or be a repeater of RS-485 and RS-422 transmission. It provides 1 RS-232 serial port and 2 RS-485/422 serial ports. RS-485/422 supports serial port self-adaption technology that can identify RS-485/422 serial port automatically without the need of setting the switch. Serial ports are equipped with 1500W surge protection, 15kV electrostatic protection and 3kV photoelectric isolation protection, which can effectively prevent device from being damaged. The device also adopts wall mounting, which can meet the requirements of different scenes.   Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC and be wildly used in electric power system, industrial automation control, IC card charging system and measuring instrument, etc.

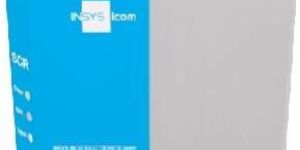

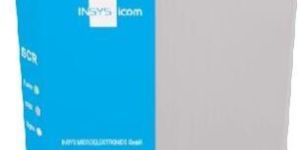

The routers of the SCR series are IoT gateways of the special kind. They provide latest technology in a compact, flexible mountable housing for a very attractive price.   The SCR series is available in LTE and LAN versions, both optionally as I/O variant. Users can connect both, IP-based and serial devices, to this Smart Device locally. This allows to transform elder existing plants in modern IT environments with a retrofit.   The two mounting directions make an SCR suitable for both, a switch cabinet in industrial environments and flat building connection boxes.   Besides the INSYS operating system icom OS, the icom SmartBox is also on board, an integrated Linux environment that allows to execute scripts and programs directly on the router based on so-called containers.   Therefore, an SCR router can not only be used for secure remote maintenance and control, but also for capturing and process- ing application data within the scope of edge computing. This also allows to monitor the conditions and values of connected devices and realise reporting or benchmarking across different plants thanks to plug & play connection to cloud services.

Voltage : 220V

Function : Computer Networking

Power : 1600W

Application : Electric Router

The routers of the SCR series are IoT gateways of the special kind. They provide latest technology in a compact, flexible mountable housing for a very attractive price.   The SCR series is available in LTE and LAN versions, both optionally as I/O variant. Users can connect both, IP-based and serial devices, to this Smart Device locally. This allows to transform elder existing plants in modern IT environments with a retrofit.   The two mounting directions make an SCR suitable for both, a switch cabinet in industrial environments and flat building connection boxes.   Besides the INSYS operating system icom OS, the icom SmartBox is also on board, an integrated Linux environment that allows to execute scripts and programs directly on the router based on so-called containers.   Therefore, an SCR router can not only be used for secure remote maintenance and control, but also for capturing and process- ing application data within the scope of edge computing. This also allows to monitor the conditions and values of connected devices and realise reporting or benchmarking across different plants thanks to plug & play connection to cloud services.

Voltage : 220V

Function : Computer Networking

Power : 1600W

Application : Electric Router

The routers of the SCR series are IoT gateways of the special kind. They provide latest technology in a compact, flexible mountable housing for a very attractive price.   The SCR series is available in LTE and LAN versions, both optionally as I/O variant. Users can connect both, IP-based and serial devices, to this Smart Device locally. This allows to transform elder existing plants in modern IT environments with a retrofit.   The two mounting directions make an SCR suitable for both, a switch cabinet in industrial environments and flat building connection boxes.   Besides the INSYS operating system icom OS, the icom SmartBox is also on board, an integrated Linux environment that allows to execute scripts and programs directly on the router based on so-called containers.   Therefore, an SCR router can not only be used for secure remote maintenance and control, but also for capturing and process- ing application data within the scope of edge computing. This also allows to monitor the conditions and values of connected devices and realise reporting or benchmarking across different plants thanks to plug & play connection to cloud services.

Voltage : 220V

Function : Computer Networking

Power : 1600W

Application : Electric Router

The routers of the SCR series are IoT gateways of the special kind. They provide latest technology in a compact, flexible mountable housing for a very attractive price.   The SCR series is available in LTE and LAN versions, both optionally as I/O variant. Users can connect both, IP-based and serial devices, to this Smart Device locally. This allows to transform elder existing plants in modern IT environments with a retrofit.   The two mounting directions make an SCR suitable for both, a switch cabinet in industrial environments and flat building connection boxes.   Besides the INSYS operating system icom OS, the icom SmartBox is also on board, an integrated Linux environment that allows to execute scripts and programs directly on the router based on so-called containers.   Therefore, an SCR router can not only be used for secure remote maintenance and control, but also for capturing and process- ing application data within the scope of edge computing. This also allows to monitor the conditions and values of connected devices and realise reporting or benchmarking across different plants thanks to plug & play connection to cloud services.

Voltage : 220V

Function : Computer Networking

Application : Electric Router

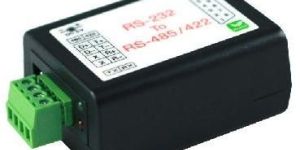

Features : Plug & Play installation Built in 15KV ESD protection for signals RS-422/485 surge protection Built in 100 ohm Termination resistor LED indicator for transmission status   Specifications Serial Interface Port number : 1 Port Type : 1x RS-232 Port (DB9)  to 1x RS-422/485 Port (4-pin Terminal Block) Connector : Male DB9 / 4-pin Terminal Block Speed : 300 bps ~ 230.4 Kbps Parity : None , Odd , Even , Mark , Space Data Bit : 5, 6 , 7 , 8 Stop Bit : 1 , 2 RS-232 : Rx , Tx , GND  (RTS & CTS is shorted, DTR, DSR & DCD are shorted) RS-422 : Rx+ , Rx- , Tx+ , Tx- RS-485 : Data+ , Data- Built–in : RS-422/485 pull high / low Resistor Protection : 422/485 Surge Protection Built in 15KV ESD protection for all signals Termination Resistor built in 100 Ohm Termination resistor switch On/Off Distance : Up to 1250 Meters.   Power Supply Input: DC 5V, 20mA@ 12VDC Mode: DC jack adapter Wrong polarity input protection   LED  Rx, Tx   Regulatory Approval FCC Part15 Class A CE EN55022 Class A, EN55024 RoHS Compliance   Environment Temperature : Operating: 0°C ~ 65°C (32°F ~ 149°F) Storage: -20°C ~ 70°C (-4°F ~ 158°F) Humidity : Operating: 10% ~ 95% non-condensing Storage: 5% ~ 95% non-condensing   Dimension & Weight Dimension 55 x 40 x 25 mm Weight 35g   Warranty 1 Year

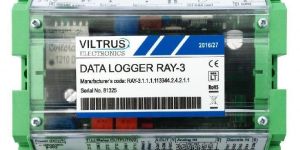

RAY-3 data logger is dedicated for measuring of analog (voltage, current, resistance) parameters, for tracking the status of discrete inputs, formation of discrete output signals, archiving and sending data to local users/server over RS232/RS485 or USB and to remote users/server over Ethernet or/and GSM/GPRS/EDGE or UMTS/HSPA+ using Modbus TCP/IP protocol.   Technical Features : Possibility to choose interfaces: M-Bus, RS232, RS485, USB, GSM/GPRS, Ethernet, Analog IN/OUT, Discrete IN/OUT Supported protocols: Modbus RTU, Modbus TCP/IP, M-Bus, IP, ICMP, UDP, TCP, DHCP, PPP, ARP, SNTP, IEC60870-5-104:200 DynDNS, FTP server, FTP client, DNS client and transparent Independent data log with real time stamp (Real Time Clock) Alarm limits tracing of analog and discrete inputs, logging in event archive, warning about alarms over GSM/GPRS/EDGE or UMTS/HSPA+, Ethernet and by sending SMS Reading data from M-bus meters (heat, water, gas, electricity...) via M-Bus interface Alarms status of analog and discrete channels fixing Data from local device reading over RS232/RS485 (using Modbus RTU protocol) or USB  Remote communication over Ethernet or GPRS/GSM / 3G Up to 6 analog inputs (voltage, current, resistance, PT100) Up to 2 analog outputs Up to 4 discrete inputs (contact / impulse / alarm) Up to 2 discrete relay outputs Galvanically isolated interfaces and power supply Additional special transparent protocol data transfer Internal battery ensure at least 1 hour operation, after power fail   http://www.viltrus.com/data-logger-ray-3/

Brand Name : Viltrus

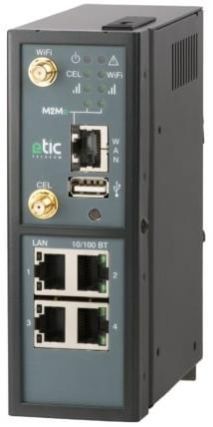

Machine Access Box ( WAN: 3G+ WW/4G + 1 Eth + 1 Wi-Fi, LAN: 4 Eth)   IP20 metal casing with DIN rail fixing system WAN connection: Ethernet or 3G+ World Wide/4G or Wi-Fi LAN connection: 4 Ethernet ports M2Me solution on board SMS and E-Mail (option)Compatible option Collect&Alert Compatible with option Collect & Alert Compatible with option EticDISPLAY

Brand Name : Etic

Machine Access Box ( WAN : 3G+WW/4G, LAN : 1 Eth ) IP31 metal casing with DIN rail fixing system WAN connection: cellular 3G+ World Wide/4G LAN connection: 1 Ethernet port M2Me solution on board SMS and E-Mail (option)Compatible option Collect&Alert Compatible with option Collect & Alert Compatible with option EticDISPLAY

Brand Name : Etic

LI30-20B24PR2 - DIN rail power supply; Output 24Vdc at 1.5A;  36 Watt ,metal case.

Feature : Easy To Install, Proper Working

Condition : New

Warrenty : 1year

PLANET POE-173 Ultra Power over Ethernet Injector provides a maximum of up to 60-watt power and high speed Ethernet data connection anywhere in your network infrastructure. PLANET Ultra Power over Ethernet solution contains two brand-new products: POE-173: 60-watt Ultra Power over Ethernet Injector POE-171S: 12V / 19V / 24V DC Power over Ethernet Splitter   Quick and Easy Gigabit Ultra Power PoE Network Deployment The POE-173 is a Single-Port, Ultra Power over Ethernet Injector with a maximum of up to 60 watts of power output over Ethernet cables. It is designed specifically to meet the demand for growing higher power required network equipment such as: PTZ Speed Dome AIO(All-in-One) touch PC Remote digital signage display Other network devices that need higher power to work normally.   The POE-173 delivers the Ethernet digital data with DC 50V power over the twisted pair cables as a 60-watt Power over Ethernet Injector, and the connected Ultra Power over Ethernet splitter – the POE-171S – will separate the digital data and the power into three optional outputs (12V / 19V / 24V DC) with distance up to 100 meters.   Features :  Interface 2 x RJ-45 interfaces - 1-Port 10/100/1000Mbps Data + Power output- 1-Port 10/100/1000Mbps Data input 1 x AC 100-240V input power socket   Power over Ethernet Ultra Power over Ethernet PSE Up to 60 watts of power on 4-pairs UTP Backward compatible with IEEE 802.3at/af PD device Auto-detection of PoE IEEE 802.3at/af equipment and devices from being damaged by incorrect installation Remote power feeding up to 100m   Hardware All-in-one compact size design Internal power supply LED indicators for Power LED and Active LED (PoE ready / In-use)

Brand Name : Planet

PoE with High Power, Security, Stability and Easy Installation Features As the applications of Power over Ethernet have expanded to home users from the IT industry. PLANET has developed a new Single-Port PoE+ Injector which meets the requirements of both the IT industry and home users for high wattage output and easy installation, respectively.   The POE-163 is a wall-mountable, single-port Gigabit 802.3at PoE+ injector with internal power supply in compact housing. Carrying both Ethernet data and power simultaneously, the POE-163 helps users to utilize just one Ethernet cable to easily install and deploy IP camera, wireless AP or VoIP phone networking in environments where power outlet is hard to find.   Interface 2-port RJ45 interfaces - 1-port Data + Power output - 1-port Data input 1 AC 100-240V input power socket   Power over Ethernet 1-port Gigabit High Power over Ethernet Mid-span PSE IEEE 802.3at Power over Ethernet Plus compliant Backward compatible with IEEE 802.3af Power over Ethernet Supports PoE Power up to 30 watts for PoE port Up to 1 IEEE 802.3at device powered Provides DC 50-54V power over RJ45 Ethernet cable to device with Ethernet port Auto-detection of PoE IEEE 802.3at/af equipment and devices that could be damaged by incorrect installation Remote power feeding up to 100m   Hardware All-in-one design with internal power supply Compact-size plastic case LED indicators for Power LED and Active LED (PoE ready-in-use)   https://www.planet.com.tw/en/product/poe-163

Brand Name : Etic

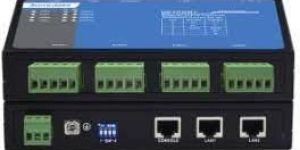

NP314T series are the serial device server that can make serial device be equipped with networking capability instantly and centrally manage the scattered serial devices and hosts via network. This series include 2 types of products and provide 4 RS-485/422 or 3IN1 serial port to 2 100M Ethernet copper port. Thereinto, RS-485/422 supports electromagnetic isolation of serial port. It adopts wall/desktop mounting to meet the requirements of different application scenes.   Serial device server supports multiple network protocols, such as TCP, UDP, SNMP, TELNET, ARP, ICMP, HTTP, DNS and DHCP protocol. It also possesses complete management functions, including Access Control, Rapid Configuration, Online Upgrading and so on. Each serial port supports 4 TCP or UDP session connections, and it also supports RealCom, TCP Server, TCP Client, UDP Server, UDP Client, Pair Master, Pair Slave, UDP Rang, UDP Multicast operating modes and TELNET, WEB access modes. Furthermore, supplied management configuration tool based on Windows platform can guide the user to manage and configure the device, achieving immediate networking of serial device via simple settings. It can provide users with good experience with friendly design of network management system interface, simple and convenient operation.   DIP switch can achieve restore factory defaults of the device. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in PLC control and management, Building Automation System, Health Care Automation System, measuring instrument and environmental forces monitoring system.   Features and Benefits : Support 2 10/100Base-T(X) self-adaptive Ethernet interfaces, which provide double IP and MAC addresses to meet the requirements of network management or backup Support 300bps-115200bps line speed and non-blocking communication Support RealCom, TCP Server, TCP Client, UDP Server, UDP Client, Pair Master, Pair Slave, UDP Rang, UDP Multicast and other operating modes Support across gateway and routing communication Support multiple hosts polling mode, which allows multiple hosts to access the same serial port Support delimiter matching communication, achieving various demands for serial port packaging Support FIFO, compatible with various old type terminal devices Support IP address and MAC address filtering, which can easily achieve accurate access control Support classification of user management to realize humanized permission management Support serial port status and parameters monitoring, ensuring the communication status be clear at a glance Support RTS/CTS, DTR/DSR and XON/XOFF flow control Support SNMP network management Compatible with various virtual serial port management software Support virtual serial port drive access mode and automatic connection recovery after network interruption Flexible serial port data framing setting, which can satisfy user’s various demands for data packets segmentation Support standard TCP/IP SOCKET application access TCP supports multi-connection, which allows maximum 4 users to monitor or manage the serial device simultaneously UDP supports single machine or multi-machine communication, which allows multiple users to monitor or manage the serial device simultaneously Support Windows configuration tool, TELNET, WEB and other configuration forms

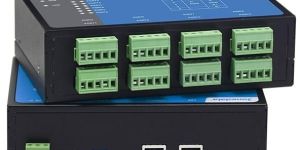

NP308T series are the serial device server that can make serial device be equipped with networking capability instantly and centrally manage the scattered serial devices and hosts via network. This series include 3 types of products and provide 8 RS-232, RS-485/422 or 3IN1 serial port to 1 100M Ethernet copper port. Thereinto, RS-485/422 supports electromagnetic isolation of serial port. It adopts wall/desktop mounting to meet the requirements of different application scenes.   Serial device server supports multiple network protocols, such as TCP, UDP, TELNET, ARP, ICMP, HTTP, DNS and DHCP protocol. It also possesses complete management functions, including Access Control, Rapid Configuration, Online Upgrading and so on. Each serial port supports 4 TCP or UDP session connections, and it also supports RealCom, TCP Server, TCP Client, UDP Server, UDP Client, Pair Master, Pair Slave, UDP Rang, UDP Multicast operating modes and TELNET, WEB access modes. Furthermore, supplied management configuration tool based on Windows platform can guide the user to manage and configure the device, achieving immediate networking of serial device via simple settings. It can provide users with good experience with friendly design of network management system interface, simple and convenient operation.   DIP switch or RST button can achieve restore factory defaults of the device. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in PLC control and management, Building Automation System, Health Care Automation System, measuring instrument and environmental forces monitoring system.   Features and Benefits : Support 10/100Base-T(X) self-adaptive Ethernet interface Support 300bps-115200bps line speed and non-blocking communication Support RealCom, TCP Server, TCP Client, UDP Server, UDP Client, Pair Master, Pair Slave, UDP Rang, UDP Multicast and other operating modes Support across gateway and routing communication Support multiple hosts polling mode, which allows multiple hosts to access the same serial port Support delimiter matching communication, achieving various demands for serial port packaging Support FIFO, compatible with various old type terminal devices Support IP address and MAC address filtering, which can easily achieve accurate access control Support classification of user management to realize humanized permission management Support serial port status and parameters monitoring, ensuring the communication status be clear at a glance Support RTS/CTS, DTR/DSR and XON/XOFF flow control Compatible with various virtual serial port management software Support virtual serial port drive access mode and automatic connection recovery after network interruption Flexible serial port data framing setting, which can satisfy user’s various demands for data packets segmentation Support standard TCP/IP SOCKET application access TCP supports multi-connection, which allows maximum 4 users to monitor or manage the serial device simultaneously UDP supports single machine or multi-machine communication, which allows multiple users to monitor or manage the serial device simultaneously Support Windows configuration tool, TELNET, WEB and other configuration forms

NP308T series are the serial device server that can make serial device be equipped with networking capability instantly and centrally manage the scattered serial devices and hosts via network. This series include 3 types of products and provide 8 RS-232, RS-485/422 or 3IN1 serial port to 1 100M Ethernet copper port. Thereinto, RS-485/422 supports electromagnetic isolation of serial port. It adopts wall/desktop mounting to meet the requirements of different application scenes.   Serial device server supports multiple network protocols, such as TCP, UDP, TELNET, ARP, ICMP, HTTP, DNS and DHCP protocol. It also possesses complete management functions, including Access Control, Rapid Configuration, Online Upgrading and so on. Each serial port supports 4 TCP or UDP session connections, and it also supports RealCom, TCP Server, TCP Client, UDP Server, UDP Client, Pair Master, Pair Slave, UDP Rang, UDP Multicast operating modes and TELNET, WEB access modes. Furthermore, supplied management configuration tool based on Windows platform can guide the user to manage and configure the device, achieving immediate networking of serial device via simple settings. It can provide users with good experience with friendly design of network management system interface, simple and convenient operation.   DIP switch or RST button can achieve restore factory defaults of the device. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in PLC control and management, Building Automation System, Health Care Automation System, measuring instrument and environmental forces monitoring system.   Features and Benefits : Support 10/100Base-T(X) self-adaptive Ethernet interface Support 300bps-115200bps line speed and non-blocking communication Support RealCom, TCP Server, TCP Client, UDP Server, UDP Client, Pair Master, Pair Slave, UDP Rang, UDP Multicast and other operating modes Support across gateway and routing communication Support multiple hosts polling mode, which allows multiple hosts to access the same serial port Support delimiter matching communication, achieving various demands for serial port packaging Support FIFO, compatible with various old type terminal devices Support IP address and MAC address filtering, which can easily achieve accurate access control Support classification of user management to realize humanized permission management Support serial port status and parameters monitoring, ensuring the communication status be clear at a glance Support RTS/CTS, DTR/DSR and XON/XOFF flow control Compatible with various virtual serial port management software Support virtual serial port drive access mode and automatic connection recovery after network interruption Flexible serial port data framing setting, which can satisfy user’s various demands for data packets segmentation Support standard TCP/IP SOCKET application access TCP supports multi-connection, which allows maximum 4 users to monitor or manage the serial device simultaneously UDP supports single machine or multi-machine communication, which allows multiple users to monitor or manage the serial device simultaneously Support Windows configuration tool, TELNET, WEB and other configuration forms

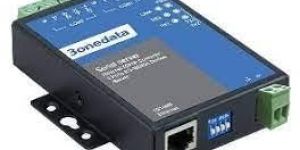

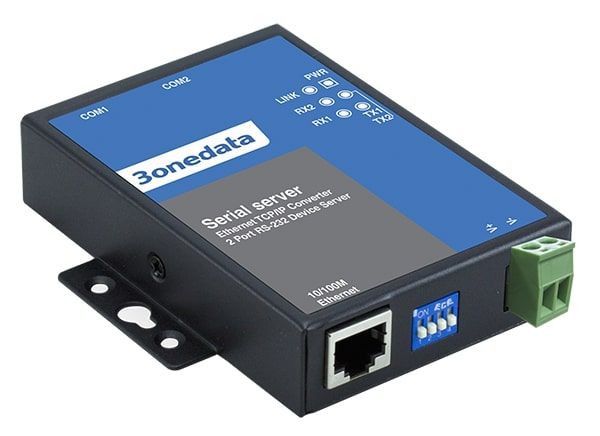

NP302T series are the serial device server that can make serial device be equipped with networking capability instantly and centrally manage the scattered serial devices and hosts via network. This series include 2 types of products and provide 2 isolated RS-232 or RS-485/422 to 1 100M Ethernet copper port. It adopts wall mounting to meet the requirements of different application scenes.   Serial device server supports multiple network protocols, such as TCP, UDP, TELNET, ARP, ICMP, HTTP, DNS and DHCP protocol. It also possesses complete management functions, including Access Control, Rapid Configuration, Online Upgrading and so on. Each serial port supports 4 TCP or UDP session connections, and it also supports RealCom, TCP Server, TCP Client, UDP Server, UDP Client, Pair Master, Pair Slave, UDP Rang, UDP Multicast operating modes and TELNET, WEB access modes. Furthermore, supplied management configuration tool based on Windows platform can guide the user to manage and configure the device, achieving immediate networking of serial device via simple settings. It can provide users with good experience with friendly design of network management system interface, simple and convenient operation.   DIP switch can achieve restore factory defaults of the device. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in PLC control and management, Building Automation System, Health Care Automation System, measuring instrument and environmental forces monitoring system.   Features and Benefits : Support 10/100Base-T(X) self-adaptive Ethernet interface Support 300bps-115200bps line speed and non-blocking communication Support RealCom, TCP Server, TCP Client, UDP Server, UDP Client, Pair Master, Pair Slave, UDP Rang, UDP Multicast and other operating modes Support across gateway and routing communication Support multiple hosts polling mode, which allows multiple hosts to access the same serial port Support delimiter matching communication, achieving various demands for serial port packaging Support FIFO, compatible with various old type terminal devices Support IP address and MAC address filtering, which can easily achieve accurate access control Support classification of user management to realize humanized permission management Support serial port status and parameters monitoring, ensuring the communication status be clear at a glance Support RTS/CTS, DTR/DSR and XON/XOFF flow control Compatible with various virtual serial port management software Support virtual serial port drive access mode and automatic connection recovery after network interruption Flexible serial port data framing setting, which can satisfy user’s various demands for data packets segmentation Support standard TCP/IP SOCKET application access TCP supports multi-connection, which allows maximum 4 users to monitor or manage the serial device simultaneously UDP supports single machine or multi-machine communication, which allows multiple users to monitor or manage the serial device simultaneously Support Windows configuration tool, TELNET, WEB and other configuration forms

NP302T series are the serial device server that can make serial device be equipped with networking capability instantly and centrally manage the scattered serial devices and hosts via network. This series include 2 types of products and provide 2 isolated RS-232 or RS-485/422 to 1 100M Ethernet copper port. It adopts wall mounting to meet the requirements of different application scenes.   Serial device server supports multiple network protocols, such as TCP, UDP, TELNET, ARP, ICMP, HTTP, DNS and DHCP protocol. It also possesses complete management functions, including Access Control, Rapid Configuration, Online Upgrading and so on. Each serial port supports 4 TCP or UDP session connections, and it also supports RealCom, TCP Server, TCP Client, UDP Server, UDP Client, Pair Master, Pair Slave, UDP Rang, UDP Multicast operating modes and TELNET, WEB access modes. Furthermore, supplied management configuration tool based on Windows platform can guide the user to manage and configure the device, achieving immediate networking of serial device via simple settings. It can provide users with good experience with friendly design of network management system interface, simple and convenient operation.   DIP switch can achieve restore factory defaults of the device. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in PLC control and management, Building Automation System, Health Care Automation System, measuring instrument and environmental forces monitoring system.   Features and Benefits : Support 10/100Base-T(X) self-adaptive Ethernet interface Support 300bps-115200bps line speed and non-blocking communication Support RealCom, TCP Server, TCP Client, UDP Server, UDP Client, Pair Master, Pair Slave, UDP Rang, UDP Multicast and other operating modes Support across gateway and routing communication Support multiple hosts polling mode, which allows multiple hosts to access the same serial port Support delimiter matching communication, achieving various demands for serial port packaging Support FIFO, compatible with various old type terminal devices Support IP address and MAC address filtering, which can easily achieve accurate access control Support classification of user management to realize humanized permission management Support serial port status and parameters monitoring, ensuring the communication status be clear at a glance Support RTS/CTS, DTR/DSR and XON/XOFF flow control Compatible with various virtual serial port management software Support virtual serial port drive access mode and automatic connection recovery after network interruption Flexible serial port data framing setting, which can satisfy user’s various demands for data packets segmentation Support standard TCP/IP SOCKET application access TCP supports multi-connection, which allows maximum 4 users to monitor or manage the serial device simultaneously UDP supports single machine or multi-machine communication, which allows multiple users to monitor or manage the serial device simultaneously Support Windows configuration tool, TELNET, WEB and other configuration forms

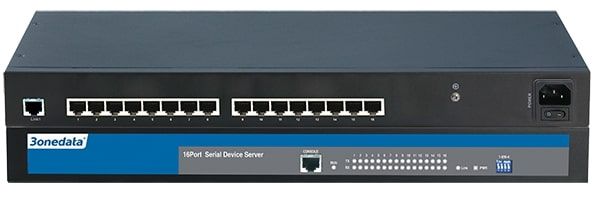

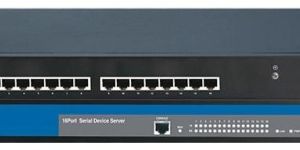

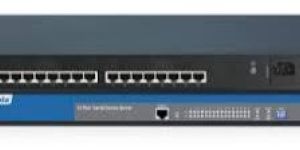

NP3016T series are the serial device server that can make serial device be equipped with networking capability instantly and centrally manage the scattered serial devices and hosts via network. This series include 4 types of products; provide 16 RS-232/485/422/3IN1 serial port to 1 100M Ethernet copper port and support single or dual Ethernet port. It adopts rack mounting to meet the requirements of different application scenes.   Serial device server supports multiple network protocols, such as TCP, UDP, SNMP, TELNET, ARP, ICMP, HTTP, DNS and DHCP protocol. It also possesses complete management functions, including Access Control, Rapid Configuration, Online Upgrading and so on. Each serial port supports 4 TCP or UDP session connections, and it also supports RealCom, TCP Server, TCP Client, UDP Server, UDP Client, Pair Master, Pair Slave, UDP Rang, UDP Multicast operating modes and TELNET, WEB access modes. Furthermore, supplied management configuration tool based on Windows platform can guide the user to manage and configure the device, achieving immediate networking of serial device via simple settings. It can provide users with good experience with friendly design of network management system interface, simple and convenient operation.   DIP switch can achieve restore factory defaults of the device. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in PLC control and management, Building Automation System, Health Care Automation System, measuring instrument and environmental forces monitoring system.   Features and Benefits : Support 10/100Base-T(X) self-adaptive Ethernet interfaces Support 300bps-115200bps line speed and non-blocking communication Support RealCom, TCP Server, TCP Client, UDP Server, UDP Client, Pair Master, Pair Slave, UDP Rang, UDP Multicast and other operating modes Support across gateway and routing communication Support multiple hosts polling mode, which allows multiple hosts to access the same serial port Support delimiter matching communication, achieving various demands for serial port packaging Support FIFO, compatible with various old type terminal devices Support IP address and MAC address filtering, which can easily achieve accurate access control Support classification of user management to realize humanized permission management Support serial port status and parameters monitoring, ensuring the communication status be clear at a glance Support RTS/CTS, DTR/DSR and XON/XOFF flow control Support SNMP network management Compatible with various virtual serial port management software Support virtual serial port drive access mode and automatic connection recovery after network interruption Flexible serial port data framing setting, which can satisfy user’s various demands for data packets segmentation Support standard TCP/IP SOCKET application access TCP supports multi-connection, which allows maximum 4 users to monitor or manage the serial device simultaneously UDP supports single machine or multi-machine communication, which allows multiple users to monitor or manage the serial device simultaneously Support Windows configuration tool, TELNET, WEB and other configuration forms

Brand Name : 3Onedata

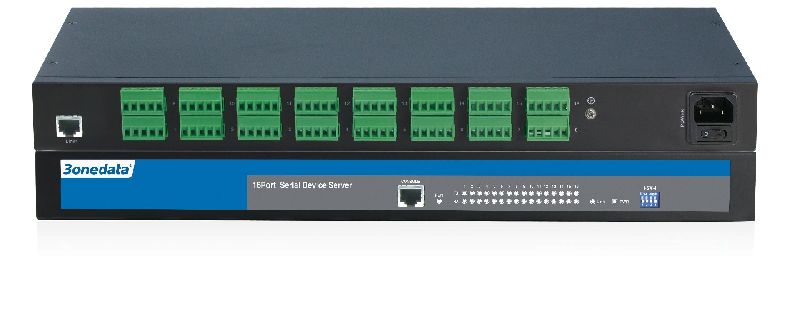

NP3016T series are the serial device server that can make serial device be equipped with networking capability instantly and centrally manage the scattered serial devices and hosts via network. This series include 4 types of products; provide 16 RS-232/485/422/3IN1 serial port to 1 100M Ethernet copper port and support single or dual Ethernet port. It adopts rack mounting to meet the requirements of different application scenes.   Serial device server supports multiple network protocols, such as TCP, UDP, SNMP, TELNET, ARP, ICMP, HTTP, DNS and DHCP protocol. It also possesses complete management functions, including Access Control, Rapid Configuration, Online Upgrading and so on. Each serial port supports 4 TCP or UDP session connections, and it also supports RealCom, TCP Server, TCP Client, UDP Server, UDP Client, Pair Master, Pair Slave, UDP Rang, UDP Multicast operating modes and TELNET, WEB access modes. Furthermore, supplied management configuration tool based on Windows platform can guide the user to manage and configure the device, achieving immediate networking of serial device via simple settings. It can provide users with good experience with friendly design of network management system interface, simple and convenient operation.   DIP switch can achieve restore factory defaults of the device. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in PLC control and management, Building Automation System, Health Care Automation System, measuring instrument and environmental forces monitoring system.   Features and Benefits : Support 10/100Base-T(X) self-adaptive Ethernet interfaces Support 300bps-115200bps line speed and non-blocking communication Support RealCom, TCP Server, TCP Client, UDP Server, UDP Client, Pair Master, Pair Slave, UDP Rang, UDP Multicast and other operating modes Support across gateway and routing communication Support multiple hosts polling mode, which allows multiple hosts to access the same serial port Support delimiter matching communication, achieving various demands for serial port packaging Support FIFO, compatible with various old type terminal devices Support IP address and MAC address filtering, which can easily achieve accurate access control Support classification of user management to realize humanized permission management Support serial port status and parameters monitoring, ensuring the communication status be clear at a glance Support RTS/CTS, DTR/DSR and XON/XOFF flow control Support SNMP network management Compatible with various virtual serial port management software Support virtual serial port drive access mode and automatic connection recovery after network interruption Flexible serial port data framing setting, which can satisfy user’s various demands for data packets segmentation Support standard TCP/IP SOCKET application access TCP supports multi-connection, which allows maximum 4 users to monitor or manage the serial device simultaneously UDP supports single machine or multi-machine communication, which allows multiple users to monitor or manage the serial device simultaneously Support Windows configuration tool, TELNET, WEB and other configuration forms

Brand Name : 3Onedata

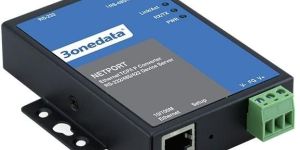

NP301 is the serial device server that can make serial device be equipped with networking capability instantly and centrally manage the scattered serial devices and hosts via network. The product supports 1 RS-232/RS-422 /RS-485 to 1 100M Ethernet copper port. It adopts wall mounting to meet the requirements of different application scenes.   Serial device server supports multiple network protocols, such as TCP, UDP, ARP, ICMP, HTTP, DNS and DHCP protocol. It also possesses complete management functions, including Access Control, Rapid Configuration, Online Upgrading and so on. Each serial port supports 4 TCP or UDP session connections, and it also supports TCP Server, TCP Client, TCP Auto, UDP, Advanced TCP Server, Advanced UDP operating modes and AT, WEB access modes. Furthermore, supplied management configuration tool based on Windows platform can guide the user to manage and configure the device, achieving immediate networking of serial device via simple settings. It can provide users with good experience with friendly design of network management system interface, simple and convenient operation.   Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in PLC control and management, Building Automation System, Health Care Automation System, measuring instrument and environmental forces monitoring system.   Features and Benefits : Adopt 32 bits ARM processor Support 10/100Base-T(X) self-adaptive Ethernet interface Support AUTO MDI/MDIX, which can be connected via crossover cable and straight-through cable Support 300bps-115200bps line speed and non-blocking communication Support low power consumption mode and high performance mode Support TCP Server, TCP Client, TCP Auto, UDP, Advanced TCP Server and Advanced UDP operating mode Support AT command, which is convenient for the secondary development of users Support DNS, which can achieve communication via domain name Support across gateway and routing communication Support virtual serial port drive access mode and automatic connection recovery after network interruption Flexible serial port data framing setting, which can satisfy user’s various demands for data packets segmentation Support standard TCP/IP SOCKET application access TCP supports multi-connection, which allows maximum 4 users to monitor or manage the serial device simultaneously UDP supports single machine or multi-machine communication, which allows multiple users to monitor or manage the serial device simultaneously Support Windows configuration tool, serial port, WEB and other configuration forms Support local and remote system firmware upgrading

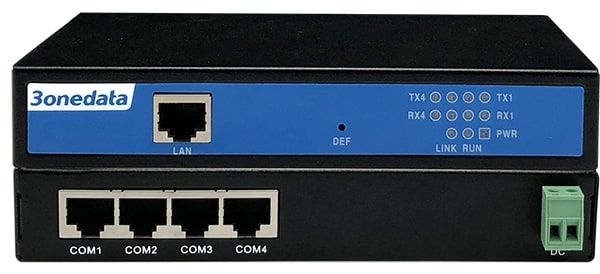

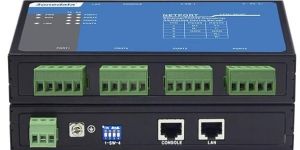

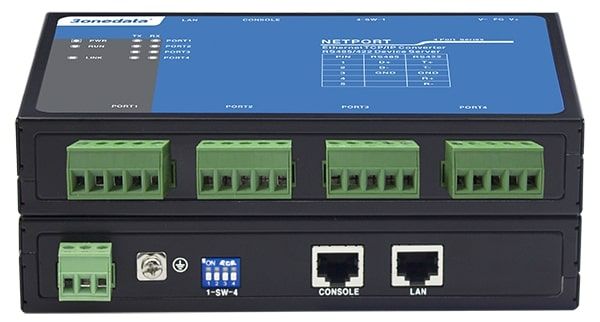

NP304T series are the serial device servers that can make serial device be equipped with networking capability instantly and centrally manage the scattered serial devices and hosts via network. This series include 3 types of products and provide 4 RS-232, RS-485/422 or 3IN1 serial port to 1 100M Ethernet copper port. Thereinto, RS-485/422 supports electromagnetic isolation of serial port. It adopts wall/desktop mounting to meet the requirements of different application scenes. Serial device server supports multiple network protocols, such as TCP, UDP, TELNET, ARP, ICMP, HTTP, DNS and DHCP protocol. It also possesses complete management functions, including Access Control, Rapid Configuration, Online Upgrading and so on. Each serial port supports 4 TCP or UDP session connections, and it also supports RealCom, TCP Server, TCP Client, UDP Server, UDP Client, Pair Master, Pair Slave, UDP Rang, UDP Multicast operating modes and TELNET, WEB access modes. Furthermore, supplied management configuration tool based on Windows platform can guide the user to manage and configure the device, achieving immediate networking of serial device via simple settings. It can provide users with good experience with friendly design of network management system interface, simple and convenient operation. DIP switch can achieve restore factory defaults of the device. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in PLC control and management, Building Automation System, Health Care Automation System, measuring instrument and environmental forces monitoring system.   Features and Benefits : Support 10/100Base-T(X) self-adaptive Ethernet interface Support 300bps-115200bps line speed and non-blocking communication Support RealCom, TCP Server, TCP Client, UDP Server, UDP Client, Pair Master, Pair Slave, UDP Rang, UDP Multicast and other operating modes Support across gateway and routing communication Support multiple hosts polling mode, which allows multiple hosts to access the same serial port Support delimiter matching communication, achieving various demands for serial port packaging Support FIFO, compatible with various old type terminal devices Support IP address and MAC address filtering, which can easily achieve accurate access control Support classification of user management to realize humanized permission management Support serial port status and parameters monitoring, ensuring the communication status be clear at a glance Support RTS/CTS, DTR/DSR and XON/XOFF flow control Compatible with various virtual serial port management software Support virtual serial port drive access mode and automatic connection recovery after network interruption Flexible serial port data framing setting, which can satisfy user’s various demands for data packets segmentation Support standard TCP/IP SOCKET application access TCP supports multi-connection, which allows maximum 4 users to monitor or manage the serial device simultaneously UDP supports single machine or multi-machine communication, which allows multiple users to monitor or manage the serial device simultaneously Support Windows configuration tool, TELNET, WEB and other configuration forms

Brand Name : 3Onedata
