Bright Stars Electronics Karve Road, Pune, Maharashtra

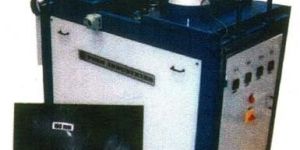

Capacity :50MM To 160 MM,Capacity : 50MM To 160 MM,Type :Coupler, Tee, Wye, Bend, Reducer etc, Standard :IS 14735, Pneumatic :10 Bar Pressure. Machine Operates on Solid State PLC Control With MMI Water Cooled Die and Mandel Ensures high Production rate. Four ovens Temperature Controlled by PID

Programmable Settings for Foil Width and Resistivity Range. 16 x 2 Alphanumeric LCD with Backlit. Illuminated background for foil. Easy to use for Semi-skilled Unskilled users. Functional on 230V, 50Hz AC

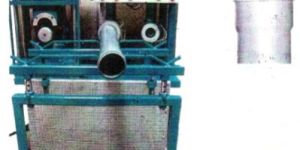

Machine Operates on Solid State PLC Control With MMI Water Cooled Die Ensures high Production rate. Both ovens Temperature Controlled by PID

Capacity : 77MM To 160 MM OD Pipe

Power : 3 kw Maximum, Single Phase 230 v AC

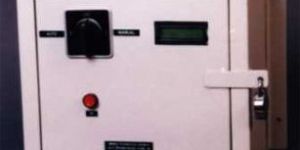

This is unit is specifically developed for AUTOMISATION OF FACTORY SIREN to avoid manual errors, and aid the security personnel. The unit operates without manual intervention, most accurately, consistently, and most of all most RELIABLY. The unit has quartz crystal controlled Real Time Clock with battery back up (back up of TenYars), operating in 24 hours fashion. Eight-bit micro controller is used to control all the operations. The time setting is achieved with the operation of various keys provided on the equipment. On Time of the SIREN is also settable. The present time (HR / MIN along with Day Month and Year (DD / MM / YY) is displayed on the 16X2 Alphanumeric Bakelite LCD. One change over Potential Free contact of 6amps at 230 Volts AC suitable to operate the siren is provided. We can also provide the SIZE 0 contator if required for enhanced power requirements. MANUAL mode is also provided to operate the SIREN in case of EMERGANCY. Only authorized person accomplishes clock setting. The unit operates on 230 V AC Mains, and will be kept under lock and key and with only the Authorized person can change the settings. (With pre defined password)   Salient Features :   • Real Time RTC with BB RAMS.• Settings under lock and key.• 24 hour setting.• Clock can be set externally.• Heavy duty current rating for Siren operation.• 230 +/- 10% Volts AC operation.• Most compact and reliable.• Wall Mounting Unit.

Application : Laboratory

Application : Industrial

Frequency : 50 Hz

The Unit measures the Surface Resistivity of the foil, used in the manufacturer of Power Factor Improvement Capacitors. 16x2, alphanumeric backlit LCD is used to display various parameters like resistivity and the setting of the width of foil. The Setting of Width, High and Low Resistivity limits of the foil is achieved by keeping the unit in program mode, and use of Increment / Decrement switches. These values are stored in the non-volatile RAM. Incorporation of three LED, and a Buzzer, makes the unit suitable for the use with Semiskilled/Unskilled operators, as, GO / NOGO fashion.. The illuminated bottom helps in locating any problems in the foil. The unit works on 230 V AC mains.   Key Features :   • Programmable Settings for Foil Width and Resistivity Range.• 16 x 2 Alphanumeric LCD with Backlit.• Illuminated background for foil.• Easy to use for Semi-skilled / Unskilled users. • Functional on 230V, 50Hz AC

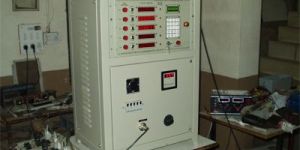

We design, develop, manufacture, special purpose units and systems for various components. The system is Micro Controller based unit for high Reliability and in built Real Time Clock (RTC) with all the storage features. Computer connectivity is an added feature of the system, where in all the computer features like storing as a file, print, etc are being used. Apart from the computer connectivity the machine interfaces with the Dot-Matrix printer, to have the print out from our machine.The above machine is made for testing of Fans. All the parameters like Operator, Specimen No or Tag Number, Part Type and any other can be entered through the keyboard, and gets printed.Similarly we have also delivered ON-LINE testing of Washing Machine Motors, checking for various parameters like Megger, High Voltage, and operating parameters like Current, Voltage, and Wattage etc. If any of the parameters is out of the set limits to be pre-programmed, an alarm is generated stopping the conveyor, for operator to do the needful, otherwise the belt continuous, improving the production still further.The system can be generally used for any parameters like, Fan belt Motors, Wiper Motors, Defrost Heaters, Overload protectors, Contactors, Switches, Pressure Gauges, PVC and Other type of Pipes and Fittings, Springs, Relays, etc. The machine can be modified to any other Device under Test.

Machine Operates on Solid State PLC Control With MMI Water Cooled Die and Mandel Ensures high Production rate. Four ovens Temperature Controlled by PID

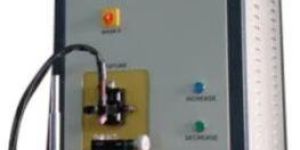

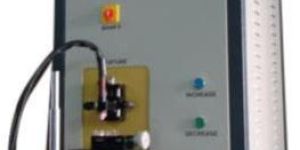

Hot Junction Welding Machine is most suitable to weld the Hot Junction of a SIMPLEX / DUPLEX / TRIPLEX ungrounded and grounded Mineral Insulated (MI) thermocouples of various types, and sizes ranging from 1 mm to 6 mm. Oxidization is totally avoided as the welding process takes just few milliseconds, and with inert Gas Atmosphere. The use of ARGON inert gas for pre weld and post weld times does not allow the junction to oxidize at all. The welding is done stored energy, rater than the current, forming a weld as a beautiful bright bulb, and is immune to power supply variations and changes.   A Capacitor bank is charged to the required voltage, monitored digitally, depending on the Energy requirements, according to the size and type of thermocouple. Two more additional capacitor banks can be added for thick wires. Actuation of the START switch purges Argon for predefined time, (pre-welding), the ARC strikes, discharging Heavy current through the joint fusing the same, forming a bulb, thus completing the welding. The Argon continues to flow for predefined time (post weld time) cooling the thermocouple, avoiding oxidization. Same method is adopted for Duplex / Triplex Thermocouples, with fine adjustment of torch. The thermocouple is prepared and adjusted properly, in a special fixture. Welding torch and can be moved in both X and Y direction with very fine Lead screw type of precise arrangement, for accurate positioning, for welding Simplex, Duplex, Triplex thermocouples. The UP / DOWN movement with locking facility allows the torch movement vertically. All these functions make the welding of DUPLEX / TRIPLEX Thermocouples without removal of the same. A Clip, is used to connect the other end of the thermocouple, forms the second electrode. A gap of about 0.5-to1.0 mm is adjusted between the junction and torch to avoid any contamination of the welding electrode, during welding. Welding can not take place, with indication, if the torch touches the junction. The provision is made to adopt Microscope for inspection. The unit works on 230 / 110 V AC mains.

This is a state of art equipment using latest Technology. A microcontroller with special software is utilized for this application. Full Scale Level, Full Scale Count etc are programmable, at site as per the requirements, through RS 232 communication. The required parameters are displayed digitally to suit the site conditions, along with 4 to 20 mA current output for further processing and remote monitoring. RS 485 communication option is also available with suitable protocol.

The actual welding takes only a few Milliseconds (Tentatively 5 to 8 mSec) so only the very welding zone is heated up while neighboring zones remain practically cold. There is no distortion, tarnishing, discoloring or annealing of metal around the welding zone. Welding time is so short that sufficient melting heat is produced in the welding zone before heat dissipation starts, unavoidable with longer welding times. This also means that the total amount of heat applied is small as possible as – hardly higher than necessary for the weld itself. The welded parts stay practically at room temperature.

Weight : 15 Kg

Driven Type : Electric

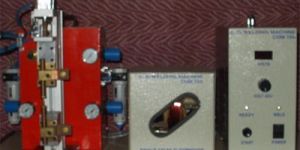

Impulse Welding is an ultra modern way of metal joining, which replaces many other techniques such as riveting, soldering or conventional a welding. The actual welding takes only a few Milliseconds (Tentatively 5 to 8 mSec) so only the very welding zone is heated up while neighboring zones remain practically cold. There is no distortion, tarnishing, discoloring or annealing of metal around the welding zone. Welding time is so short that sufficient melting heat is produced in the welding zone before heat dissipation starts, unavoidable with longer welding times. This also means that the total amount of heat applied is small as possible as – hardly higher than necessary for the weld itself. The welded parts stay practically at room temperature. The high currents from Impulse Welders make this method applicable even for metals of high electrical and thermal conductivity such as copper, silver, gold and even platinum. With Impulse Welding machines, electrode cooling is not required even at very high production rates. Electronically stabilized charging with proper feedback keeps the voltage across the capacitor absolutely constant and gives constant welding energy even at power line variations giving highly reproducible welding results. In the Impulse Welding the required welding energy is stored in a CAPACITOR BANK, being charged during the intervals between welds. As the charging of the capacitors takes place at quite slow rate, there is a great saving on power supply requirements as compared to conventional ac welding machines. There is no sudden heavy burden on the mains supply creating problems to other machines and environment. Production speeds are limited only by the time required for job feeding mechanism, which is sufficient time for recharging the required capacitor banks, because of negligible short welding times. Welding performance is dependent on Welding Energy and Applied Pressure. With Capacitor Discharge welding machine, the Energy is maintained constant and the pneumatic Weld Head maintains the required pressure. A special pneumatic Weld Head is provided for welding very fine wires. This special unit applies very low pressure for fine wire welding, which is adjusted for different type of jobs, depending upon the size, type conductivity and type of the material to be welded. A Simple Manual Weld Held can also be provided for non critical applications.Potential Free contact is provided for inert gas purging (both post & past time) operation. Separate Manual operation is possible for trials and testing.   ADVANTAGES :  • Welding without oxidization, distortion annealing or discoloration• Welding close to heat sensitive parts.• Good welding results with metals of high electrical and thermal    conductivity.• Welding of parts of different cross sections and materials.• Very high productivity• High repetitive rate possible• Long Electrode life, with no cooling requirements• Welding of both Ferrous and nonferrous metals.• Welding not affected by Power Line fluctuations• Welded parts can be of less tolerance and may not need cleaning.• Power supply connection just 5 Amps     Welding of Fine Wires is another task. The Welding Energy as well as pressure during weld is very critical for welding. We have developed a special pneumatic fixture with adjustable differential pressure, so as to take care of the above requirements. With this fixture and the machine we can weld 40-44 SWG Pt to PtPtRh15% or PtPtRh13% wires, without the requirement of any skilled personnel. The production cycle can be about 6 seconds each.

Material : PVC/SWR
