Butt Welders Dealers in Pune

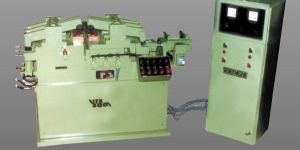

We offer hydraulic flash butt welder range : 50 to 250 kva introduction flash butt welding is a modern technique of joining mild steel, alloy steel and other dissimilar metals in various tubular or solid sections. Weld quality obtained is mechanically or metallurgically similar to the parent metal. Because of shorter weld times the process is suited for higher production than other conventional methods. No additional items such as rods or gas etc. Are required thus it is highly economical. Other features include (a) little or no end preparation (b) high accuracy of welding joints (c) high consistency of weld parameters. Applications welding of hss to en9 tools, tubular parts, bicycle and moped wheel rims, starter ring gears, window sections, table knives, construction steel bars upto 30 dia., bottom rings of cylinders, continuous coil strips. salient features fully hydraulically operated. Forced air cooled transformer having core of high grade silicon steel confirms to is 4804, part ii, precision control on initial die opening. Flash off length, time, length and final die opening. Precision time delay circuit for upset current. Safety and sequential interlinks provided for prolonged trouble free tooling operation. Pre-heat and post heat cycles available as required.

• Type: Hydraulically operated clamping and flashing.
• Performance: Most versatile machine for high production.
• Advantage: Welds of uniform high quality are produced.
• Strength: Extremely economical joints produced.
• Benefit: No joint preparation required.
• Features: Flashing speed is fully adjustable.
• Speciality: Thyristor control. & Choice of plc.

Application: Welding of Tubular parts, Bicycle & moped wheel RIMS, Constructional steel up to 32mm dia., Strip coils in continuous strip,Processing Lines, Chain links, Gear blanks, Window & Door sections is made easy with our seam welders

• Country of Origin: India
• Type: Flash Butt Welders
• Application: Industrial Use
• Color: Green
• Condition: New
• Automatic Grade: Semi Automatic
• Brand Name: KEJETHERM

We are engaged in offering blade butt welding machine that is available with simple, easy to use and adjustable features. Manufactured using quality tested components; these machines are capable of providing uniform weld of high strength. We offer these machines at highly affordable prices, to meet the budgetary constraints of our clients. technical specifications: capacity blade 25 mm to 40 mm width x 1. 5 mm thick electricity 440 v-2 phase -15 kva size 660 mm length x 660 mm width x 375 mm height weight 50 kgs accessories stand.

• MODEL: Supply Voltage at 1 ph. 50 Hz. , Continuous Rating of transformer
• UNITS: V . KVA
• TFH-50: 415 , 35
• TFH-75: 415 , 55

Flash Butt Welding is a modern technique of joining mild steel, alloy steel and other dissimilar metals in various tubular or solid sections. Weld quality obtained is mechanically or metallurgically similar to the parent metal. Because of shorter weld times the process is suited for higher production than other conventional methods. No additional items such as rods or gas etc. are required thus it is highly economical. Other features include (a) little or no end preparation (b) High accuracy of welding joints (c) High consistency of weld parameters.

Features Direct acting lever arm clamps with cylinders placed away from flashing zone. Low friction, accurately aligned movement of Platen. Hydraulic power pack for positive clamping and upsetting under high pressure. Controlled flashing through flow control.

Leveraging on our advanced manufacturing facilities, we are able to offer a wide range of butt welding machines, which is designed in conformation with the set industry norms. Being precision engineered and optimum in performance, these machines can easily weld parts with different thickness. Technical specifications: capacity: blade 25 mm to 40 mm width x 1. 5 mm thick Electricity: 440 v-2 phase -15 kva Size: 660 mm length x 660 mm width x 375 mm height Weight: 50 kgs Accessories: stand

• Voltage: 415 V
• Country of Origin: Made in India
• Automation Grade: Semi-Automatic
• Frequency: 50 Hz
• Total Power: 30 Kva
• Phase: Single

• Voltage: 415 V
• Country of Origin: Made in India
• Automation Grade: Semi-Automatic
• Frequency: 50 Hz
• Total Power: 30 Kva
• Phase: Single
