Cartoning Machine Dealers in Pune

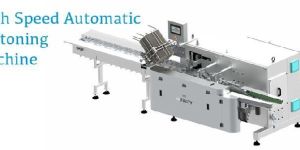

The automatic cartoning machine manufactured by Infinity picks a single piece from a stack of folded cartons. Further, it fills it with the product or multiple products in a horizontal direction through the open end and seals the flaps of the carton using an adhesive or glue. The maximum speed that can be achieved is around 120 cartons/minute with the maximum width of carton being 175 mm and maximum length of 100 mm. Although the different products are inserted into the carton in a manual way, the product is packed into a carton either using a pneumatic pusher or a mechanical pusher for several applications. Our automatic cartooning machines are widely used in different industries such as medicine, cosmetics, food packaging, confectionery, and are tailored to suit the requirement of our clients. Infinity is a highly reputed manufacturer of advanced auto cartoner machine, horizontal cartoning machine, automated box packaging systems and carton box packaging machines.

Specification: Model PVG-VCV60Q PVG-VCV80Q Speed Cartoon 30-100 per min 30-90 per min Main motor 1.2kva 1.2 kva Vacuum Pump 0.4 kva 0.4 kva Weight 1400kg 1500kg Dimensions: Model PVG-VCV60Q PVG-VCV80Q Width 1665mm 1665mm Length 3825mm 4330mm Height 1600mm 1600mm Loading Area A 1000mm 1100mm B 1000mm 1250mm

Maximum Box Size 200 mm X 200 mm Box Loading Manually After Three Folds Glueing System Hot Melt Or Cold Glue System Operation Mechanical, Pneumatic, PLC Controlled

Cartoning Machine, Blister Packing Machine, integrated line machine
