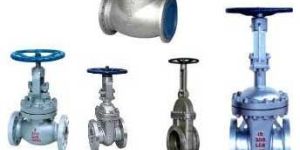

Cast Gate Valve Dealers in Pune

We provide Cast Steel Gate Valves with or without IBR certifications. Cast Steel Valves are available in both bolted as well as pressure seal design. Cast Steel Valves are available with extra deep stuffing box that ensures fluid tightness and long packing life. Cast Steel Valves have bonnet joint with Spiral Wound Gasket because of which they are highly demanded by the clients. We also offer Satellite Wedge/Disc, Seat Ring and Back Seat on special request of the customers. Attributes : Precision machined forgingsHigh performanceLeakage proofControlled clearance between stem, gland and bonnet bushingLow emissionsSuitable for higher temperature up to 425oC Variety : Cast Steel GateGlobeNRVIBRNon IBR Technical Specifications : Sizes available :From ½” to 16” ( 15mm to 400 mm) Operations :Hand wheelGear OperatedElectric ActuatorMaterial used :Carbon SteelStainless SteelAlloy SteelRating (Class) :15030060015002500End Connections :Flanged EndsButt Weld Ends

• Material: Cast Steel
• Certification: API
• Color: IPL Std
• Number Of Way: 2way
• Brand Name: IPC
• Size: 2" TO 24 "
• Application: Gas Fitting, Oil Fitting, Water Fitting
• Power: Hand Wheel / Gear wheel Operated
• Pressure: High, Low, Medium
• Feature: Durable
• Port Size: 2" to 24"
• Technic: Hand wheel/Gear operated
• Temperature of Media: ( -29 to 480 )Deg Centigrade
• Pressure Rating: #150 Through #2500 (Higher Pressure classes available on request)
• Sizes: 2" to 24"
• MFG Standards: BS 1883 / ASME B16.34
• Standard Connections: Flanged / Buttweld
• Temperature: -20 to +120 Deg C
