Ceramic Band Heaters
Get Price Quote

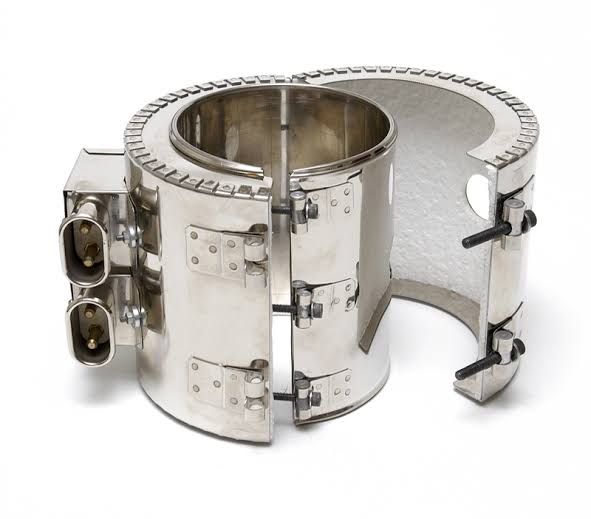

Ceramic Band Heaters are manufactured by using special ceramic insulation material ' Steatite ' and fabricated with stainless steel sheet. The heating coils is made of high quality Nichrome wires.The spot welded clamp bars, Allen screw clamping provides a uniform clamping.Ceramic Band Heaters are used for heating of moulds,dies,nozzles and barrels on all types of plastic processing machinery.Heaters having high watt densities provide high operating temperature, resulting into high productivity.Maximum sheet temperature up to 800 degree Celsius.Maximum Watt density up to 50 Watts per Square Inches for the blower air cooling, the perforated ceramic heaters with cooling fins or without cooling fins can be manufactured as per customers specification. Ceramic Band Heater consist of a helically wound resistance coil made from Nichrome 80/20 wire, evenly stretched and precisely strung through a steatie insulating bricks forming a flexible heating mat. The Ceramic heating mat along with 6 mm thick ceramic fiber insulation is assembled in S. S 304 sheet with serrate edges providing maximum flexibility for easy installation. APPLICATIONS These heaters are sutable to apply heat by conduction to cylinderical surfaces-Injection Moulding M/cs, Plastic & Rubber Extrudgers, Dies, Drum Heating, Blow Moulding M/cs.
Ceramic Bobbin Heater
Get Price Quote
Best Deals from Ceramic Heaters
Ceramic Band Heaters
Get Price Quote

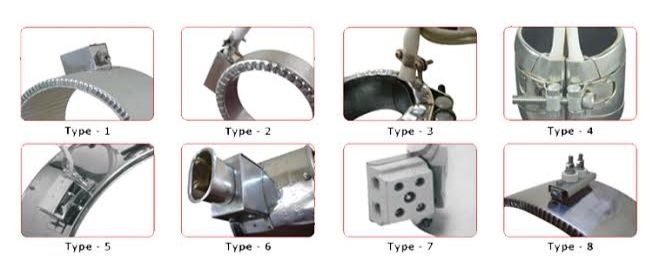

Ceramic Band Heaters :- These heaters are medium-to-high temperature heaters that have 1200ºF as a maximum working temperature. These durable heaters have in-built ceramic fibre jackets that make them energy efficient. Ceramic band heaters are available with different terminal styles, are fully flexible, and can accommodate holes and cut-outs. Usage Injection molding machine Plastic extruders Blow- molding machine Container, pipe or tank heating Other process application Feature Reduce power consumption Conserve heat High degree of flexibility Uniform heat distribution Various termination styles
Ceramic Band Heater
500 - 5,000 Per Bag
5 Bag (MOQ)
Ceramic Bobbin Heater
Get Price Quote
Ceramic Bobbin Heaters
Get Price Quote
10 Piece(s) (MOQ)
Ceramic Bobbin elements are fitted in a metal tube for applications in liquids, ovens (in this case a robust construction is essential) They find a variety of applications in Industry..
Ceramic Infrared Heaters
500 Per Piece
Ceramic Bobbin Heaters
Get Price Quote
Ceramic bobbin elements are fitted in a metal tube for applications in liquids, ovens (in this case a robust construction is essential) they find a variety of applications in industry. Can be manufactured in various diameters, lengths, kw ratings, and operating voltages.
Ceramic Bobbin Heaters
Get Price Quote
Ceramic bobbin heat Another type of heating element is the ceramic heating element. Various types are shown As below, As a rule this type of elements is fitted in a metal tube for applications In liquids, ovens (in this case a robust construction is essential), gas-and air heaters. Construction example • Threaded termination • Terminal former - A. Terminal former with terminations • Center former with channel - B. Center former with channel • Resistant wire - C. End former • End former Ceramic bobbin heater in Silica glass & SS container for corrosive liquid Construction : Manufactured out of imported fused Silica/Glass tube with replaceable refractory type heaters, with a heat resistant rubber cap and a connecting connecting cable. In SS container we use SS 304, SS 316, SS316L and 99.9% pure lead coating on SS tube for highly corrosive liquid. Application : Highest running temperature in all acids except hydro fluoric and phosphoric acids. Also used for heating in Ferric chloride etching baths, anodizing bright dip baths etc. Note :- please see the sheathing material guide for corrosive liquid.
Ceramic Band Heaters
Get Price Quote
Specifications-: We offer high quality range of industrial ceramic heaters that is manufactured using special ceramic material with high thermal conductivity. These heaters are manufactured using M.S., brass and S.S. sheathing. Minimum Diameter: 50mm up to as per requirement Minimum Length: 30mm up to as per requirement Maximum Watt: 25W per Sq. inch

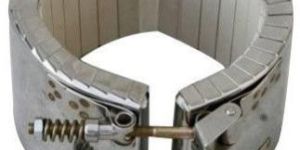

Electric Ceramic Band Heater
Get Price Quote
Ceramic Band Heater
Get Price Quote
Ceramic Band Heater, Tubular Heating Elements, Furnaces
Ceramic Band Heater
Get Price Quote
Ceramic Band Heater, Cartridge Heater, Industrial Heaters
Ceramic Band Heaters
Get Price Quote
Ceramic Band Heaters, Support Insulator Heater, Industrial Air Heater
