Chain Elevators Dealers in Pune

• Feature: Precisely designed and low maintenance .
• Use: they are utilized for lifting materials

• Type: Bucket Elevators
• Shape: Rectangular, Round, Square
• Application: Constructional, Industrial
• Automatic Grade: Manual, Semi Automatic
• Feature: Best Quality, High Loadiing Capacity, Rust Proof Body
• Warranty: 2years

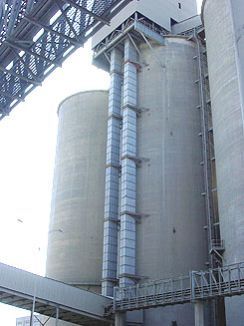

We offer an optimum quality of Chain Bucket Elevator available in single strand and double strand construction. Our Chain Bucket Elevator is vertically up conveyor equipped with buckets fitted on chain. Our Chain Bucket Elevator moves in vertical closed path between duplex sprockets. These elevators are classified into two types namely Centrifugal Discharge or Continuous Discharge. These elevators are mostly used for heavy duty, large capacity, big height, nonabrasive material and large lumps. Our range of Chain Bucket Elevator includes duty, medium duty, heavy duty or super capacity type in capacity wise. Attributes Optimum quality Availability : single strand and double strand construction Types : Centrifugal Discharge and Continuous Discharge Range : duty, medium duty, heavy duty or super capacity type in capacity wise

• width: 200 mm to 1250 mm
• length: 155 meters

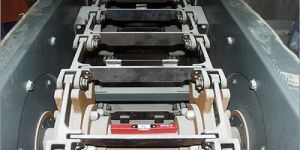

DEMECH Chain conveyors are custom designed to suit the bulk material to be handled. For given operating parameters like speed, type of flights etc. For a chain conveyor, it is the material properties which decide whether the conveying will be with 'En-masse' effect or 'Drag' effect. DEMECH's vast experience in this field ensures that the conveyor is designed to operate at optimum efficiency by proper selection of speed, type of chain & flight etc.The conveyor profiles are generally as per the following diagrams but some additional variants can be manufactured & supplied to suit site conditions.The conveyors are designed with single or multiple numbers of inlet and discharge openings provided at the required locations along the conveyor path. The conveyors are manufactured according to application using Carbon Steel, Stainless Steel or other such material with various types of lining.DEMECH chains are made of alloy steel drop forgings. They are machined and heat treated to achieve desired strength and hard outer surface to withstand wear due to abrasion.Sprockets suitable for the forged chains are also manufactured by DEMECH in Carbon Steel and Alloy Carbon Steel which are case hardened for longer life.

Chain bucket elevator mahindra – tsubaki “nb” series features   provided with tsubaki, japan make double strand bushed roller chain – made of special alloy steel,which has high resistance to shock loads resulting in low sprocket wear. •  models from nbh (s) 300 to nbh (s) 015 •  capacity range up to 2000 tph •  chain speed up to 90 m/min (1.5 m/s)    supplied more than 800 elevators.   three types viz. Nbs, nbh and nbc – depending upon the conveying capacity,height and the characteristics of the material handled.   casings are precision pressed – having in-built stiffeners.   provided with fabricated steel buckets. Each bucket is bolted to the chaindirectly – on either side – through a specially designed link plate.   chains with different material of construction available to suit various applications   drive sprocket can be offered in segmented rim construction – for facilitating replacement.   tail casing is provided with a pair of high chrome bush bearings – fully enclosed within the casing – eliminating the possibility of dust leakage to the outside atmosphere.   provided with a self-adjusting internal gravity take-up arrangement.   provided with safety switches such as zero speed switch, boot level indicator and electronic shock relay.

Chain Bucket Elevator, chain cross section, chain link elevator

Chain Bucket Elevator, Belt Bucket Elevator, FC Flow Conveyor
