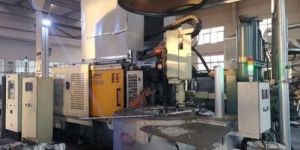

Chamber Die Casting Machine Dealers in Pune

• Power: Electric
• Brand Name: HMT
• Automation Grade: Automatic
• Material: Mild Steel
• Usage/Application: Cold Chamber Aluminium Pressure Die Casting
• Locking Force: 660 Ton
• Machine Area: 7.2x2.1 m
• Machine Weight: 20 ton
• Injection Force adjustable (with intensifier): 65 ton
• Hydraulic Ejection Force: 34 ton
• Die Moulding Plates (hxv): 1130x1190 mm
• Space Between Tie Bars (hxv): 720x780 mm
• Tie Bar Diameter: 150 mm
• Maximum Die Height: 880 mm
• Minimum Die Height: 350 mm
• Die Opening Stroke: 630 mm
• Injection Plunger Stroke: 600 mm
• Ejector Stroke Adjustable: 150 mm
• Free Cycle Time: 8 Second
• Motor Capacity: 45 kW
• Capacity of Oil Tank: 100 Litre
• Plunger Diameter: 50 mm
• Shot Capacity for Aluminium: 2.1 kg
• Max. Injection Pressure: 3310 kg/cm2
• Nominal casting area at above Injection Pressure: 200 cm2
