CNC Machine Dealers in Wadgaon B K, Pune

Salient Features Table Locking Facility with Stepper Motor. Slide Motion through Recirculating Ball Screw. Manually Operated MT2 Taper Collet Holder. Circular Interpolation in X, Y Planes. Program Entry through Keyboard, Via PC. Single Block, Auto, Jog Modes for Execution. Canned Cycle for Drilling, Peck Drilling, Slot Milling. Axis Limit Switches for Safety Interlocks. Improper / Faulty Tool Operation Sequence is Detected. Emergency Stop is Provided. Depth of Cut 0.5 mm Only.

• Table: size 200 mm X 600 mm no. width of T slot 3/12/28mm, Max safe load on table 100 Kg.
• Traverses: X Axis 400 mm, Y Axis 150 mm, Z Axis 300 mm, Distance from Table to Spindle face 200 mm
• Feed Rates: Cutting Feed Rates 01 – 4000 mm/min, Rapid feed Rates X,Y,Z Axis 2/2/2m/min
• Spindle Rates: Speed 80 – 4000 rpm, Max Power 3 HP.
• Taper: ISO 30, Single Tool, Manual Tool Changing System
• Accuracy: Positioning ±0.05, Repeatability ± 0.05
• Control System: PC Base Mach3 CNC Controller. Or .. Siemens 808D CNC Controller.
• Others: Total Connected Load 5 KVA, Power Supply 415V, 50 Hz, 3 Phase
• Details: Defines G, M,T,F,I,S,J,K codes all necessaries & consumables standard, 4 set of high speed Input (50m sec), 1 set of Analog Output Signal Master / Slave Mode, USB Disk Compatible Interface with PC through RS232, Graphical Simulation.
• User: College Trainer / Tool room Machine Shop, Diamaker.

• Weight: 65 Kg
• Voltage: 220 V
• Automation Grade: Fully Automatic
• Spindle Speed: 26000 rpm
• X-Y-Z Axis Working Area: 1400 x 2600 x 200 mm

Wood carving cnc carving machine.

• Automatic Grade: Automation
• Brand Name: S m automation
• Material: Casting ms
• Color: VIP blue
• Condition: New
• Rated Power: 3-5kw
• Automatic Grade: Automatic
• Application: Wood Cutting
• Certification: ISO 9001:2008
• Voltage: 220V, 380V
• Type: Wood Carving Machine
• Weight: 100-1000kg
• After-Sales Service Provided: AMC
• Country of Origin: India

Up gradation : We up-grade old, absolute NC- CNC systems with New Generation CNC Controls, Drives & Motors of Fanuc (0i Series) / Siemens (802, 810 & 840 Series). We have Up-graded more than 125 different variety of CNC machine tools across India. Can take up and carry out the activity anywhere in the world. Re-conditioning : We do undertake complete Mechanical Reconditioning of various CNC machine tools, where in we commit OEM Machine Tool Geometrical accuracies and performance after Re-conditioning. We reconditioned more than 40 machine tools, prefer to lift the machine and carry out this activity at our works in Pune. Types & Brands of Machines Up-graded and Re-conditioned : CNC Lathe, Twin Spindles, Turn Mill Centers, VTL, Milling, Grinding, VMC, HMC, Horizontal Borer, Jig Boring, Gear Hobber & Shavers, etc. Brands Like SIP, Makino, Deckel, Ikegai, Yazda, Mazak, Toyoda, Takisawa, MoriSeiki, Oerlikon, Mitsubishi, Comau, Pratt & Whittney, Huller Hille, Heller, Manford, Colchester, Grazino, Duplostandard, MCM, MaxMuller, Cincinnati, Weiler, Matsuura, Schiess, Hurth, Heid, Hardinge, Juaristi, Praga, Cooper, HMT, BFW etc.

-Work piece resting surface is maintained within +/-0.01 mm-Quick clamping for High Productivity.-Since work piece is lifted from machine base, full depth operations such as pocketing, drilling ,slotting are easily possible without damaging machine table.-Can be used on fixtures, milling machines CNC milling etc.Applications :-Suitable for jobs requiring low to medium clamping force.

• X Axis: 100 mm
• Z Axis: 250 mm

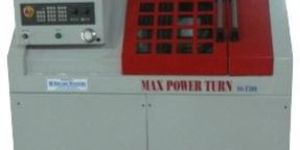

Swing over Bed = 200 mmSwing Over Cross-Slide =  80 mmDistance between Centre = 300 mmSpindle Motor = 1HP / 2 HPTurret = 8 Station Programmable with 4  Internal & 4 External ToolsController = PC based with windows based software for Simulation and Machine ExecutionMachine = With FMS compatibility, Flood Coolant System, Automatic Lubrication system. Also Pneumatic Chuck & Door facility and with built in Servo Stabilizer.

• Brand Name: Vinpak
• Material: Stainless Steel
• Machine Type: Automatic
• Power Consumption: 2.5 kva
• Minimum Order Quantity: 1 Unit

3d simulation ,letest os platform windows based suitable for training institute iit,nit,engineering colleges and polytechnic college.

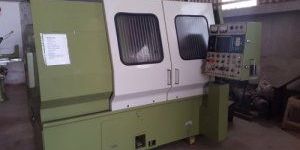

Dudhane Machineries (India) Pvt.Ltd. - Our company is counted amongst the foremost exporters, wholesalers and suppliers of cnc lathes machine in India.

• Automatic Grade: Automatic
• Layout: Horizontal
• Brand/Make: NOVA

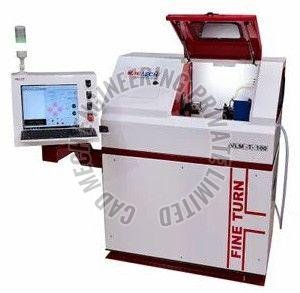

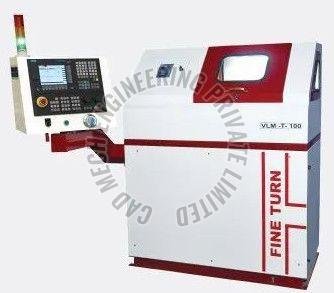

cnc production cum trainer lathe, educational trainers

I) we import various types of cnc machines & trade them after refurbishing ii) we manufacture the precision components on cnc machines0.

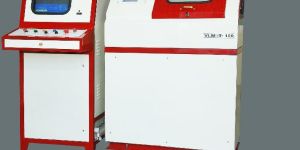

CNC Lathe Trainer Machine with Industrial Controller, cnc lathe trainer

cnc cutting machine, Cnc Machinery

Cnc Drilling Machine, Pcb Drilling Machine, Pcb Depaneling Machine

CNC Machining, SA 105, Fittings, Pressure Vessels, Heat Exchangers, SA 182

CNC Press Machine, Gantry Robots, Spring Testing Machine, Assembly Press

EDM Machine, die-set piller bush, aluminum ball cage, brass ball cage

Portable CNC Profile Cutting Machine, Gantry / Goliath Crane, Scissor Lift

TIG Welding Machine, MIG welding machine, Submerged Arc Welding Machine

edm machinery, cnc wirecut machinery, edm drill machinery
