CNC Milling Trainer Machine Dealers in Wadgaon B K, Pune

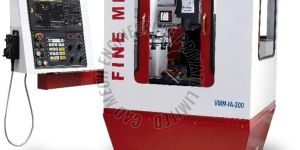

CNC Mill Trainers

Get Price Quote

Sinewave Engineering Pvt. Ltd. is one of the leading manufacturers of CNC Mill Trainers and having more than 500 Installations Pan India with satisfied Clients.   Specification :   Brand: Sinewave Engineering Pvt. Ltd.     Features   • Rugged Machine with Ground Bed.• 12 Station Programmable ATC.• Industrial Motion Controller.• Latest Technological Platform for Software.• Interactive CNC Part Programming Software.• 3D Material Removal Simulation.• STK Import / Export Facility.• Innovative live View on Screen• Customizable Tool Library• Customizable STK Design.• MPG (Manual Pulse Generator) .• FMS & CIM Compatibility.

cnc trainer milling machine

Get Price Quote

• Table: size 200 mm X 600 mm no. width of T slot 3/12/28mm, Max safe load on table 100 Kg.
• Traverses: X Axis 400 mm, Y Axis 150 mm, Z Axis 300 mm, Distance from Table to Spindle face 200 mm
• Feed Rates: Cutting Feed Rates 01 – 4000 mm/min, Rapid feed Rates X,Y,Z Axis 2/2/2m/min
• Spindle Rates: Speed 80 – 4000 rpm, Max Power 3 HP.
• Taper: ISO 30, Single Tool, Manual Tool Changing System
• Accuracy: Positioning ±0.05, Repeatability ± 0.05
• Control System: PC Base Mach3 CNC Controller. Or .. Siemens 808D CNC Controller.
• Others: Total Connected Load 5 KVA, Power Supply 415V, 50 Hz, 3 Phase
• Details: Defines G, M,T,F,I,S,J,K codes all necessaries & consumables standard, 4 set of high speed Input (50m sec), 1 set of Analog Output Signal Master / Slave Mode, USB Disk Compatible Interface with PC through RS232, Graphical Simulation.
• User: College Trainer / Tool room Machine Shop, Diamaker.

cnc Max Power Mill trainer

Get Price Quote

Controller = Siemens 808D Turning Travel : X Axis = 300 mm Y Axis = 175 mm Z Axis = 175 mm Spindle Motor = 2 HP Tool Changer = 6 / 8 Station Programmable ATC Machine = With FMS compatibility, Flood Coolant System, Automatic Lubrication system. Also with optional Servo Stabilizer.

CNC Mill Trainer

Get Price Quote

• X Axis: 200 mm
• Y Axis: 150 mm
• Z Axis: 175 mm
• Spindle Motor: 0.5 HP
• Tool Changer: 6 Station Programmable ATC ( Optional)
• Controller: PC based with windows based software for Simulation and Machine Execution
• Machine: With FMS compatibility, Automatic Lubrication system (Optional)

cnc mill cum production trainer

Get Price Quote

cnc mill cum production trainer, educational trainers
