Conductivity Sensor Dealers in Pune

MICROSET series Micro-CD-112 is Conductivity sensor designed for fast, easy and trouble free start up. These are ideal for measuring the concentration of dissolved solids in water. They are provided with an accurate pre-determined factory calibration constant.Rugged design and corrosion resistant material keep electrode spacing and surface area constant so cell constant remain stable for long period. Durability of material and high resistance to corrosion ensures the long life and require low maintenance.   Features : • Available with 10/1/0.1/0.01 Cell constants• Temperature Compensation through PT 100 sensor• System Accuracy 2% F.S.• Measure Conductivity and Total Dissolved Solids in water• Flow through assembly in SS 316

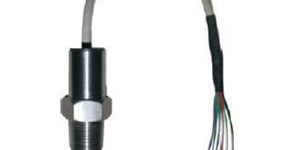

Conductivity Sensors / Electrodes MS CD 03   Specification Body : SS 316 MOC of Electrode : Platinum / Glass Cell Constant : 0.1 / 1.0 Operating Temperature : 100°C Mac Operating Pressure : 5 Bar Temp. Compensation : Pt-100 ( Optional) Process Connection : ½” & ¾” BSP Male Cable : 5 Meters

• Brand Name: Aster
• Model Number: Conductivity Sensors
• Place of Origin: Pune

In our extensive range of products, we are manufacturing, supplying and exporting conductivity sensor. The offered products are processed using superior quality raw material. Moreover, the products are highly demanded in various engineering industries. Further, these are available in various patterns and known for their reliable performance optimum quality, and durability. available range of conductivity sensor with following cell-constants: k = 1.0 (conductivity measured upto 10000 âµscm) k = 0.1 (conductivity measured upto 1000 âµscm) k = 0.01 (conductivity measured upto 19.99 âµscm) technical specifications: moc - ss 316 abs with 34" tee end connections - 12" 34" bspm tee - 12" 34" equal tee with bspf threading cell constant - k = 0.1 (other values optional) cable - 2 core shielded 3mtr. Length (higher length optional) max. Operating pressure - 5 kg cm2 operating temperature - 60â°c also available in other mocs for higher temperature. What is the cell constant? the cell constant k is equal to the area normal to the current flow in centimeters squared divided by the length in centimeters between the electrodes. For solutions with low conductivity the electrodes can be placed closer together or made smaller so that the cell constant is less than one. The converse also applies in high conductivity solutions; the electrodes are placed farther apart or made larger. Different cell constant are used as range multipliers. Conductivity is calculated from the conductance measured by the sensor using a scale factor or cell constant that reflects the ratio of the length and cross-sectional area of the sampled water volume in which the electrical current actually flows.

• Std. Polvoro fittina:: 6.9 bar (100 psi) @ 100°C
• Dot. 316 SS fittina:: 13.8 bar (200 psi) @ 120°C
• Sanitarv Connection:: 6.9 bar (100 Psi) @ 120°C
• Cable Lenath:: 3 meter (std.)
• Sensor weicht:: 600 gm (anorox.)

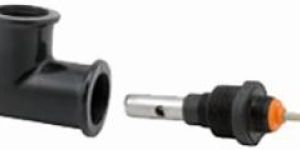

VATS Conductivity/Resistivity sensors are designed to provide versatile installation and accurate sensing across a very broad dynamic range. Coupled with VATS meters a range with ±2% of reading accuracy is achieved without the need for troublesome sensor platinization. Standard wiring allows connection without costly "patch cords."Features:• Flow-through design eliminate bubble entrapment or sediment build-up • Controlled surface finish ensures accuracy and repeatability • Removable sensor fitting design • Built-in strain relief • Proper electrode clearance reduces possible 01 resin or particle entrapment, critical with 0.01 cell designs • In-line or submersible mounting • PTFE insulatorApplications• Pure Water Treatment* Reverse Osmosis * De-ionization * Distillation• Boiler Condensate• Semiconductor Water Production• Rinse water monitoring and control• Chemical Concentrations• Cleaner and Degreaser Concentrations• TDS• Salinity• USP Purified Water and WFI Water Production

• Ambient Temperature: 0 ° C + 60 " C
• Switching Unit: Micro controller Based.
• Mains Voltage: 65-265 V AC, 50HZ/18-36 V DC
• Power consumption: 2.5 VA
• Safety operation: Field selected switch over for minimum or maximum (FSL/FSH) switching points.
• Switch status display: LED L1 to L4 for four points of level Alarm and L5 for power ON/ timer.
• Features: No moving part, free from maintenance.

Br Instrumentation & Controls are labeled as leading manufacturer, exporter and supplier of conductivity measurement & control systems in India.

conductivity sensors, conductivity transmitter, Dissolved Oxygen Sensors
