Conductivity Transmitters Dealers in Pune

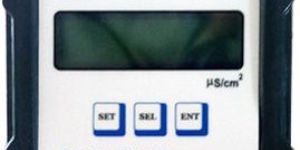

The VATS mhoCounter is yet another step forward to deliver convenience & to the point technology in a compact package. With our experience of a wide range of installations, we came out with easy to fit conductivity / TDS meters. Microprocessor based electronics allow wide operating range and long term signal stability. Optional relays provide control for adjustment or alarms. Also the meter comes with saddle mounting option or standard fittings to adopt to any process flow solution. CT 20 can be used for conductance, TDS signal transmission and display with 4-20 mA O/P. Features:• Easy installation• Display in microS/CM, ppm (TDS)• Customized 4 digit LCD• Weather proof enclosure• Tactile keys on front panel• Easy programming with front panel keys• Branded meter at the most economic price.• Clearly marked terminal labels• 4-20 mA Current O/P

Salient Features :• On-Line measurement.• 2 wire system.• 4-20 mA DC output.• Auto / Manual temperature compensation.• Simple Operating interface with basic pictographs.• Easy installation with per Assembly empty Enclosure & Plug in terminal.• Online Indication through LCD Display.• Protection Class IP- 65.   MicroSet series Micro- CT 211T are Conductivity transmitters used for various industrialapplications. It can accept input from conductivity electrode of cell constant 0.01 / 0.1 / 1 &conductivity signal is transmitted in the form of electrical 4-20 mA signal. The on-lineconductivity indication is provided through LCD. Span/Zero adjustments are easilyaccessible.     Technical SpecificationsType of Input: From Conductivity ElectrodeCell Constant: 0.01 / 0.1 / 1Type of Output: 4 - 20 mA DC, 2 wire IsolatedDisplay: Local display 128X64 COG with backlitCalibration Range: Factory Calibrated0 to 99.99 μS/cm for cell constant 0.010 to 999.99 μS/cm for cell constant 0.10 to 9999.99 μS/cm for cell constant 1Temperature Compensation: Auto / Manual through RTD, Pt 100 sensor for 0-150˚CAccuracy: +/- 0.25% F. S.Isolation: 1.4 KV between Input, Output & Power SupplyPower Supply: 24 V DCPower Consumption: < 50 mWResponse Time: < 500 mSecTemperature Coefficient: +/- 0.01% per ˚CTemperature drift: +/- 0.02% of span per ˚C (zero & span), at 25˚C and 500uS/cmEnclosure: Weather-proof, IP-65Dimensions: 135 (H) x 249 (W) including cable gland x 170 (D) in mm approx.Conduit Entry: 1) ¾" ET 2) ½" NPT (F)Mounting: 2" Pipe Mounting Weight: 1 kg Operating Conditions: Temperature -20 to 75°C / Humidity 5 to 95% non condensing Storage Temperature: -22 to 176°F (-30 to 80°C) Housing: Cast Aluminum with epoxy coating NEMA 4X (IP-65) Digital Communication: HART

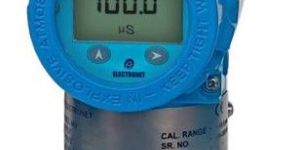

Electronet series CT-100S are Conductivity transmitters used for various industrial applications. It can accept input from conductivity electrode of cell constant 0.01 / 0.1 / 1 & conductivity signal is transmitted in the form of electrical 4 - 20 mA signal. The on-line conductivity indication is provided through LCD. Span/Zero adjustments are easily accessible.

• Brand Name: Baumer
• Conductivity: 14 selectable ranges
• Model: CombiLyz AFI5
• Measuring range: 0-1000 ms/cm
• Max Measuring span: 1000 ms/cm
• Min Measuring span: 500 Mu s/cm
• Reference Temperature: 25 deg C adjustable
• Repeatability: Less than 0.5 % FS , greater than 1 ms/cm
• Compensated Temperature Range: -20 to 150deg C

• Conductivity: 14 selectable ranges
• Min. measurable conductivity: 50 µS/cm
• Max. measuring span: 1000 mS/cm
• Min. measuring span: 500 µS/cm
• Max. measuring error: ± 1.0 % FSR , 0 … 1 mS/cm to 0 … 500 mS/cm ± 1.5 % FSR , 0 … 1000 mS/cm ± 1.5 % FSR , 0 … 500 µS/cm
• Reference temperature: 25 °C , adjustable
• Repeatability: < 0.5 % FSR ,> 1 mS/cm
• Compensated temperature range: -20 … 150 °C
• Temperature compensation: 0.0 … 5.0 % FSR/K , adjustable
• Step response time: ≤ 2.0 s
• Sample time: ≤ 0.4 s
• Concentration: 4 factory set media
• Customer defined media: Customer defined (30 point lookup table)
• Temperature: Free programmable range
• Measuring range: -20 … 150 °C
• Thermal response time, T90: ≤ 15 s
• Max. measuring error: ± 0.4 K
• Process temperature: -20 … 140 °C , permanent 140 … 150 °C , max. t < 1 h
• Process pressure: ≤ 25 bar
• Connection variants: G 1 A hygienic
• Wetted parts material: PEEK Natura
• Surface roughness wetted parts: Ra ≤ 0.8 µm
• Properties: Universal commands Common-practice commands Conductivity device family commands Device Specific Commands For more information please see ‚HART Field Device Specification‘
• Protocol: HCF standard, Rev.7
• IO-Link version: 1.1
• Device profile: Smart Sensor Profile
• Baud rate: 38,4 kbaud (COM2)
• Cycle time: ≥ 8,4 ms
• Process data length: 128 bit
• SIO-mode: Yes
• Process data (cyclic): Switch state Signal analog output 1 Signal analog output 2 Temperature Unit temperature Conductivity Concentration Actual measuring range
• Degree of protection (EN 60529): IP 67 IP 69K , with appropriate cable
• Cable lengths: 10.0 m 5.0 m 2.5 m
• Material: PUR
• Temperature: -40 … 80 °C
• EMC: EN 61326-1
• Hygiene: 3-A (74-07) EHEDG EL Class I FDA (21 CFR 177.2415)
• Safety: cULus listed, E491206

The Model 2000XTC Transmitter resets the standard for thermal conductivity detector based applications within the process control industry. As an intrinsically safe transmitter, packaged within a rugged, weatherproof housing, the 2000XTC is suitable for use in harsh, hazardous outdoor environments. Using a novel, solid-state thermal conductivity sensor, this cost-effective transmitter can be configured to detect H2, He, N2, Ar, CO2 or a number of other gases of interest in binary or multi-component sample gas mixtures.   Features • Customer selectable gas constituents; 11 gases, 110 combinations• Automatic linearization• Auto-ranging with manual override to lock into specific range• Alphanumeric display which prompts and informs operator• Auto and remote initiated calibration capabilities• Bi-directional RS-232 serial digital communication port• Extensive self-diagnostic capabilities• 2 x programmable concentration alarm and system failure alarm relays

Field Mounted PH Indicating Transmitters, Table Top pH Meter Microprocessor

conductivity transmitter, electrical transducer, Twilight Switch

conductivity transmitter, conductivity sensors, Dissolved Oxygen Sensors
